- Inlet flange: 63 ISO-K
- Pumping speed : 90 l/s
- Ultimate pressure: 8 x 10-8 mbar
- DIVAC 3.0 Diaphragm pump
Shopping Cart ( )

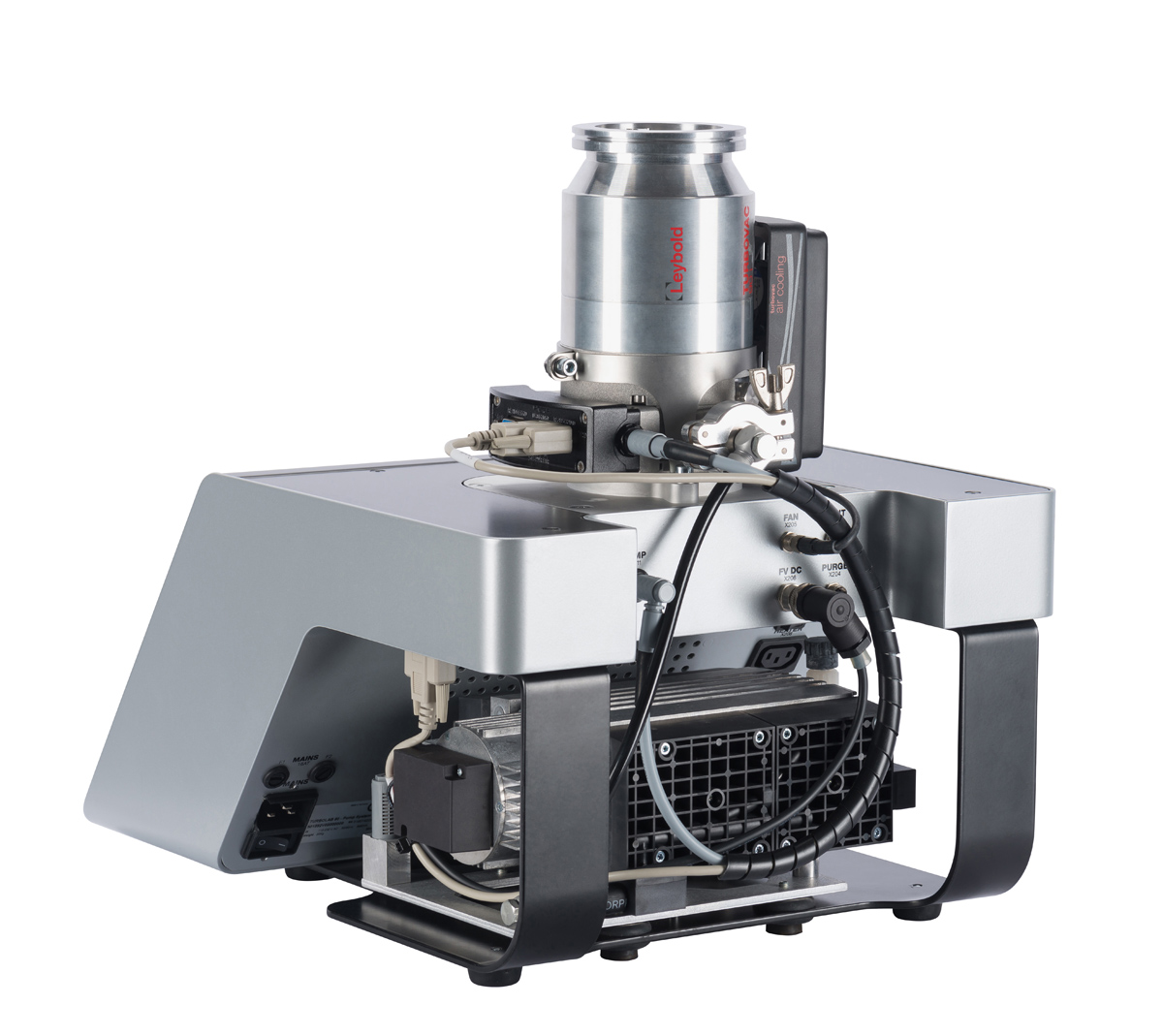

Leybold Turbolab 90i Turbo Pumping Station, Includes Turbovac 90i Turbo Pump (DN 63 ISO-K), DIVAC 3.0T Diaphragm Pump, 501592V00001000
Condition:
New
In Stock
Item#:PN24457
Mfr Part#:501592V02000000
Manufacturer:Leybold
Features:
Leybold Turbolab 90i Turbo Pumping Station, Includes Turbovac 90i Turbo Pump (DN 63 ISO-K), DIVAC 3.0T Diaphragm Pump, 501592V00001000
Leybold Turbolab 90i Features:
- Compact modern mobile design
- Enhanced pumps performance
- Turbolab 90i comes with ISO 63-K inlet flange
- Small Footprint
- Turbolab 90i system has a Backlight Display
- Easy to relocate pumps out and away from the system frame
- Covering more applications with a full range of high vacuum and dry or wet forevacuum pumps
- Features dedicated ports for the connection of six different accesories and two Leybold Vacuum Gauges
- Outstanding performance under loads
Turbolab 90i / 501592V00001000 Overview:
The Leybold Turbolab 90i Turbo Pumping Station is a fully portable, bench top turbo system based on well known Leybold Vacuum components. for many of the High Vacuum Applications. Leybold TurboLab Station comes completely preassembled with Turbovac 90i Turbo Pump.
Leybold Turbolab 90i is equipped with Leybold Divac 3.0T diaphragm pump.

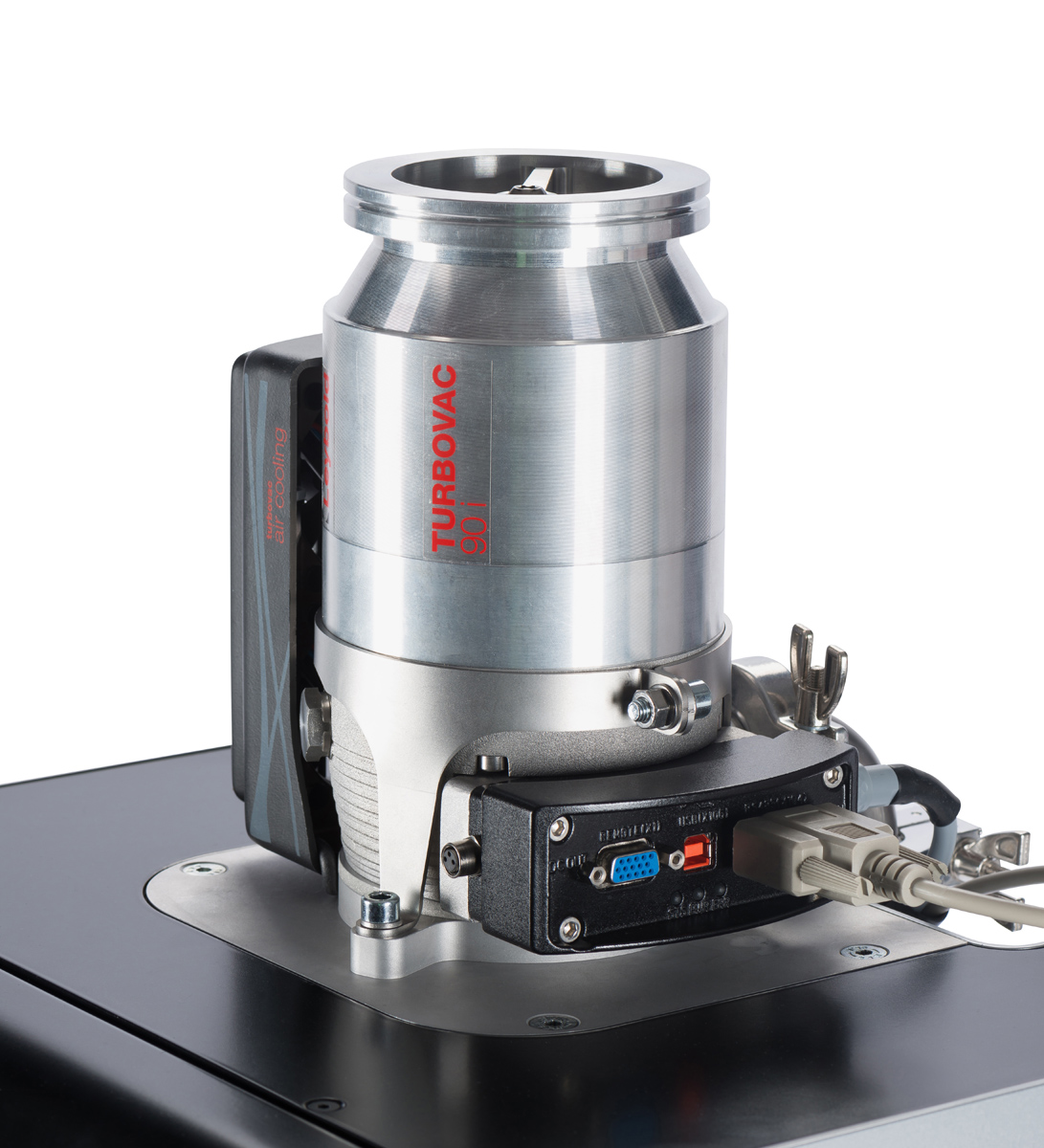

The Leybold Turbovac Station has a state of the art design with the latest Turbovac 90i Turbo pump and dry backing pumps technology.
TurboLab 90i Pumping System is equipped with Monitoring and Data Analysis feature. All critical system parameters and settings are logged to an internal memory automatically based on default time interval which you the user can change very easily.
Opening the trend view on your laptop or mobile device will display the events overtop of your trended parameter. This allows you to quickly compare the data surrounding your system events, which helps to diognosis conditions that effects your system.
Turbolab90i Applications:
- Analytical Instrumentation
- Leak Detection
- Tube Manufacturing
- Research, Development and Scientific
- Micro balances
- Electron-beam welding
- Solar Research
- Laboratories
- Surface physics
A&J Vacuum also repair / rebuild and service all Leybold Turbolab Turbo Pumping Systems along with all other Leybold Vacuum Rotary Vane Pumps, Leybold Dry Pumps, Leybold Leak Detector Repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold Turbolab 90i Turbo Pumping Station, Includes Turbovac 90i Turbo Pump (DN 63 ISO-K), DIVAC 3.0T Diaphragm Pump, 501592V00001000
Leybold Turbolab 90i Technical Data:
Backing Pump: Divac 3.0 Dry Diaphragm Pump
Inlet Flange: 63 ISO-K
Mains Requirement: 110 V / 230 V, 50/60 Hz
Power consumption VA 350
Pumping Speed Backing Pump at 50 Hz: 3.0 m3/h
Pumping Speed for N2: 90 l/s
Pumping Station Components: Turbovac 90i, DIVAC 3.0T
Ultimate Pressure: < 1 x 10-8 mbar
Weight: 20 kg / 32 lbs
A&J Vacuum also repair / rebuild and service all Leybold Turbolab Turbo Pumping Systems along with all other Leybold Vacuum Rotary Vane Pumps, Leybold Dry Pumps, Leybold Leak Detector Repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
