Leybold Turbolab Core 90i Turbo Pumping Station, Includes Turbovac 90i Turbo Pump (DN 40 KF), DIVAC 1.4T Diaphragm Pump, 501591V02000500
Leybold Turbolab Core 90i Features:
- Simple Compact design
- Enhanced pumps performance
- Turbolab Core 501591V02000500 comes with DN 40 KF Inlet flange
- Small Footprint
- Turbolab Core has a Backlight Display
- Easy to relocate pumps out and away from the system frame
- Cost effective
- Features dedicated ports for the connection of accesories and two Leybold Vacuum Gauges
- Outstanding performance under loads
Turbolab Core 90i / 501591V02000500 Overview:
The Leybold Turbolab 90i Core Turbo Pumping Station is a fully portable, simple bench top turbo pump pumping system based on well known Leybold Vacuum components. For many of the High Vacuum Applications. Leybold TurboLab Core Station comes completely preassembled with Turbovac 90i Turbo Pump with DN 40 KF Inlet Flange.
Leybold Turbolab 501591V02000500 is equipped with ScrollVac Divac 1.4 Diaphragm Pumps.
The Leybold Turbovac 90i Core Station has a state of the art design with the latest Turbovac 90i Turbo pump and dry diaphragm backing pumps technology.
Leybold TurboLab Core 90i Turbo Pumping System is equipped with Monitoring and Data Analysis feature. All critical system parameters and settings are logged to an internal memory automatically based on default time interval which you the user can change very easily.
Opening the trend view on your laptop or mobile device will display the events overtop of your trended parameter. This allows you to quickly compare the data surrounding your system events, which helps to diognosis conditions that effects your system.
Please note: Mains Cable is not included. Please see accessories tab for proper mains cable.
TurbolabCore90i Applications:
- Analytics
- High and Ultra high vacuum systems
- Research, Development and Scientific
- Micro balances
- Electron-beam welding
- Laboratories
- Surface physics
A&J Vacuum also repair / rebuild and service all Leybold Turbolab 90i Core Turbo Pumping Systems along with all other Leybold Vacuum Rotary Vane Pumps, Leybold Dry Pumps, Leybold Leak Detector Repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold Turbolab Core 90i Turbo Pumping Station, Includes Turbovac 90i Turbo Pump (DN 40 KF), DIVAC 1.4T Diaphragm Pump, 501591V02000500
Leybold Turbolab Core 90i Technical Data:
Backing Pump: Divac 1.4 Dry Diaphragm Pump
Inlet Flange: 40 KF
Mains Requirement: 110 V / 230 V, 50/60 Hz
Power consumption VA 350
Pumping Speed Backing Pump at 50 Hz: 0.80 m3/h
Pumping Speed for N2: 90 l/s
Pumping Station Components: Turbovac 90i, DIVAC 1.4
Ultimate Pressure: < 1 x 10-8 mbar
Weight: 26 kg
A&J Vacuum also repair / rebuild and service all Leybold Turbolab 90i Core Turbo Pumping Systems along with all other Leybold Vacuum Rotary Vane Pumps, Leybold Dry Pumps, Leybold Leak Detector Repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold Turbovac 90i 250i 350i 450i Operation Manual
Leybold TURBOVAC 90i 250i 350i 450i

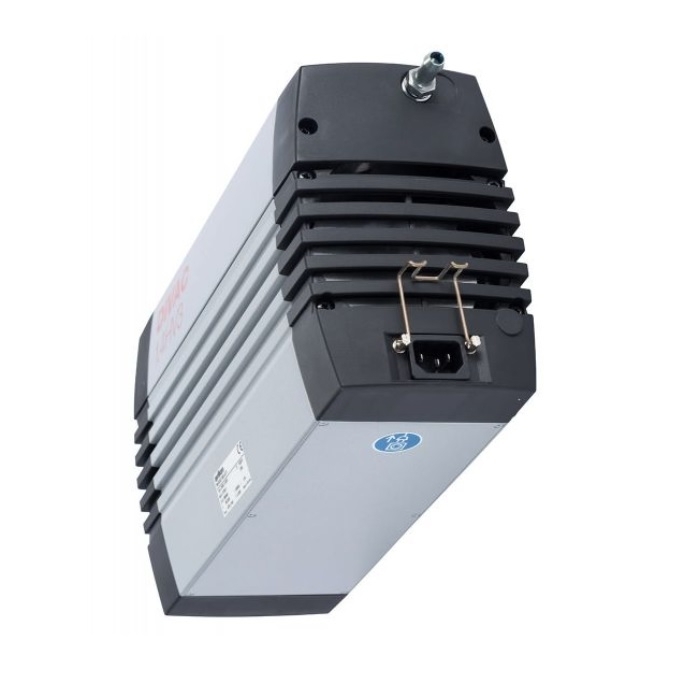

Leybold DIVAC 1.4 HVC Diaphragm Pump
|
