Edwards nXDS6iC Dry Scroll Vacuum Pump, Corrosive, 3.6 CFM / 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A73502983
Item#: PN15783 Mfr Part#: A73502983 Manufacturer: Edwards Vacuum
Condition: New In Stock
New Edwards nXDS6 iC Dry Scroll Vacuum Pump, Corrosive, 3.6 CFM 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A735-02-983, 73502983 EDWARDS NXDS 6iC

Features:
  • Ultimate Vacuum: 0.020 mbar
  • Inlet Flange: NW 25
  • Exhaust Flange: NW 25
  • Pumping Speed 3.6 CFM

PRICE: $8,491.00
WEB SAVINGS: $1,698.20
YOU PAY: $6,792.80
Item#: PN15783 Mfr Part#: A73502983
Edwards nXDS6iC Dry Scroll Vacuum Pump, Corrosive, 3.6 CFM / 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A73502983
Item#: PN15783 Mfr Part#: A73502983 Manufacturer: Edwards Vacuum 12 months warranty

Edwards nXDS6 iC Dry Scroll Vacuum Pump, Corrosive, 3.6 CFM 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A735-02-983, 73502983 EDWARDS NXDS 6iC



Edwards nXDS 6iC Overview:


The Edwards nXDS6iC is the next generation in completely oil free, dry scroll pumps and replaces the Edwards nXDS6iC

Edwards nXDS6iC improves on legacy XDS series pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise.  Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.

Edwards nXDS6iC pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes.  Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally.  Edwards nXDS6iC pumps are designed to be completely field serviceable.

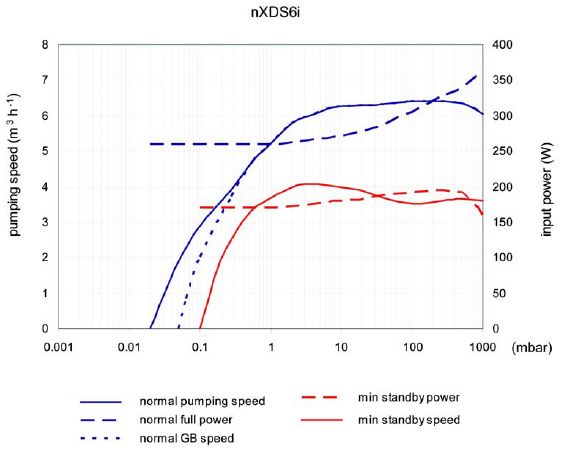

Edwards nXDS 6iC Characteristic:


Edwards nxds6i characteristic



Edwards nXDS 6iC Features:


  • Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
  • Thermaly controlled fan for reduced noise
  • No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
  • Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
  • Improved motor and drive efficiencies for reduced power and cost of ownership
  • Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485

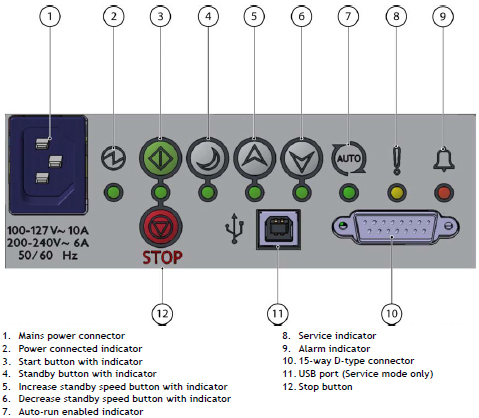

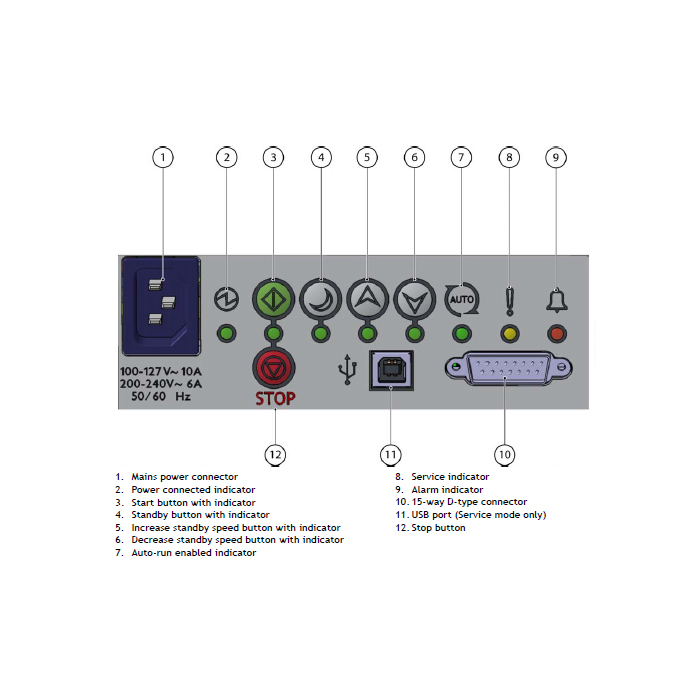

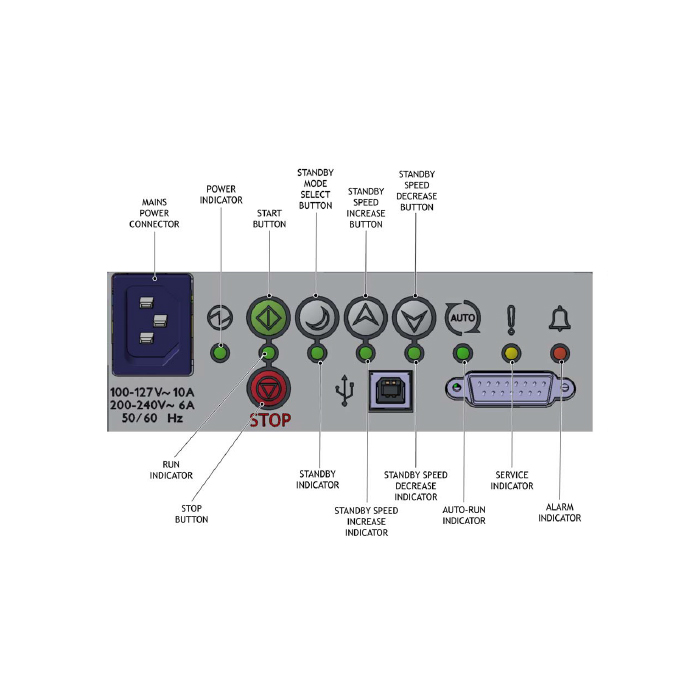

Edwards nXDS 6iC Front Panel:


Edwards nxds6i front panel, A73501983





Edwards nXDS 6iC Dimensions (mm):


Edwards nxds6i Dimensions, A73501983



Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:





Click here for Edwards nXDS6iC Operation Manual A73502983  https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf

Click here for Edwards nXDS6iC Dry Scroll Vacuum Pump Broshure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf


A&J Vacuum Repair / Rebuild and Service Varian EDWARDS NXDS  SCROLL  PUMPS, XDS Pumps  and  all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps  repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Edwards nXDS6 iC Dry Scroll Vacuum Pump, Corrosive, 3.6 CFM 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A735-02-983, 73502983 EDWARDS NXDS 6iC



Edwards nXDS 6iC Technical Data:


Inlet Flange:

NW 25

Exhaust Flange:

NW 25

Rotational Speed:

1800 rpm

Input Voltage:

100-127, 200-240

Voltage Frequency:

50/60 Hz

Pumping Speed:

6.2 m3h-1

Total Pressure:

0.020 mbar

Weight:

26.2 kg / 58 lbs



Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:





Click here for Edwards nXDS6iC Operation Manual 73502983  https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf

Click here for Edwards nXDS6iC Dry Scroll Vacuum Pump Broshure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf


A&J Vacuum Repair / Rebuild and Service Varian EDWARDS NXDS  SCROLL  PUMPS, XDS Pumps  and  all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps  repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or Click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
