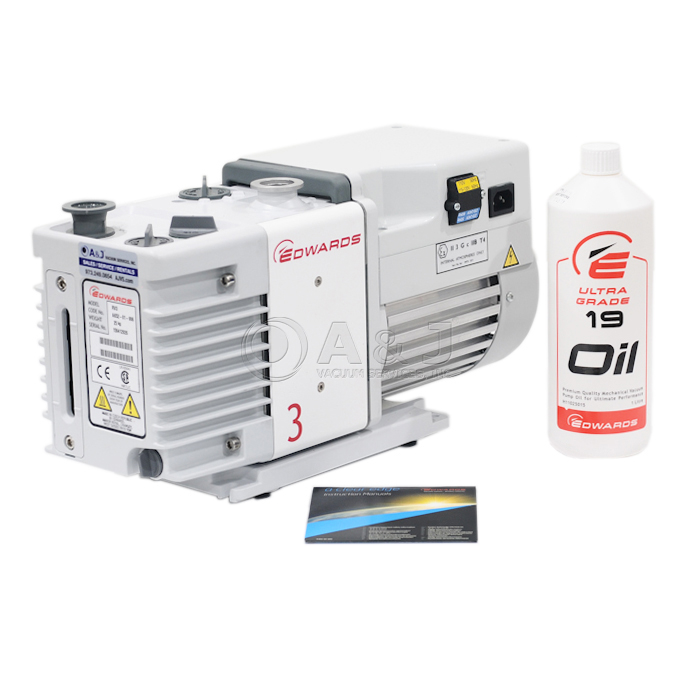

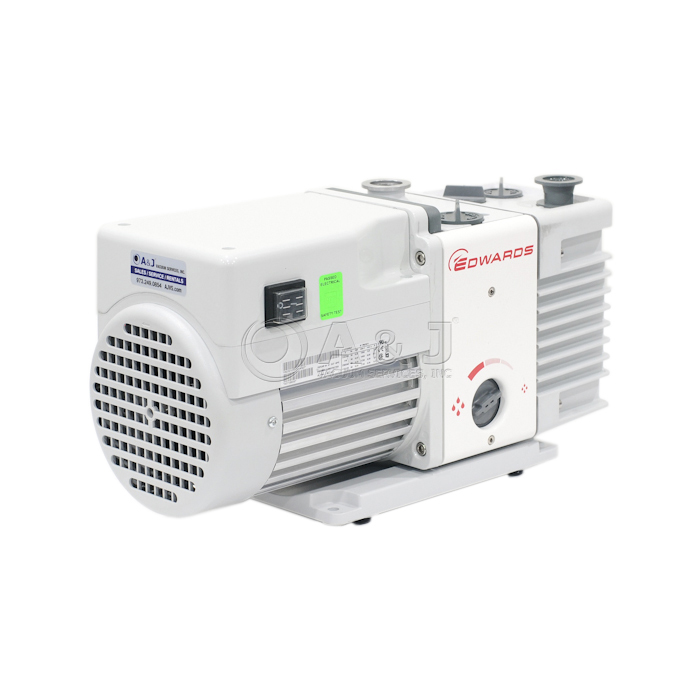

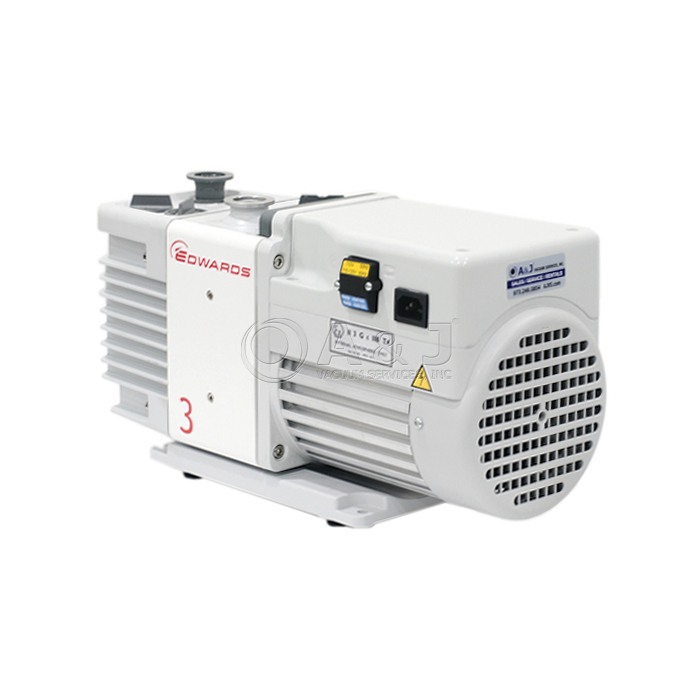

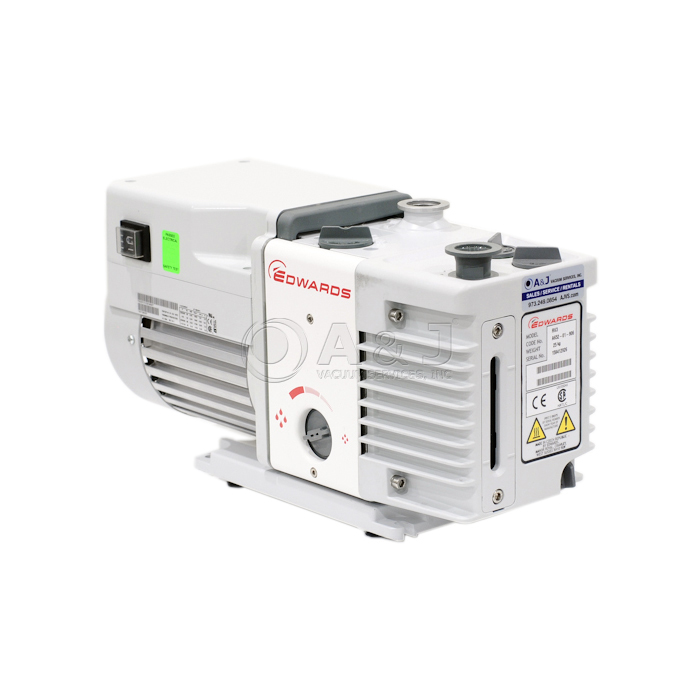

Edwards 3 RV3 Vacuum Pump, Single Phase, 115/230 V, 50/60 Hz, Factory set to 115V for USA, Hydrocarbon Oil, A65201906
Item#: PN18128 Mfr Part#: A65201906 Manufacturer: Edwards Vacuum
Condition: New In Stock
New Edwards 3 RV3 Vacuum Pump, Single Phase, 115/230 V, 50/60 Hz, Factory set to 115V for USA, Hydrocarbon Oil, A65201906

Features:
  • Ultimate pressure: 2 x 10-3 mbar
  • Pumping speed (50 Hz): 3.3 m3h-1
  • Inlet flange: NW 25
  • Noise level: 48 dB(A) at 50 Hz

PRICE: $3,836.00
WEB SAVINGS: $767.20
YOU PAY: $3,068.80
Item#: PN18128 Mfr Part#: A65201906
Edwards 3 RV3 Vacuum Pump, Single Phase, 115/230 V, 50/60 Hz, Factory set to 115V for USA, Hydrocarbon Oil, A65201906
Item#: PN18128 Mfr Part#: A65201906 Manufacturer: Edwards Vacuum 12 months warranty

Edwards RV3 Vacuum Pump, Single Phase, 115/230 V, 50/60 Hz, Factory set to 115V for USA, Hydrocarbon Oil, A652-01-906, Edwards RV-3 A65201906



Edwards RV3 Overview:


Edwards RV3 are proven to be a leading vacuum pumps throught out vacuum pump industry.

Edwards RV3 / A65201906 pump sets new standards for laboratory vacuum pumps, proven pump performance and outstanding quality speaks for itself.

RV3 pump offers following features;

  • Adjustable gas ballast - Excellent water vapor handling capacity

  • Patented Inlet Valve - offers smooth opening and fast closing

  • Integral air bleed - offers quiet operation

  • RV Series pump is equipped with Wide Range Voltage Motors - All major countries covered.

  • Motor on/off switch.

  • Patented Vacuum mode switch - High Vacuum or throughput in one pump

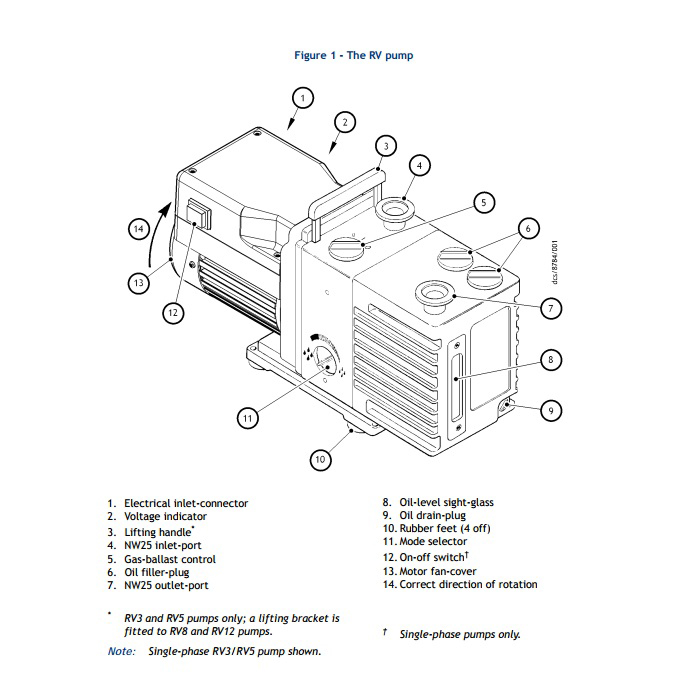

Edwards RV3 Diagramph, A65201906

Edwards RV Series Pumps are significantly quieter – noise levels of 48 dBA 50Hz are typically half the noise of a conventional pump and have been achieved by extensive work on the drive train and motor.

The RV3 pumps have the unique ability to deliver excellent ultimate vacuum in both high vacuum and high throughput modes with or without gas ballast. This gives the user an unrivalled opportunity to select the optimum pumping performance without compromising the application.

In its high vacuum mode, the Edwards RV3 pump is ideal for analytical instruments, electron microscopes, physics research, backing turbo pumps and leak detection applications. Configure the same pump in the high throughput mode, and it becomes suitable for distillation, laboratory furnaces, backing vapor pumps, solvent concentration, freeze drying and other drying applications.

The simple to use mode selector and accessible, three-position gas ballast control allow the pump to be reconfigured at any time, even when the pump is running.



Edwards RV 3 pumps have become the industry standard for scientific primary pumping applications. RV3 pumps are uniquely capable of delivering high or low throughputs with high ultimate vacuum. This, combined with ultra-low noise levels, makes them ideal for a wide range of applications including GCMS and other small bench top type applications.



Typical Applications of the Edwards RV Series Rotary Vane Pumps include:


  • Analytical instruments - GCMS
  • Centrifuges, ultra-high speed
  • Vacuum Coating
  • Degassing / curing - oil, epoxy resin
  • Distillation / extraction  / filtration
  • Freeze drying
  • Vacuum Furnaces
  • Gas bottle filling / emptying
  • Gel drying
  • Glove boxes, vacuum ovens
  • Laboratory vacuum pump
  • Helium Leak detectors
  • Load locks and transfer chambers
  • Refrigeration manufacture
  • Refrigeration manufacture
  • Rotary, centrifugal evaporators
  • SEM Scanning electron microscopes
  • Surface science instruments
  • Turbomolecular backing pumps

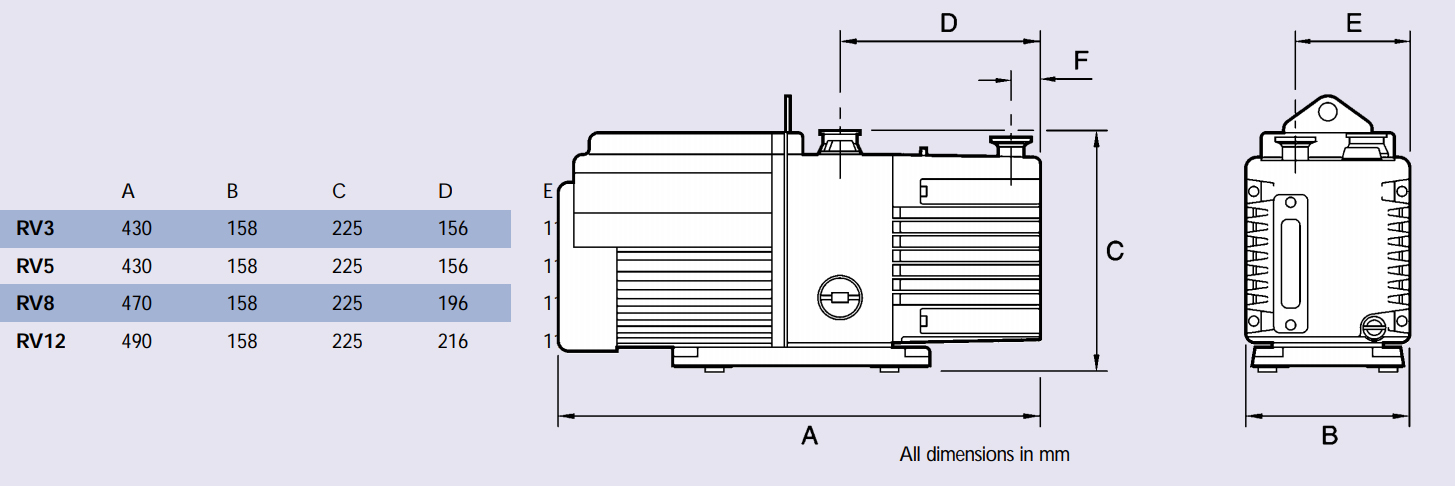

Edwards RV3 Dimensions:


Edwards RV3 Dimensions, A65201906


Click Here to view Edwards RV Series Instruction Manual

Click Here to view Edwards RV Series Manufacturer Brochure


A&J Vacuum also repair / rebuild and service all Edwards RV3 / A652-01-906 RV5, RV8, RV12, E2M2, E2M5, E2M8, E2M12 Series  Vacuum Pumps  along with all other Edwards  Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Edwards RV3 Vacuum Pump, Single Phase, 115/230 V, 50/60 Hz, Factory set to 115V for USA, Hydrocarbon Oil, A652-01-906, Edwards RV-3 65201906

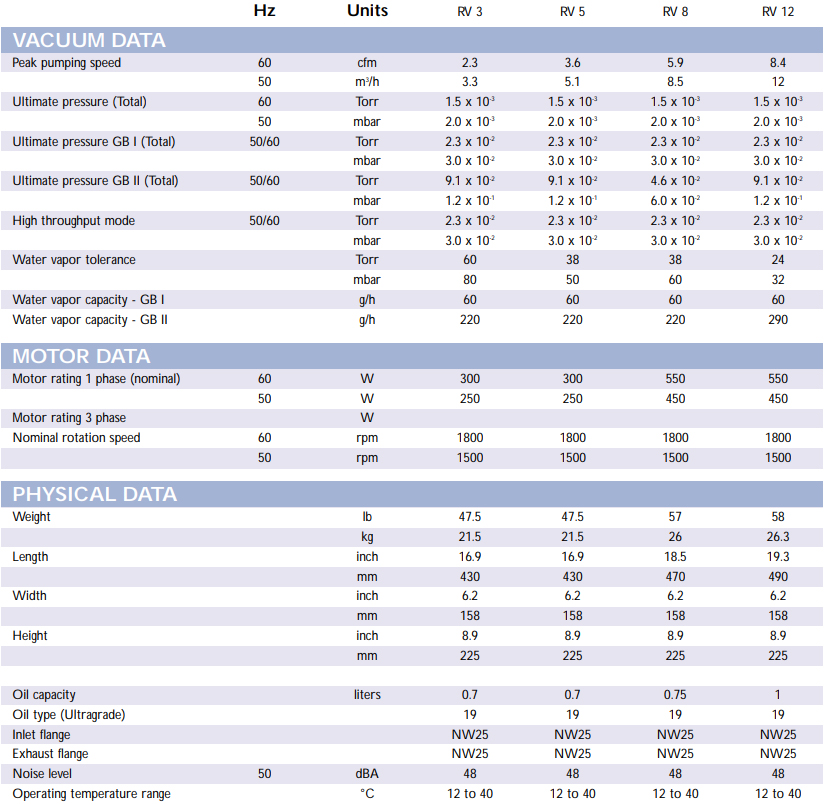

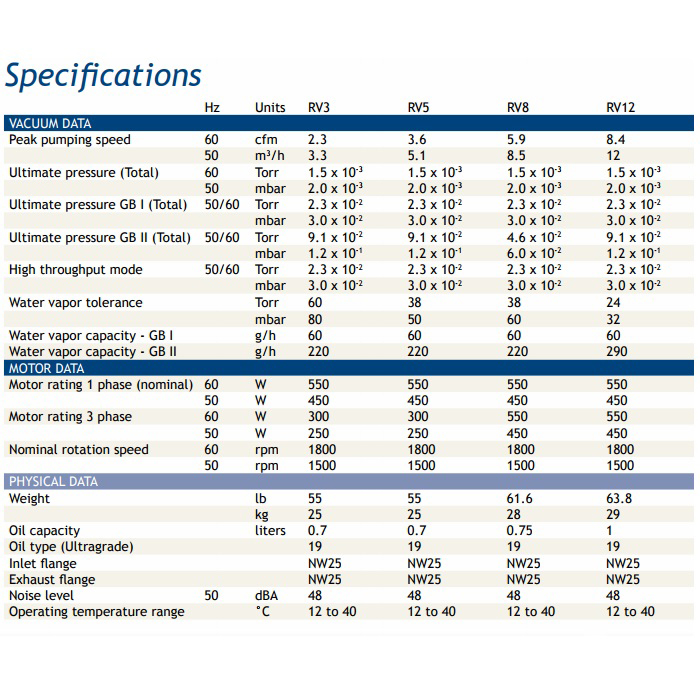

Edwards RV3 Technical Data:


Edwards RV3 Technical Data, A65201906


Click Here to view Edwards RV Series Instruction Manual

Click Here to view Edwards RV Series Manufacturer Brochure


A&J Vacuum also repair / rebuild and service all Edwards RV3 / A652-01-906 RV5, RV8, RV12, E2M2, E2M5, E2M8, E2M12 Series  Vacuum Pumps  along with all other Edwards  Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Name
Price
>
$1,995.00
>

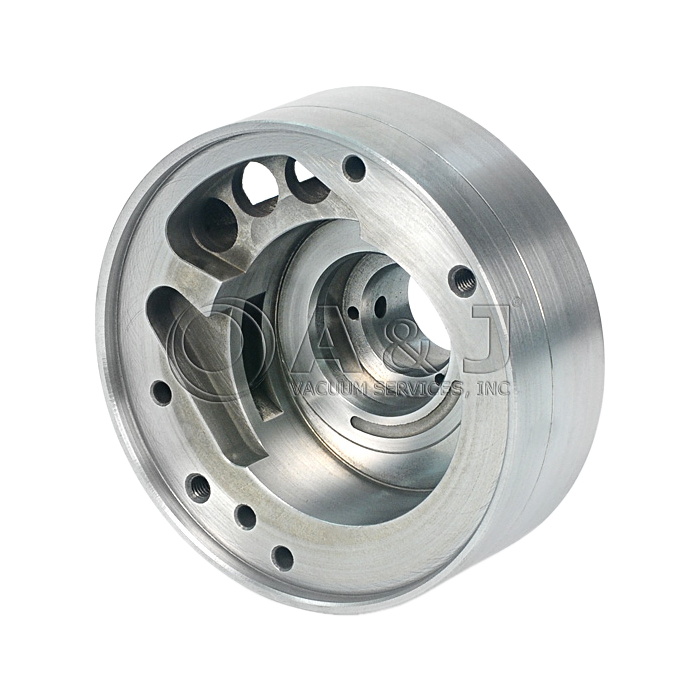

Item#:
