Edwards EMF 20 Oil Mist Exhaust Filter, Includes Mist Element and Odor Element, A46229000
Item#: PN00844 Mfr Part#: A46229000 Manufacturer: Edwards Vacuum
Condition: New In Stock
New Edwards EMF20 Oil Mist Exhaust Filter, Includes Mist Element and Odor Element, A46229000

Features:
  • Inlet / Outlet Flange: NW 25
  • Rated Flow: 20 m3h-1
  • Odor Filter Element: Activated carbon
  • Mist Filter Element: Epoxy impregnated borosilicate glass fibre

PRICE: $875.00
WEB SAVINGS: $125.00
YOU PAY: $750.00
Item#: PN00844 Mfr Part#: A46229000
Edwards EMF 20 Oil Mist Exhaust Filter, Includes Mist Element and Odor Element, A46229000
Item#: PN00844 Mfr Part#: A46229000 Manufacturer: Edwards Vacuum

Edwards EMF20 Oil Mist Exhaust Filter, Includes Mist Element and Odor Element, A46229000



Edwards EMF20 Overview:


Edwards EMF 20 Oil Mist Filters are used to separate and trap oil mist and odors discharged with the exhaust from oil sealed rotary vacuum pumps. The Oil Mist Filters have two-part injection molded plastic bodies which contain a fiber composite oil mist filter and an activated carbon odor filter.

Exhaust gases from the pump travel upwards to the center of the Oil Mist Filter and through the filter element to the outside. Oil droplets that are trapped by the fiber composite element travel down the filter and collect in a reservoir in the base of the Oil Mist Filter.

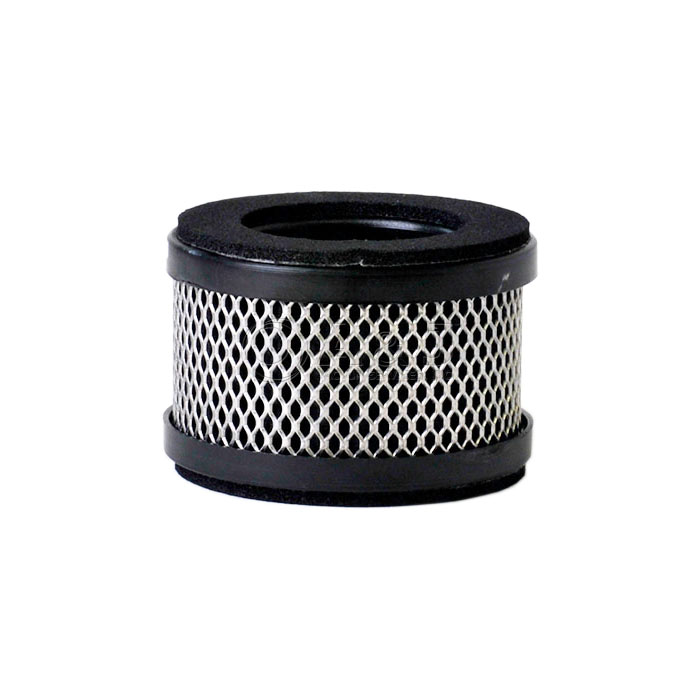

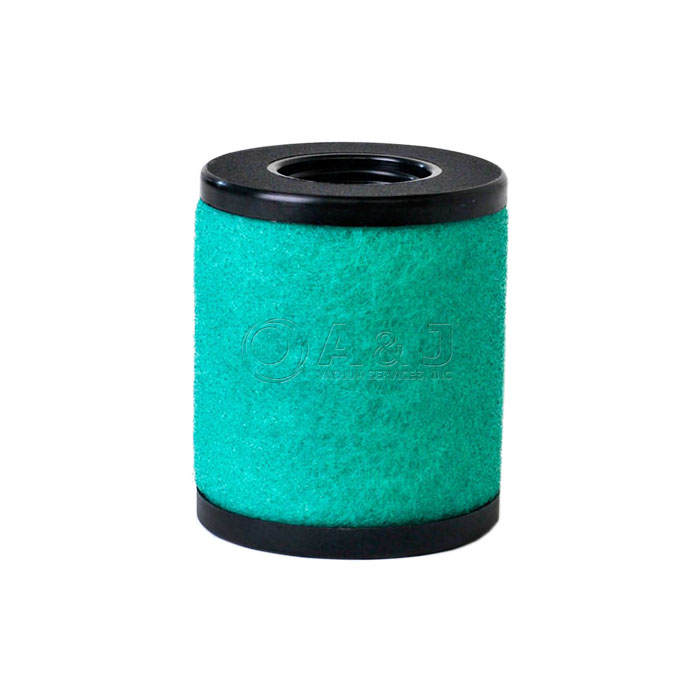

Replacement Filter Elements: A22304077, and A22304199



The Edwards EMF20 Oil Mist Exhaust Filter is designed to be used with the following Edwards Rotary Vane Pumps:


  • Edwards RV12
  • Edwards E1M18
  • Edwards E2M18

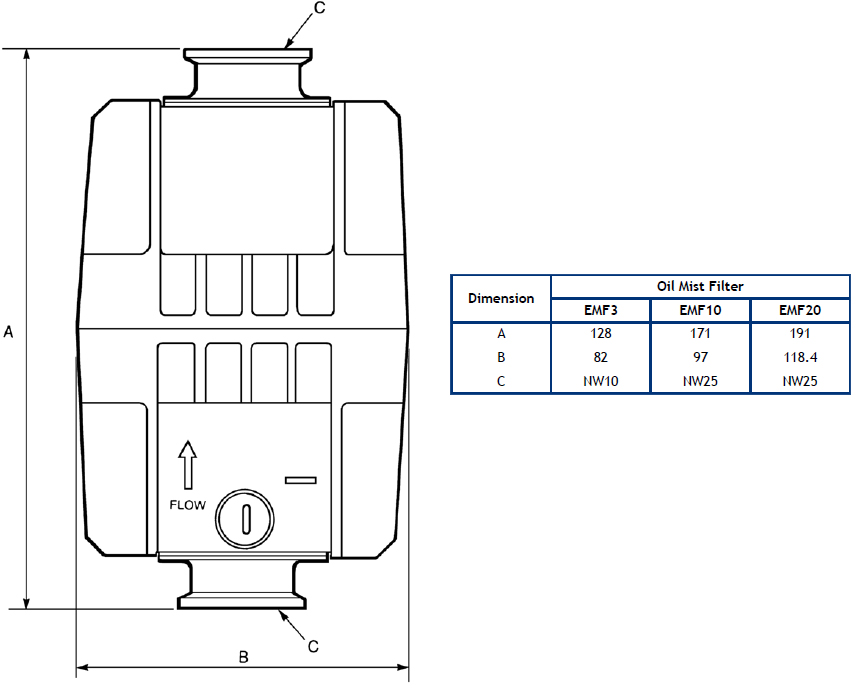

Edwards EMF 20 Dimensions:


Edwards EMF10 Oil Mist Exhaust Filter, Includes Mist Element and Odor Element, A46226000


Click Here for Edwards EMF 20 Manual


A&J Vacuum Services offers full repair/service of Edwards, along with all other brands offered on our website. AJVS also services Edwards rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

Edwards EMF20 Oil Mist Exhaust Filter, Includes Mist Element and Odor Element, A46229000



Edwards EMF 20 Technical Data:


Rated Flow: 20 m3h-1
Maximum Back Pressure: 12 psig
Relief Pressure: 20 psig
Odor Filter Element: Activated carbon
Mist Filter Element: Epoxy impregnated borosilicate glass fibre
Outlet Flange: NW 25
Inlet Flange: NW 25
Ambient temperature range (storage) -10 to 90 °C
Ambient temperature range (operation) 0 to 45 °C
Weight: .5 kg / 1.1 lbs

Click Here for Edwards EMF 20 Manual


A&J Vacuum Services offers full repair/service of Edwards, along with all other brands offered on our website. AJVS also services Edwards rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
