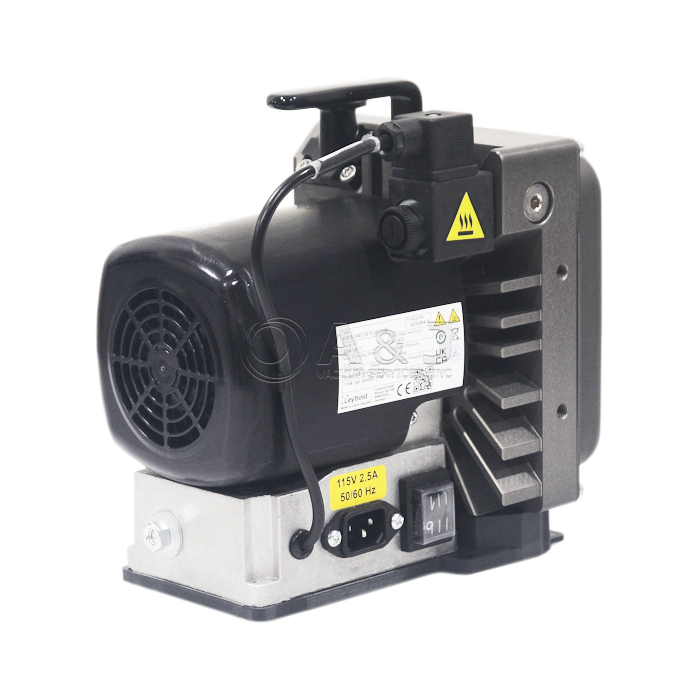

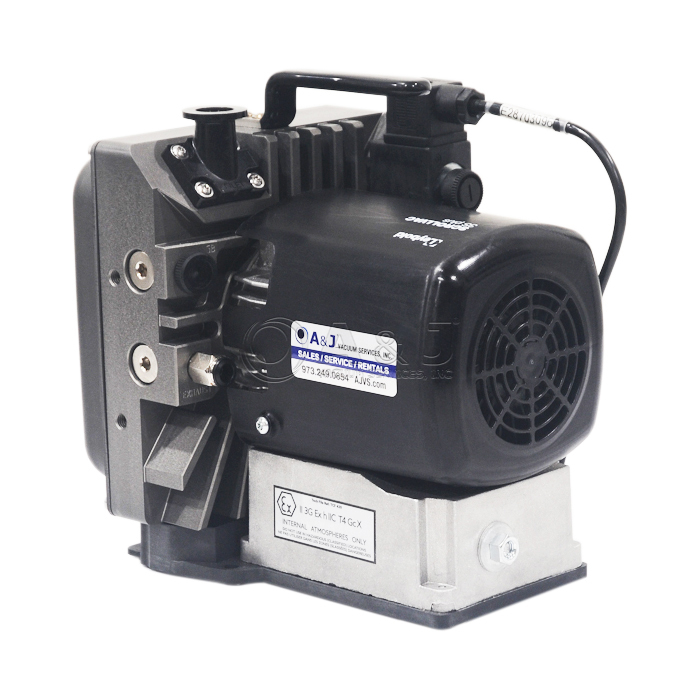

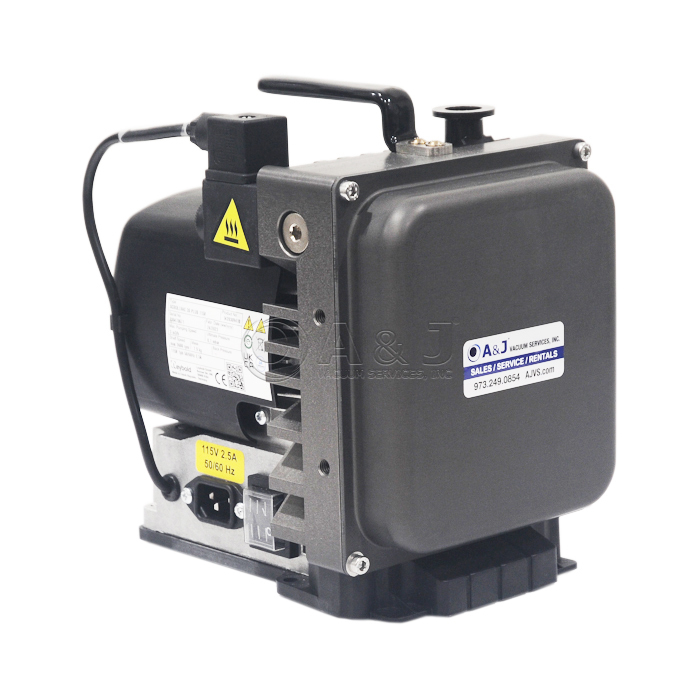

New Leybold Scrollvac 3S Plus Scroll Pump with Inlet Valve, Oil-Free Dry Pump, 1-phase, 50/60 Hz, 115 V, 3.5 m3/h, 142030V410
Item#: PN41098 Mfr Part#: 142030V410 Manufacturer: Leybold
Condition: New In Stock
New New Leybold Scrollvac 3S Plus Scroll Pump with Inlet Valve, Oil-Free Dry Pump, 1-phase, 50/60 Hz, 115 V, 3.5 m3/h, 142030V410

Features:
  • Inlet Flange: DN 25 ISO-KF
  • Pumping Speed: 3.5 m3/h
  • Fast-acting Solenoid Inlet Valve
  • Ultimate Total Pressure: 2.0 x 10‐2 mbar

PRICE: $5,219.00
WEB SAVINGS: $1,043.80
YOU PAY: $4,175.20
Item#: PN41098 Mfr Part#: 142030V410
New Leybold Scrollvac 3S Plus Scroll Pump with Inlet Valve, Oil-Free Dry Pump, 1-phase, 50/60 Hz, 115 V, 3.5 m3/h, 142030V410
Item#: PN41098 Mfr Part#: 142030V410 Manufacturer: Leybold 12 months warranty

New Leybold Scrollvac 3S Plus Scroll Pump with Inlet Valve, Oil-Free Dry Pump, 1-phase, 50/60 Hz, 115 V, 3.5 m3/h, 142030V410



Leybold Scrollvac 3 Plus with auto Inlet Valve / 142030V410 Scroll Pump Overview:


New Leybold Scrollvac 3 dry scroll vacuum pumps offer superior pumping performance in a compact size.

Leybold ScrollVac3 pump is an Ideal Scroll compact vacuum solution for any of your R&D projects. ScrollVac 3 delivers compact size with powerfull performance.

Leybold Scroll Vac 3 Pumps are produced to operate in a broad spectrum of applications;

  • General laboratory
  • Research
  • Universities
  • Small system builders and OEM's
  • Leak Detection
  • General vacuum pumping applications
  • Backing turbo pumps
  • Research and development and many more other vacuum applications.

Leybold Scroll Vac 3 offers Pumping Speed of 3.0 m3/h

The SCROLLVAC 3 plus pump is an very easy to use as it is easy to integrate into your labo set up.

Leybold Scrollvac 3 Pumping Speed:




The new Leybold Scrollvac 3 Plus vacuum pump offers the following features:


  • Oil-free
  • Lightweight compact design
  • Less maintenance
  • Reduced power consumption
  • Quiet work environment
  • Flexible Installation
  • Eliminated risk of contamination: pump bearings isolated from vacuum

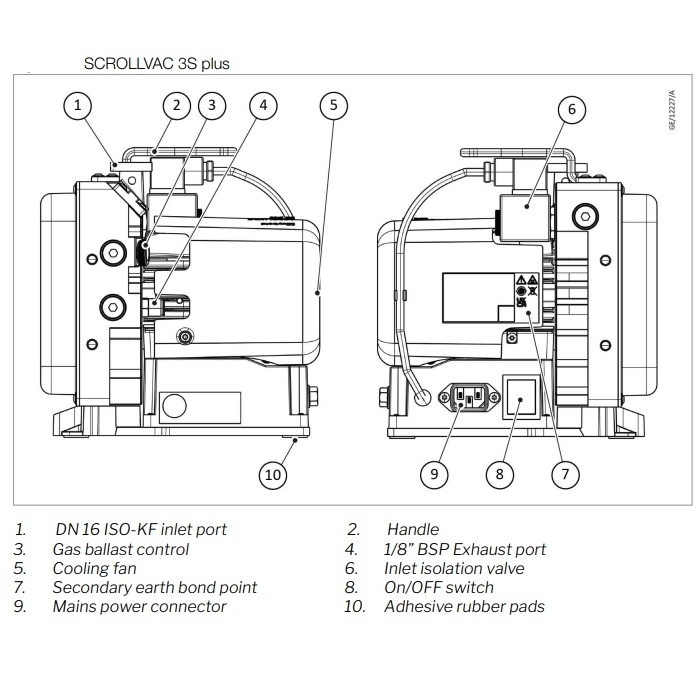

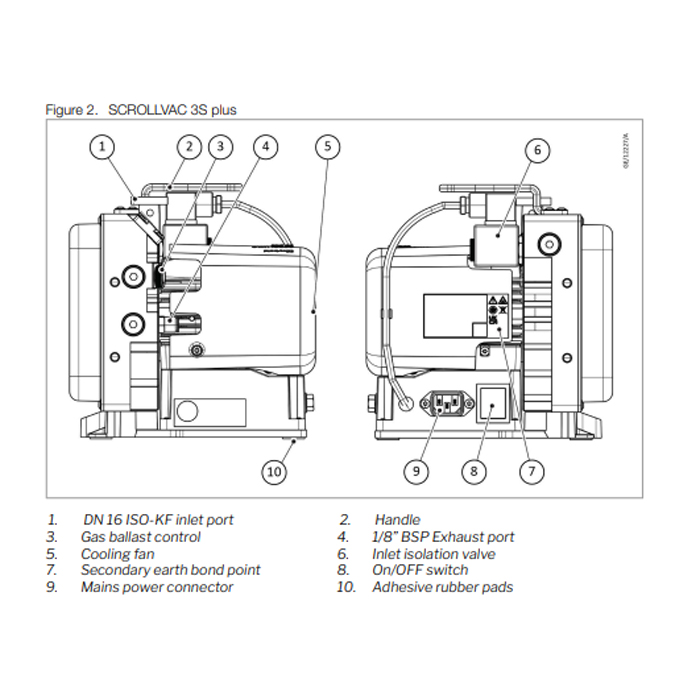

Leybold Scrollvac 3 Dimensions:




Secure Performance of the Scrollvac 3 plus and Scrollvac 3S Plus come fitted with built-in exhaust valve as standard feauture, same as the entire Leybold Scrollvac pump line.

Built-in exhaust valve provides protection from rapid pressure rise in the event of a power failure. For additional equipment protection, the Leybold SCROLLVAC 3S PLUS offers additional a fast acting solenoid innlet valve to isolate your pump from the rest of the system and preserve the vacuum pressure inside your vacuum system. SCROLLVAC 3S plus comes with built-in delay relay which prevents the inlet valve from opening for 10 seconds to allow the pump get up to speed and evacuate itself.







Click Here to view Leybold Scrollvac Operating Manual

Click Here to view Leybold ScrollVac Pump Series Broshure

Click Here to watch Leybold SCROLLVAC plus Family Video


A&J Vacuum repair / rebuild and service all Leybold Scrollvac Vacuum Pumps (3 Plus 142030V310) along with Leybold Scrollvac 1-Phase Vacuum Pumps and other Vacuum Pumps, Leybold Helium Leak Detectors, along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

New Leybold Scrollvac 3S Plus Scroll Pump with Inlet Valve, Oil-Free Dry Pump, 1-phase, 50/60 Hz, 115 V, 3.5 m3/h, 142030V410



Leybold SCROLLVAC 3 Plus with auto Inlet Valve / 142030V410 Scroll PumpTechnical Data:



Click Here to view Leybold Scrollvac Operating Manual

Click Here to view Leybold ScrollVac Pump Series Broshure

Click Here to watch Leybold SCROLLVAC plus Family Video


A&J Vacuum repair / rebuild and service all Leybold Scrollvac Vacuum Pumps (7 Plus 141007V10) along with Leybold Scrollvac 1-Phase Vacuum Pumps and other Vacuum Pumps, Leybold Helium Leak Detectors, along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Leybold Scrollvac 3 and Scrollvac 3S Plus Video
Leybold Scrollvac 3Plus and 3S Plus Features overview
Leybold ScrollVac 3 Plus and Scrollvac 3S Plus Tip seal Replacement Video, How ti Replace a tip seal on a Scrollvac 3 Scroll Pump
Name
Price
>
Price upon request
Price upon request
Price upon request
Name
Price
Item#:
PN18229
Mfr Part#:
800102V1002
$97.00
$222.00
| Service and Repair
We can repair your:
  • Turbo Pumps
  • Rotary Vane Pumps
  • Dry Vacuum Pumps
  • Leak Detectors
  • Scroll Dry Pumps
  • Vacuum Boosters
  • Diaphragm Dry Pumps
You trusted worldwide leader of High Vacuum equipment!
Call us for your free repair estimate!
973-249-0854

A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.

We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.

Repair Steps

  1. Full incoming inspection and run up time check, vibration check, drive inspection.
  2. Full disassembly, decontamination and cleaning.
  3. Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
  4. Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
  5. Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.

Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
