- Inlet flange: DN 100 ISO-K
- Pumping speed : 260 l/s
- Ultimate pressure: < 1 x 10-7mbar
- Backing Pump Pumping Speed 1.8 m3/h
New HiCube 300 Eco Pfeiffer Turbo Pumping Station, Includes HiPace 300 Turbo Pump ISO 100, MVP 030-3 DC Diaphragm Vacuum Pump and DCU 002 Control Unit, PMS7620000, 100-240 VAC 50/60 Hz

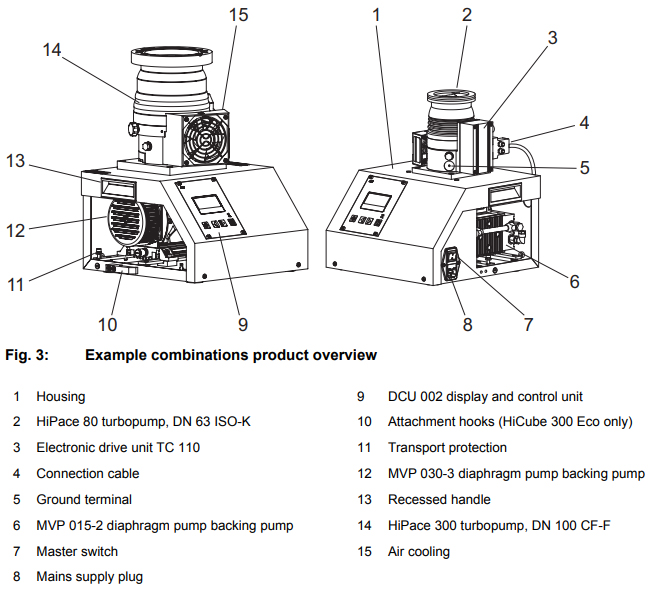

Pfeiffer HiCube 300 Eco Overview
The Pfeiffer Vacuum HiCube300 Eco Turbo Pumping Station is the trully portable and bench top pumping unit for many of the High Vacuum Applications. Also available with CF-F Inlet Flangethat makes this system trully Ultra High Vacuum (UHV).
The Hicube 300 Station has a modern design with the latest turbo pump and electronics technology.
What’s so special about the HiCube vacuum solution: The combination of a turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. We offer you the HiCube in Pro and Classic versions; available with dry compressing or oil-sealed backing pump and an ultimate pressure of up to 5 · 10-10 hPa.
The HiCube Eco turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube Eco can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Eco pumping stations feature connectivity for digital pressure sensors.
All HiCube Eco turbo pumping stations are fitted with particularly energy-efficient backing pumps that have a DC drive. The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load in the
vacuum, the pumping station automatically reduces the backing pump output. This results in maximum energy savings.
Hicube 300 Eco Station Features:
- Compact series of pumping stations for all high vacuum applications
- Available in many configurations to meet every application Click Here for more Info.
- Ultimate Pressure: < 1 x 10-7 mbar
- Pumping Speed for N2: 260 l/s
- Pumping speed backing pump at 50 Hz 1 m3/h
- Air-cooled and ready for operation with HiPace 80 Turbo Pump and MVP 015 Dry Diaphragm Backing Pump
- Pfeiffer HiCube 300 Eco comes with ISO100-K inlet flange
- DCU 002 Control Unit
- HICUBE 300 Eco voltage requirement 100-240 V AC, 50/60 Hz;
- Pumping Station Components: HiPace 300, MVP 030-3 DC, Cooling Fan, DCU 002
- Weight 15.9 Kg / 35.05 lbs
Pfeiffer HiPace 300 Eco Product Description:
Typical High Vacuum Hicube300 Eco Applications:
- Analytical
- Leak Detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy
Pfeiffer HiPace 300 Eco Dimensions:
Click Here for Pfeiffer HiCube 300 Manual
Click Here for Pfeiffer HiPace 300 Manual
Click Here for Pfeiffer MVP 030-3 DC Manual
A&J Vacuum also repair / rebuild and service all Pfeiffer HICUBE 300 ECO Pumping Stations PM S76 100 00, Pfeiffer Turbo Pumps along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
New HiCube 300 Eco Pfeiffer Turbo Pumping Station, Includes HiPace 300 Turbo Pump ISO 100, MVP 030-3 DC Diaphragm Vacuum Pump and DCU 002 Control Unit, PMS7620000, 100-240 VAC 50/60 Hz
Pfeiffer Hicube 300 Technical Data:
| Backing pump | MVP 030-3 |
| Cooling method, standard | Air |
| Flange (in) | DN 100 ISO-K |
| Flange (out) | Silencer, G 1/8" |
| Mains connection: Voltage | 100 – 240 V |
| Mains requirement | 110 – 240 V AC, 50/60 Hz |
| Mains requirement: frequency (range) | 50/60 Hz |
| Mains requirement: power consumption | 270 W |
| Power consumption max. | 270 W |
| Pumping speed backing pump at 50 Hz | 1.8 m³/h | 1.06 cfm | 30 l/min |
| Pumping speed for N2 | 260 l/s |
| Sound pressure level | ≤50 dB(A) |
| Turbopump | HiPace 300 |
| Type | Turbo pumping station |
| Ultimate pressure | < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar |
| Ultimate pressure without gas ballast | < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar |
| Weight | 17.5 kg | 38.58 lb |
Pfeiffer MVP 015-2 DC Technical Data:
| Pumping speed | 1.8 m³/h | 1.06 cfm | 30 l/min |
| Ultimate pressure with gas ballast | ≤ 3 hPa | ≤ 2.25 Torr | ≤ 3 mbar |
| Ultimate pressure without gas ballast | ≤ 2 hPa | ≤ 1.5 Torr | ≤ 2 mbar |
| Flange (in) | G 1/8" |
| Number of pumping stages | 4 |
| Flange (out) | G 1/8” with silencer |
| Motor version | DC motor |
| Current max. | 7,0 A |
| Rated current absorption | 1.5 A |
| Protection category | IP20 |
| Operating altitude, max. | 2000 m |
| Rotation speed | 600-2,400 rpm | 600-2,400 min-1 |
| Cooling method, standard | Convection cooled |
| Ambient temperature | 10-40 °C | 50-104 °F | 283-313 K |
| Temperature: Storage | -10-60 °C | 14-140 °F | 263-333 K |
| Intake pressure max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Exhaust pressure, max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| I/O interfaces | RS-485 |
| Sound pressure level | 48 dB(A) |
| Gas ballast | available as an accessory |
| Weight | 4.3 kg | 9.48 lb |
Click Here for Pfeiffer HiCube 300 Manual
Click Here for Pfeiffer HiPace 300 Manual
Click Here for Pfeiffer MVP 030-3 DC Manual
A&J Vacuum also repair / rebuild and service all Pfeiffer HICUBE 300 ECO Pumping Stations PM S76 100 00, Pfeiffer Turbo Pumps along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
HiCube ECO Turbo Systems broshure
|
