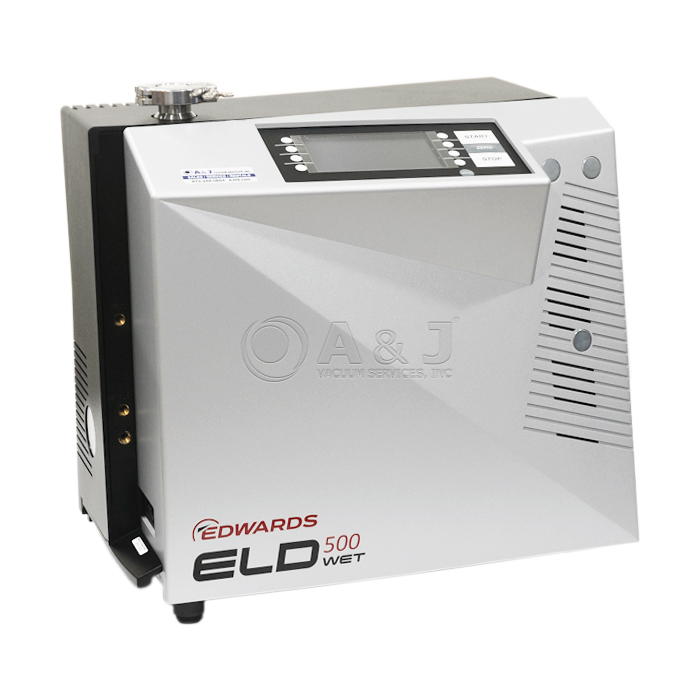

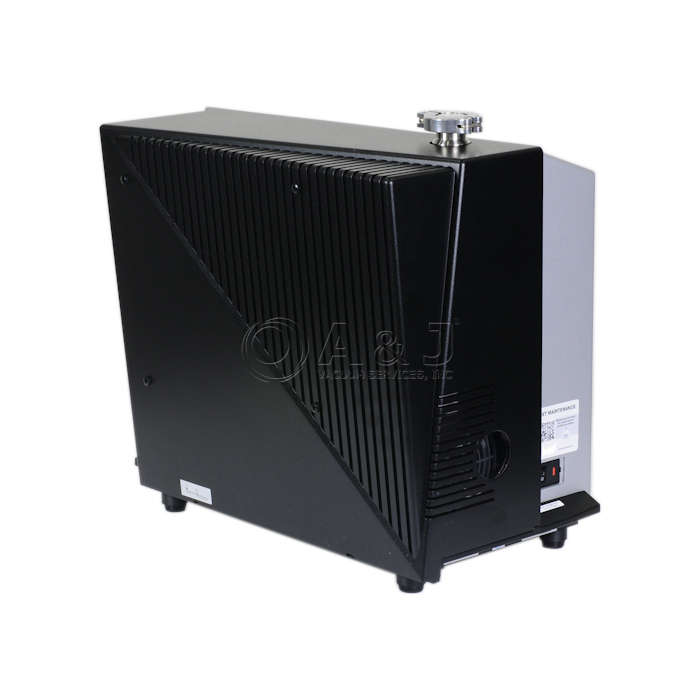

Edwards ELD500 Wet Portable Leak Detector, With Integral Oil Sealed Rotary Vane Pump, 100-120V, 60Hz, US, D13510906
Condition:
New
Item#:PN23588
Mfr Part#:D13510906
Manufacturer:Edwards Vacuum
Features:
Edwards ELD500 Wet Portable Leak Detector, With Integral Oil Sealed Rotary Vane Pump, 100-120V, 60Hz, US, D13510906
Edwards ELD500 Wet Portable Leak Detector Features:

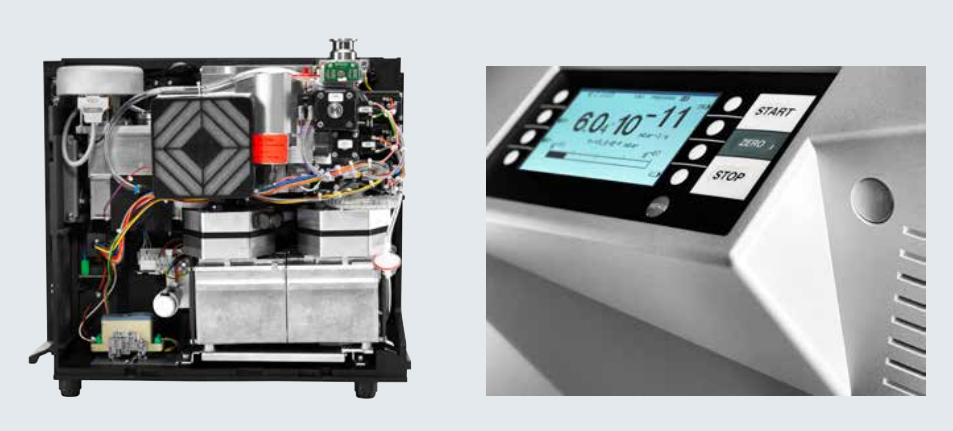

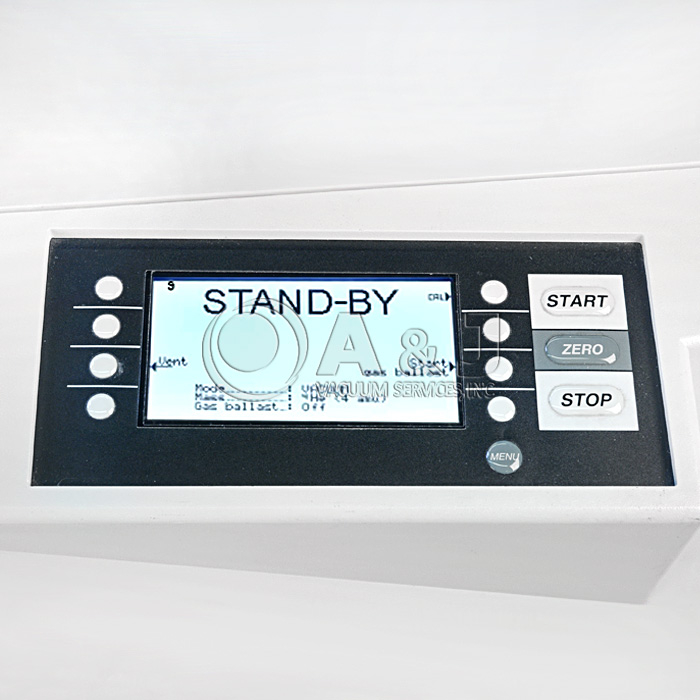

- FLEXIBLE REMOTE CONTROL OPTIONS Colour touch screen control with local graphical display and audible leak detection. Wireless models allow simultaneous control of up to 10 leak detectors.
- MOBILE SOLUTION Low weight and integrated carry handles which allow it to be bench top or trolley mounted.
- HIGH SENSITIVITY Measurement of leaks for Helium of <5x10-12mbar ls-1 in vacuum mode and <7x10-9mbar ls-1 in sniffer mode.
- PARTIAL FLOW KIT Allows effective pump down of large of contaminate flows compatible with WET and FLEX variants.
- ACCURATE PIN-POINTING OF LEAKS Standard sniffer line enables operation up to 4m from the ELD500. Longer sniffer lines of up to 50m can be used with the sniffer extender interface.
- LONG TERM STABILITY Ensured by class leading 180° mass spectrometer.
- WET version with an integrated oil sealed rotary vane pump
- DRY version with an integrated helium optimised diaphragm pump
- FLEX version without a primary pump, ideal for trolley mounting along with a larger primary pump such as an Edwards nXDS scroll pump
ELD500 Wet Portable Leak Detector / D13510906 Overview:
The ELD500 precision leak detector is designed for fast, accurate leak detection in a wide range of applications, fully mobile and with an easy to control interface. Featuring with low energy consumption, extended warranty and even longer life ion source, Edwards ELD500 leak detector ensures exceptional low cost of ownership with no compromise on performance.
Available in three variants: FLEX, WET and DRY, Edwards ELD500 leak detector is versatile. All models feature a rugged turbomolecular pump optimised for the rigours of portable leak detection, ideal across all applications.
Edwards ELD500 Brochure and DataSheet available below.
A&J Vacuum services and repairs Edwards ELD 500 Wet Leak Detector, along with all other Edwards Vacuum Leak Detectors available on our website. Please contact us for information concerning our service and repair program, or click http://www.ajvs.com/service.php to access our Services page. We likewise offer Emergency service and repair upon request. For additional information, Please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier and business partner.
Edwards ELD500 Wet Portable Leak Detector, With Integral Oil Sealed Rotary Vane Pump, 100-120V, 60Hz, US, D13510906

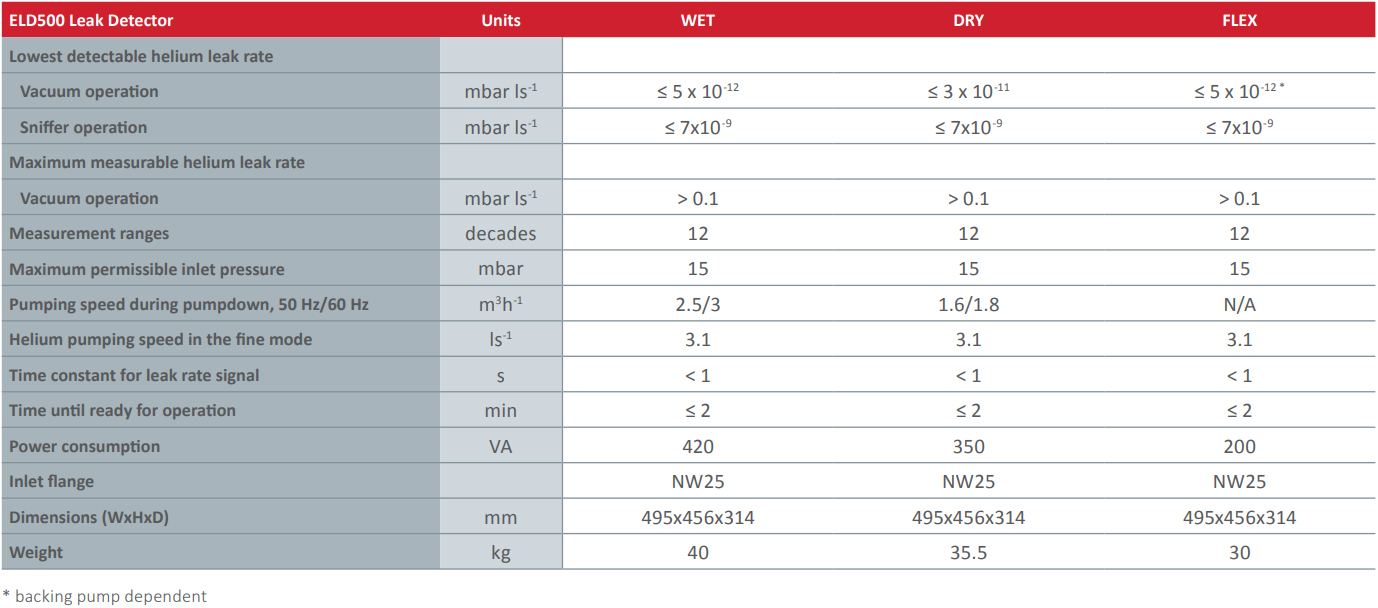

Edwards ELD500 Wet Portable Leak Detector Technical Data:
| Connection Inlet Flange | DN 25 ISO-KF (NW25) |
| Weight | 40.00 kg | 88.2 lb |
| Power Supply Phase | 1-Ph |
| Power Supply Voltage | 1Ph 115V AC +/- 5% 60Hz |

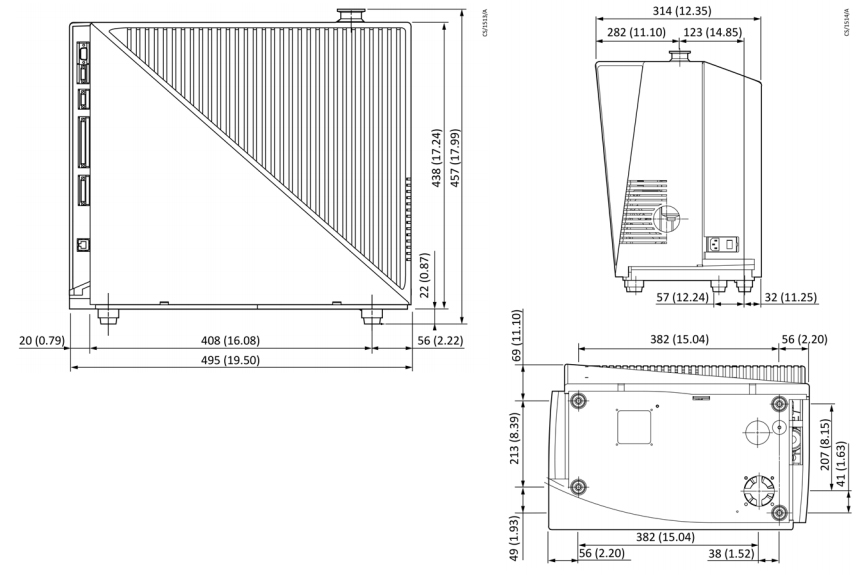

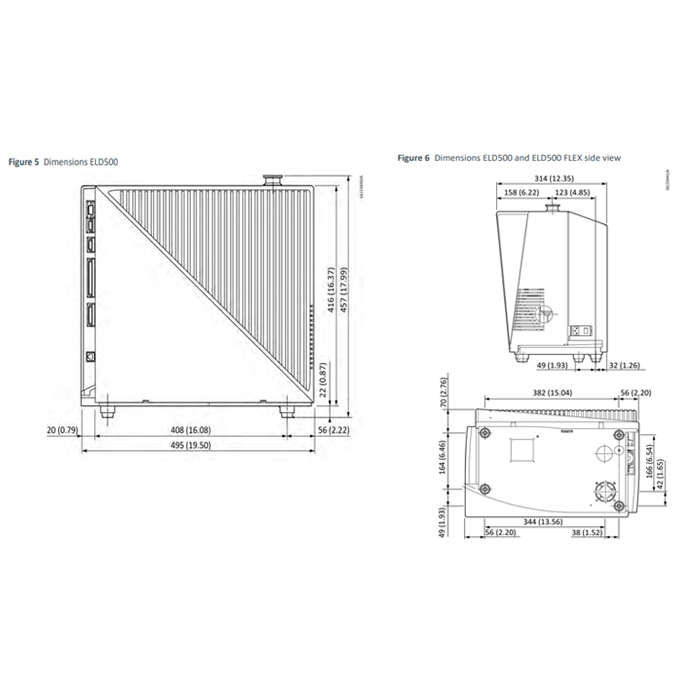

| Dimension Length | 0.495 m | 19.49 in |
| IP Rating | IP40 |
| Power Supply Frequency | 60 Hz |
| Dimension Height | 0.456 m | 17.95 in |
| Dimension Width | 0.495 m | 19.49 in |
| Connector Electrical Power | IEC EN60320 C14 - Male (for C13 plug on mains cable) |
| Cooling Method | Air Cooling (forced - fan) |
| Temperature Ambient Operation Max | 40.00 °C | 104.00 °F | 313.15 K |
| Temperature Ambient Operation Min | 10.00 °C | 50.00 °F | 283.15 K |
| Temperature Ambient Storage Min | -10.00 °C | 14.00 °F | 263.15 K |
| Temperature Ambient Storage Max | 60.00 °C | 140.00 °F | 333.15 K |
| Pressure Absolute Inlet Continous Max | 15.00 mbar |
| Altitude Max | 2000.00 m |
| Pumping Speed Helium in Fine Mode | 3.100 × 10⁻³ m³/s |
| Ramp Up Time | 120.00 s |
| Warm Up Time | 120.00 s |
| Lowest Detectable Leak Rate for Helium (Vacuum | Sniffer) | 5.000 × 10⁻¹³ Pa·m³/s |
| Classification Principle of Measurement | Helium leak detector - sector field mass spectrometer |
| Classification High / Medium / Rough Vacuum pump | High Vacuum Pump |
| Classification Region | US |
