- Max flow: 70 SCFM
- Peak Pumping Speed: 70 cfm
- Max vacuum: 27 in. Hg
- Inlet size: 1 1/2" BSP
Shopping Cart ( )
Becker DVT 3.100 Rotary Vane Pump, Oil-Free, 230/460 V, Complete Module and Motor, G007153 / 4M224G213TC
Condition:
Discontinued
Item#:PN23527
Mfr Part#:G007153 / 4M224G213TC
Manufacturer:Becker
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Becker DVT 3.100 Rotary Vane Pump, Oil-Free, 230/460 V, Complete Module and Motor, G007153 / 4M224G213TC
Becker DVT 3.100 Overview:
The Becker DVT 3.100 dry vacuum rotary vane pumps. The peak pumping speed up to 70 CFM at 60 Hz. DVT 3.100 (G007153 / 4M224G213TC) has the nominal rotation speed 1800 rpm at 60 Hz. The weight of DVT 3.100 is 156 lbs. Noise level DVT 3.100 is 78 dB at 60 Hz. Three phase with main requirement voltage 230/460 Hz at 50/60 Hz.
The Becker DVT 3.60 - 3.140 series pumps are 100% oil free rotary vane vacuum pumps. They are designed to operate on a continuous basis at any point from atmospheric pressure to a vacuum level of 27" HgV.
The DVT series pumps are direct drive units and are supplied with a high efficiency TEFC, C-face, flange mounted electric motor. Each pump is equipped with an integral vacuum relief valve, a 5µ inlet filter, and vibration isolators as standard equipment.
Becker DVT series pumps have a reputation for being exceptionally quiet. These pumps are newly redesigned to make them even quieter, and cooler running than previous units.
These 100% oil-free, dry pumps are ideal for applications where oil or water is objectionable. All Becker DVT pumps use long life, self lubricating graphite composite vanes.
Applications include the graphic arts, packaging, vacuum chucking, robotics and material handling, medical/surgical, and air sampling among others.
Becker DVT 3.100 Features:
- 100% Oil-less operation
- Quiet
- Cool operation
- Long vane life
- Inlet filters included
- Discharge silencers
- Direct drive
- Vacuum regulators included
- Minimal maintenance

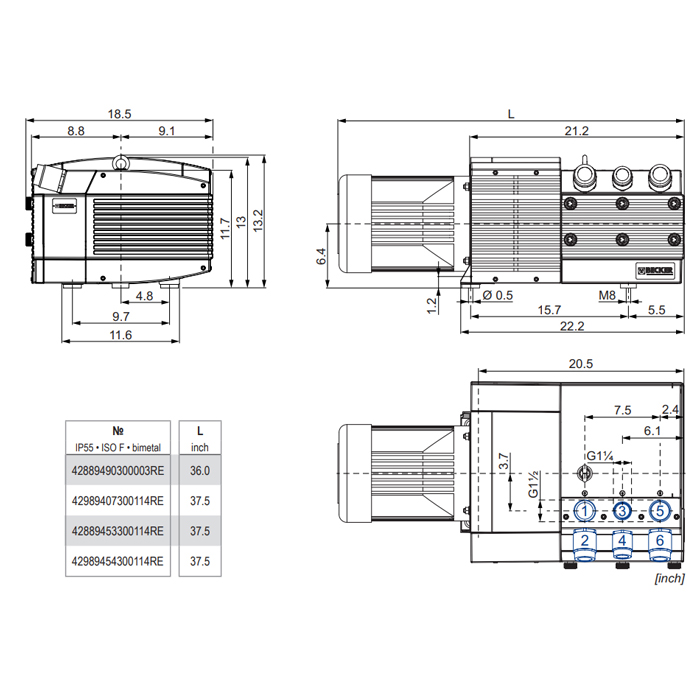

Becker DVT 3.100 Dimensions:
Click Here for Becker DVT 3.100 Data Sheet
A&J Vacuum Services offers full repair/service of Becker Pumps, along with all other brands offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Becker DVT 3.100 Rotary Vane Pump, Oil-Free, 230/460 V, Complete Module and Motor, G007153 / 4M224G213TC
Becker DVT 3.100 Technical Data:
Click Here for Becker DVT 3.100 Data Sheet
A&J Vacuum Services offers full repair/service of Becker Pumps, along with all other brands offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
