- Weight: 49.6 lbs
- Flow: 11 SCFM @ 0 in. Hg
- Max Continuous Vacuum: 25 in. Hg
- Noise Level: 64 dBA
Shopping Cart ( )
Becker VT 4.16 Rotary Vane Pump, Oil-Free, Pump speed 11 CFM, Single Phase, 220-240 V, G008162
Condition:
Discontinued
Item#:PN16171
Mfr Part#:G008162
Manufacturer:Becker
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Becker VT 4.16 Rotary Vane Pump, Oil-Free, Pump speed 11 CFM, Single Phase, 220-240 V, G008162
Becker VT 4.16 Overview:
The Becker VT 4.16 dry vacuum rotary vane pumps. The peak pumping speed up to 11 CFM at 60 Hz. VT 4.16 (G008162) has the nominal rotation speed 1600 rpm at 60 Hz. The weight of VT 4.16 is 49.6 lbs. Noise level VT 4.16 is 61 dB at 60 Hz. Series VT 4.16 it has two version. Single phase with main requirement voltage 220-240V at 50/60 Hz. Three phase with main requirement voltage 175-260/300-450 at 50 Hz and 202-300/350-520 at 60 Hz
The Becker VT 4.10 - 4.40 series pumps are 100% oil free rotary vane vacuum pumps. They are designed to operate on a continuous basis at any point from atmospheric pressure to a vacuum level of 25" HgV.
The VT series pumps are direct drive units and are supplied with an IP-54 TEFC electric motor. Each pump is equipped with an integral vacuum relief valve, a 10µ inlet filter, and vibration isolators as standard equipment.
Becker VT series pumps have a reputation for being exceptionally quiet. These pumps are newly redesigned to make them even quieter, and cooler running than previous units.
These 100% oil-free, dry pumps are ideal for applications where oil or water is objectionable. All Becker VT pumps use long life, self lubricating graphite composite vanes.
Applications include the graphic arts, packaging, vacuum chucking, robotics and material handling, medical/surgical, and air sampling among others.
Becker VT 4.16 Features:
- 100% Oil-less operation
- Quiet
- Cool operation
- Long vane life
- Inlet filters included
- Discharge silencers
- Direct drive
- Vacuum regulators included
- Minimal maintenance

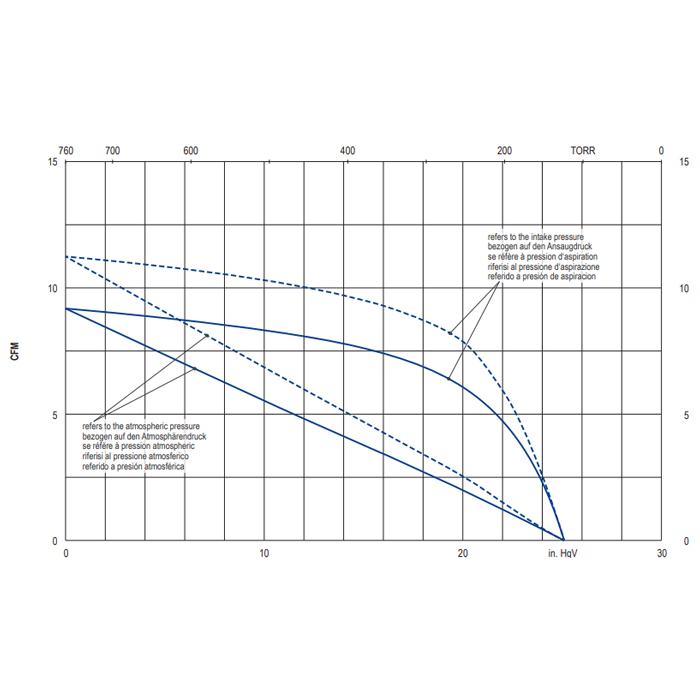

Becker VT 4.16 Suction Air Rate:

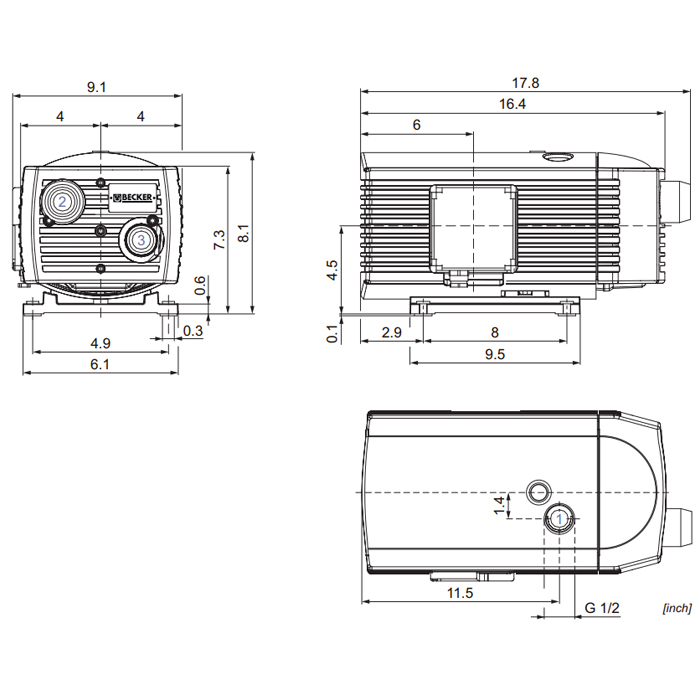

Becker VT 4.16 Dimensions:
A&J Vacuum Services offers full repair/service of Becker Pumps, along with all other brands offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Becker VT 4.16 Rotary Vane Pump, Oil-Free, Pump speed 11 CFM, Single Phase, 220-240 V, G008162
Becker VT 4.16 Technical Data:
A&J Vacuum Services offers full repair/service of Becker Pumps, along with all other brands offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
