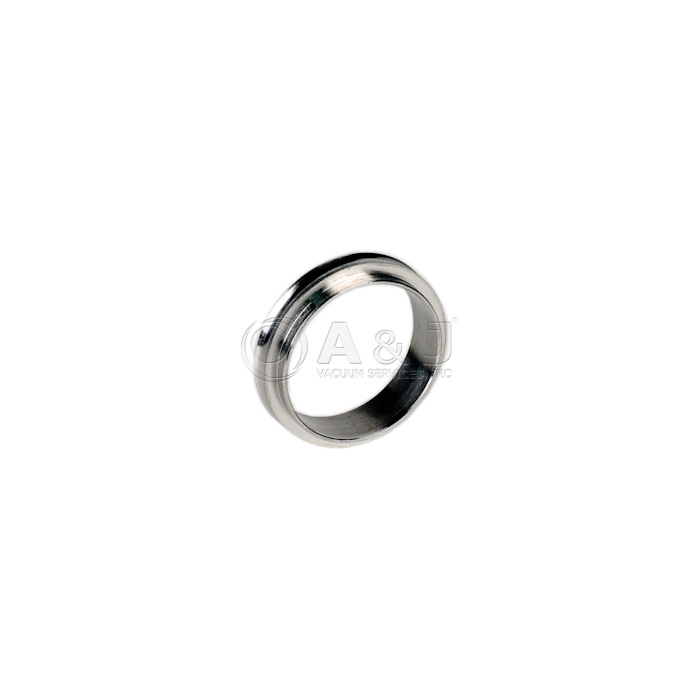

Centering Ring KF-25 ISO-KF Vacuum Fittings NW-25, Stainless Steel, KF-25, PN07573
Condition:
New
In Stock
Item#:PN07573
Mfr Part#:KF25CRS
Manufacturer:AJVS
Features:
Centering Ring KF 25, KF25 (NW 25), Stainless Steel. These are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50, KF25CRS

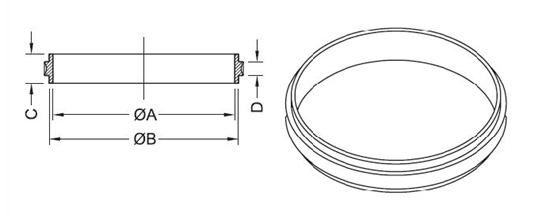

Technical Data:
- A: 0.98 in / 25 mm
- B: 1.02 in / 26 mm
- C: 0.31 in / 8 mm
- D: 0.15 in / 3.9 mm
Overview:
The Centering Rings are available in the following sizes: NW 10, NW 16, NW 25, NW 40, NW 50.
The Centering Rings are available in Aluminum or Stainless Steel.
KF (also referred to as NW) assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.
Centering Ring KF 25, KF25 (NW 25), Stainless Steel. These are also recognized as NW10, NW16, NW25, NW40, or KF-10 KF-16, KF-25, KF-40 and KF-50, KF25CRS
Technical Data:
- A: 0.98 in / 25 mm
- B: 1.02 in / 26 mm
- C: 0.31 in / 8 mm
- D: 0.15 in / 3.9 mm
