- Inlet flange: DN 40-FK
- Pumping speed (N2): 42 l/s
- Ultimate pressure: < 1 x 10-7 mbar
- E2M1.5 Backing pump
Shopping Cart ( )

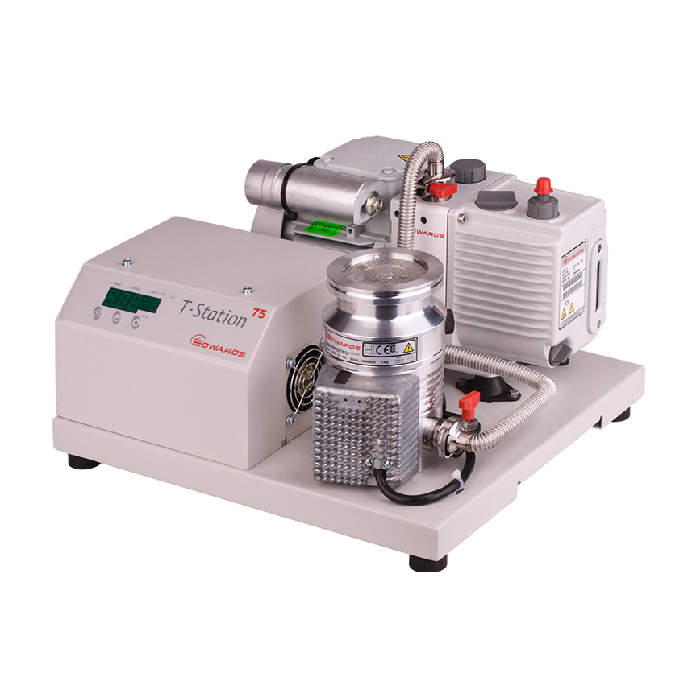

Edwards T75 T-Station Turbo Pumping T Station, Includes EXT75DX Turbo Pump (DN 40-KF), E2M1.5 Vacuum Pump and Turbo Active Gauge, 115V TS75W1002
Condition:
Discontinued
Item#:PN18710
Mfr Part#:TS75W1002
Manufacturer:Edwards Vacuum
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Full Service / Repair of T-75 Turbo Stations is available at AJVS Service Center. Contact Us to request service estimate.
Edwards T-Station 75 is Edward's new entry line Turbo pumping system. Package includes EXT75DX with an Oil sealed E2M1.5 backing pump.
Edwards T-Staion 75 Features:
- Compact series of pumping stations for all high vacuum applications
- Air-cooled and ready for operation with EXT75DX Turbo Pump
- DN 40-KF

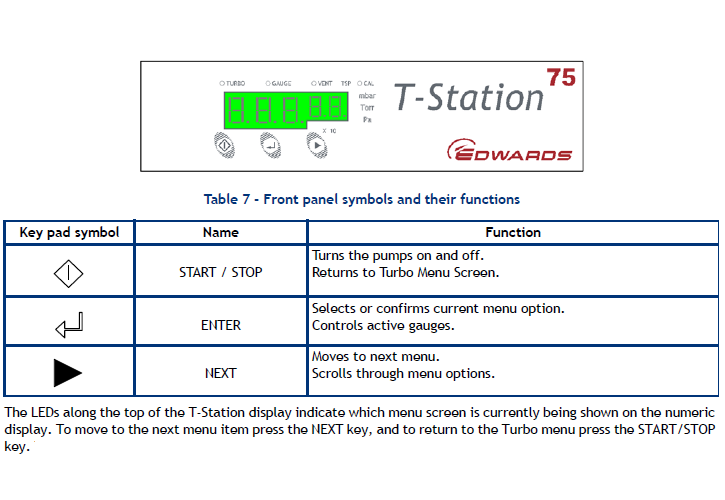

- Integrated Control Unit
- 115 V AC, 50/60 Hz
Edwards T-Station 75 Applications:
- Analytical
- Leak Detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy
PLEASE NOTE: THIS ITEM HAS BEEN OBSOLETE, REPLACED WITH NEW LINE OF EDWARDS T85, T-STATION 85 TURBO SYSTEM. CLICK HERE TO VIEW IT PN21267.
Full Service / Repair of T-75 Turbo Stations available at AJVS Service Center. Contact Us to request service estimate.
Backing Pump: E2M1.5 Rotary Vane Vacuum Pump
Inlet Flange: DN 40-KF
Mains Requirement: 110 V, 50/60 Hz
Mains Requirement Power Consumption: 230 W
Pumping Speed Backing Pump at 50 Hz: 1.6 m3/h
Pumping Speed for N2: 42 l/s

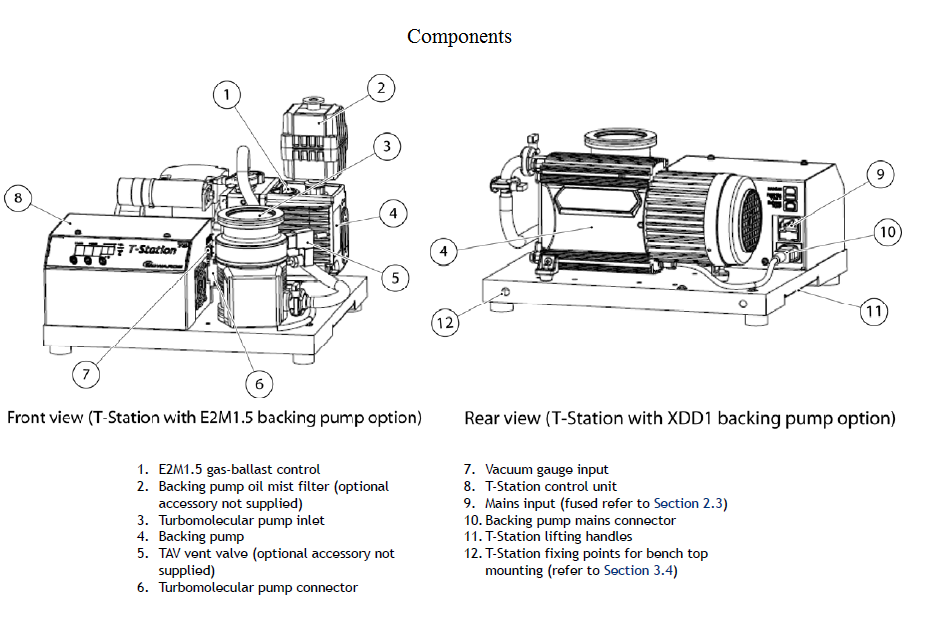

Pumping Station Components: EXT75DX, E2M1.5, TAG (Turbo and Active Guage)
Ultimate Pressure: < 5 x 10-8 mbar
Weight: 21 kg / 48 lbs
Noise Level: 56dB(A)
Edwards T Station D39593880 TS75W1001_TS75W2002_TS75W3002_TS75D1002_TSD75D2002_TS75D3002 - Instruction Manual (4).pdf
Edwards E2m0.7 E2M1.2 Operation Instructions A37141902 A37141919
Edwards XDD1 A74602983_A74602991 Operating Instructions Dry Diaphragm Pump
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
