Pfeiffer DuoVane 22 C Rotary Vane Pump, 3-phase, 1/8", 2000245812 / PK D942 A23 14 / PKD942A2314
Condition:
New
Item#:PN58128
Mfr Part#:2000245812 / PK D942 A23 14 / PKD942A2314
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer DuoVane 22 C Rotary Vane Pump, 3-phase, 1/8", 2000245812 / PK D942 A23 14 / PKD942A2314
Pfeiffer DuoVane 22 C Features:
- Reliable
- Simple to use
- Powerful
- High performance

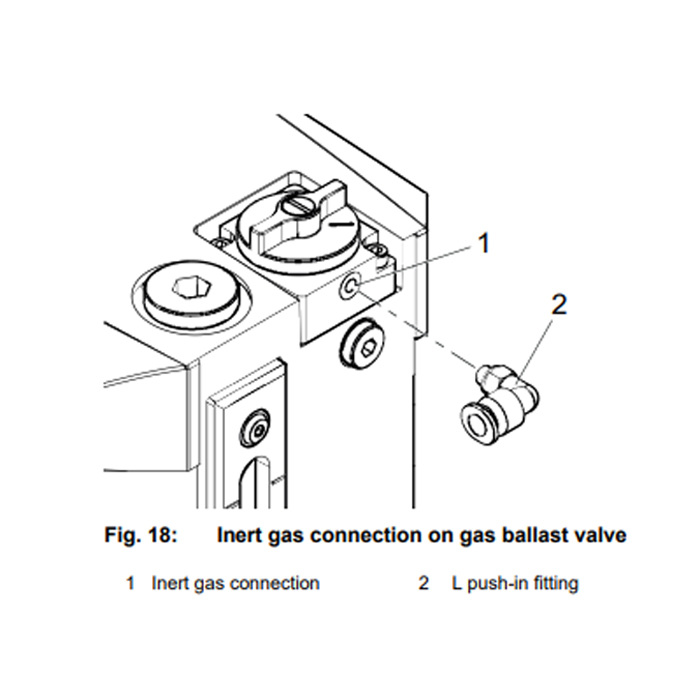

- Includes gas ballast valve
- Corrosive gas version, 3-phase motor
DuoVane 22 C / PKD942A2314 Overview:
Pfeiffer DuoVane 22 C series rotary vane pumps are two-stage, oil-sealed rotary displacement pumps for use in a low and medium vacuum. The rotary vane pump is available in the standard version with claw coupling and asynchronous motor.
Pfeiffer DuoVane 22C Line is the latest and the newest design within rotary vane pumps, with outstanding pumping performance.
The Pfeiffer DuoVane22 C rotary vane pump is an oil-sealed rotary displacement pump. The pumping system comprises the housing, the eccentrically mounted rotor, and the centrifugal and spring-loaded radially sliding vanes, which divide the suction chamber into multiple chambers.
The volume of each stator chamber changes periodically as the rotor rotates. This causes the gas to be drawn in at the vacuum flange, and compressed in the suction chamber by the rotation of the rotor until the exhaust valve opens against the atmospheric pressure at the outlet and expels the gas. The exhaust valve is oil-sealed. When the valve opens, a small quantity of oil penetrates into the suction chamber. In addition to lubrication, this also causes the gaps between the rotor, stator, and vanes to seal.
DuoVane22C Applications:
- Laboratories
- Technical gases
- CVD coating
- Pharma freeze drying
- Pumping of oxygen
A&J Vacuum services and repairs Pfeiffer DuoVane 12 C and 22 C, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer DuoVane 22 C Rotary Vane Pump, 3-phase, 1/8", 2000245812 / PK D942 A23 14 / PKD942A2314
Pfeiffer DuoVane 22 C Technical Data:
| Ambient temperature | 12 – 40 °C | 53.6 – 104 °F | 285.15 – 313.15 K |
| Certification | CE |
| Connection flange | DN 25 ISO-KF / DN 25 ISO-KF |
| Connection flange (in) | DN 25 ISO-KF |
| Connection flange (out) | DN 25 ISO-KF |
| Continuous gas input temperature, max. | 40 °C | 104 °F | 313.15 K |
| Continuous inlet pressure, max. | 50 hPa | 37.5 Torr | 50 mbar |
| Cooling method | Air (Forced convection) |

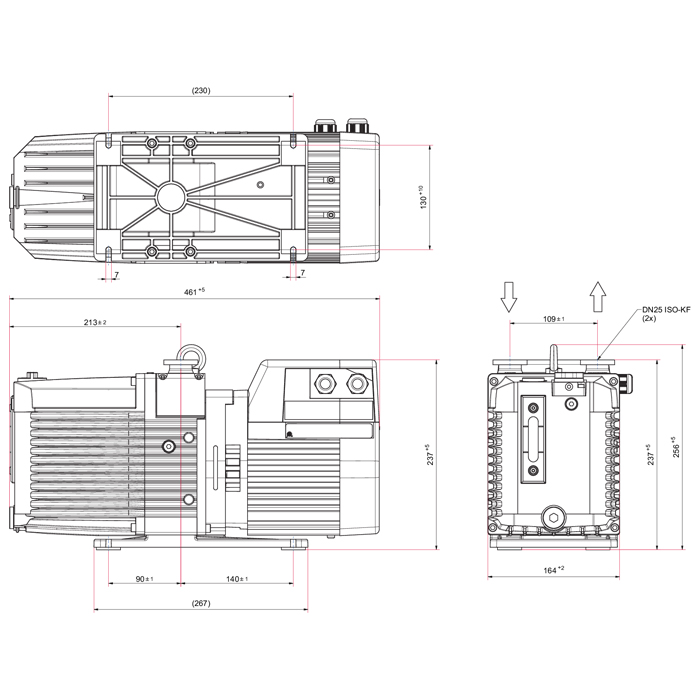

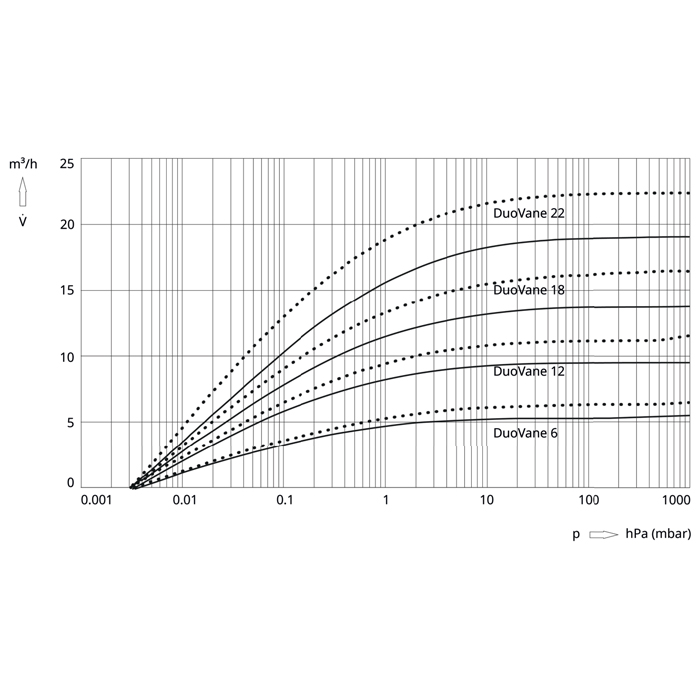

| Dimensions (L x W x H) | 472 x 166 x 239 mm | 18.58 x 6.54 x 9.41 inch |
| Exhaust pressure, max. | 1500 hPa | 1,125 Torr | 1,500 mbar |
| Exhaust pressure, min. | Atmospheric pressure |
| Gas ballast | Yes |
| Input voltage(s) | 200 – 220 / 240 / 380 – 415 V AC, 50 Hz | 200 – 220 / 280 / 380 – 480 V AC (±5 %), 60 Hz |
| Leakage rate safety valve | 1 · 10-5 Pa m³/s | 7.5 · 10-5 Torr l/s | 1 · 10-4 mbar l/s |
| Mains cable | No |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Motor protection | Bimetal |
| Motor type | 3-phase motor |
| Number of pumping stages | Two stage |
| Operating altitude, max. | 2000 m |
| Operating fluid | F4 |
| Operating fluid amount | 1.3 l |
| Protection degree | IP43 |
| Pumping principle | Oil-lubricated |
| Pumping speed at 50 Hz | 19.5 m³/h | 11.48 cfm | 325 l/min |
| Pumping speed at 60 Hz | 22.5 m³/h | 13.24 cfm | 375 l/min |
| Rated power 50 Hz | 0.55 kW |
| Rated power 60 Hz | 0.66 kW |
| Rotation speed at 50 Hz | 1500 rpm | 1,500 min-1 |
| Rotation speed at 60 Hz | 1800 rpm | 1,800 min-1 |
| Switch | No |
| Ultimate pressure | 3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar |
| Ultimate pressure with gas ballast | 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2 mbar |
| Weight | 29 kg | 63.93 lb |
