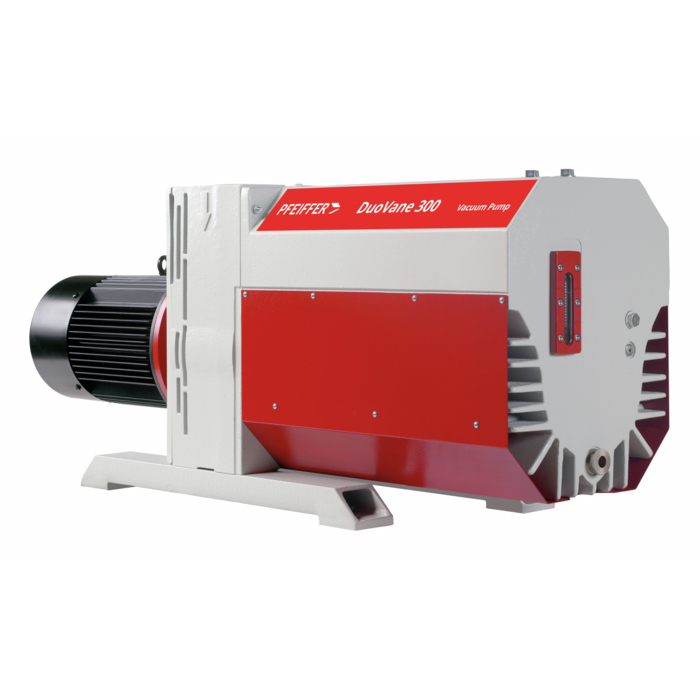

Pfeiffer DuoVane 300 Vacuum Pump, 3-phase, 3TF, 230/400V, 50 HZ | 265/460V, 60 HZ, PK D48 602 E / PKD48602E
Pfeiffer DuoVane 300 Features:
- Pumping speed 50/60HZ: 147.15/176.58 cfm
- Dual-stage, high-performance rotary vane pump
- With temperature sensor (3TF) for optimum motor protection
- Integrated gas ballast and HV safety valve
- Special feature: various motor voltages for worldwide use
Pfeiffer DuoVane300 / PK D48 602 E Overview:
Pfeiffer DuoVane series rotary vane pumps are two-stage, oil-sealed rotary displacement pumps for use in a low and medium vacuum. The rotary vane pump is available in the standard version with claw coupling and asynchronous motor.
Pfeiffer Vacuum DuoVane Line is the latest and the newest design within rotary vane pumps, with outstanding pumping performance.
The Pfeiffer Vacuum DuoVane 300 rotary vane pump is an oil-sealed rotary displacement pump. The pumping system comprises the housing, the eccentrically mounted rotor, and the centrifugal and spring-loaded radially sliding vanes, which divide the suction chamber into multiple chambers.
The volume of each stator chamber changes periodically as the rotor rotates. This causes the gas to be drawn in at the vacuum flange, and compressed in the suction chamber by the rotation of the rotor until the exhaust valve opens against the atmospheric pressure at the outlet and expels the gas. The exhaust valve is oil-sealed. When the valve opens, a small quantity of oil penetrates into the suction chamber. In addition to lubrication, this also causes the gaps between the rotor, stator, and vanes to seal.
Pfeiffer DuoVane300 Scope of Delivery:
- Pump with motor/without motor
- Operating fluid (except F4 and F5)
- Cone strainer and centering ring with O-ring
- Locking cap for vacuum and exhaust flange
- Operating instructions
Pfeiffer DuoVane300 Applications:
- All applications in rough and fine vacuum
- Backing pump for turbo and Roots pumps
- General laboratory applications
- Analytics
- Chemistry laboratory
- Freeze drying
- Process engineering
