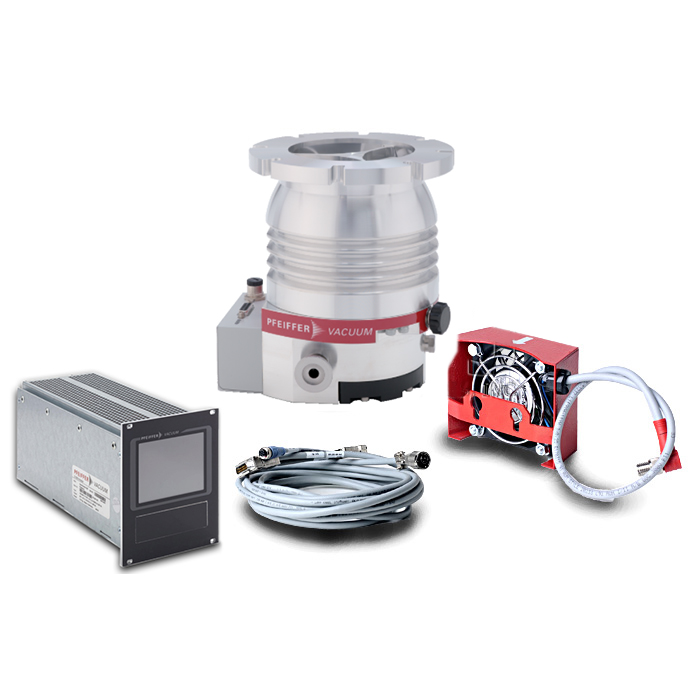

- Complete Package
- DN 100 CF-F Inlet Flange
- Controller, Cable and Air Cooling
- PM 193 294-BT
Shopping Cart ( )
Pfeiffer HiPace 300H Turbo Pump, DN 100 CF-F, with TC 110 Controller, Omnicontrol 200 / PED501000 Display Unit, Cooling Fan and Memory Stick with PV Viewer Software, 2000017370 / PM 193 294 BT / PM193294BT
Condition:
New
Item#:PN24563
Mfr Part#:2000017370 / PM 193 294 BT / PM193294BT
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer HiPace 300H Turbo Pump, DN 100 CF-F, with TC 110 Controller, Omnicontrol 200 / PED501000 Display Unit, Cooling Fan and Memory Stick with PV Viewer Software, 2000017370 / PM 193 294 BT / PM193294BT
Pfeiffer HiPace 300H Turbo Pump Features:
- Powerful Turbo Pump with a pumping speed of up to 260 l/s (N2)
- Extremely high compression, especially for light gases. Ideal for the generation of an ultra high vacuum
- Installation in any orientation
- Extensive accessories available
HiPace 300H Turbo Pump / PM193294BT Overview:
Pfeiffer HiPace 300H Turbo Pump Package.
Package Includes:
- HiPace 300 H Turbo Pump, PM P05 540 C / PMP05540C
- TC 110 Turbo Pump Controller / PM C01 790AT / PMC01790
- Omnicontrol 200 Controller Display Unit / PE D50 100 0 / PED501000
- Hipace 300H Cooling Fan / PM Z01 301 A / PMZ01301A
- 2 Port Cable / PM 061 351-T / PM061351-T
- RS485 cable / PM 061 283T / PM061283T
The Pfeiffer HiPace 300 H Series is a complete line of compact yet powerful turbo pumps featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
A&J Vacuum services and repairs Pfeiffer Vacuum HiPace 80, HiPace 300 H, HiPace 700 Turbo Pumps, along with all additional varieties of Pfeiffer Vacuum turbo pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer HiPace 300H Turbo Pump, DN 100 CF-F, with TC 110 Controller, Omnicontrol 200 / PED501000 Display Unit, Cooling Fan and Memory Stick with PV Viewer Software, 2000017370 / PM 193 294 BT / PM193294BT
Pfeiffer HiPace 300H Turbo Pump Technical Data:
- Inlet Flange: DN 100 CF-F
- Outlet Flange: DN 16 ISO-KF / G 1/4"
- Pumping Speed:
- N2: 260 l/s
- He: 255 l/s
- H2: 220 l/s
- Ar: 255 l/s
- Compression Ratio:
- N2: > 1 · 1013
- He: 2.5 · 109
- H2: 1 · 107
- Ar: > 1 · 1013
- Rotational Speed: 60,000 min-1 ( +/- 2%)
- Weight: 6.5 kg / 14.33 lbs
A&J Vacuum services and repairs Pfeiffer Vacuum HiPace 80, HiPace 300, HiPace 700 Turbo Pumps, along with all additional varieties of Pfeiffer Vacuum turbo pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Item#:PN40694
Mfr Part#:2000026642 / PE 300 098 -U / PE300098-U
Condition: In Stock
New
In Stock
$395.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
