Pfeiffer HiPace 700 Turbo Pump, DN 160 ISO-K, with TC 400 Controller, DCU 400 Display Unit, Connection Cable, Cooling Fan and Memory Stick with TurboViewer Software, PM 153 930 -T / PM153930T
Condition:
Discontinued
Item#:PN17412
Mfr Part#:PM 153 930 -T / PM153930T
Manufacturer:Pfeiffer Vacuum
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Pfeiffer HiPace 700 Turbo Pump, DN 160 ISO-K, with TC 400 Controller, DCU 400 Display Unit, Connection Cable, Cooling Fan and Memory Stick with TurboViewer Software, PM 153 930 -T / PM153930T
Pfeiffer HiPace 700 Features:
- Powerful Turbo Pump with a pumping speed of up to 355 l/s (N2)
- Ideal for dependable systems integration
- Installation in any orientation
- Extensive accessories available
HiPace 700 / PM153930T Overview:
Pfeiffer HiPace 700 Turbo Pump Package.

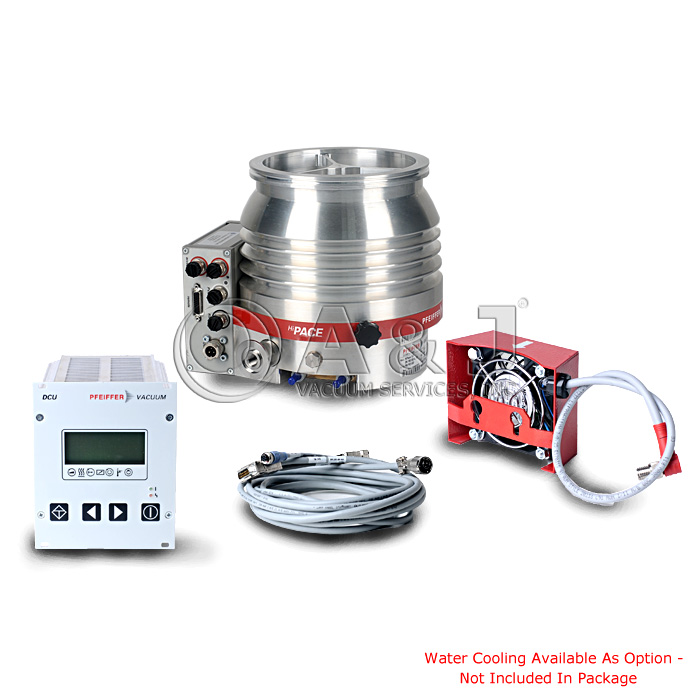

Package Includes:

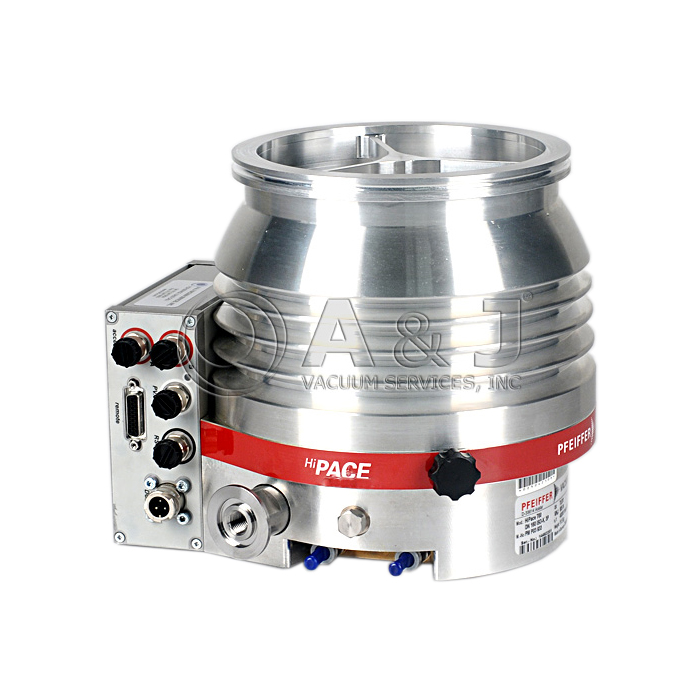

- HiPace 700 Turbo Pump
- TC 400 Turbo Pump Controller

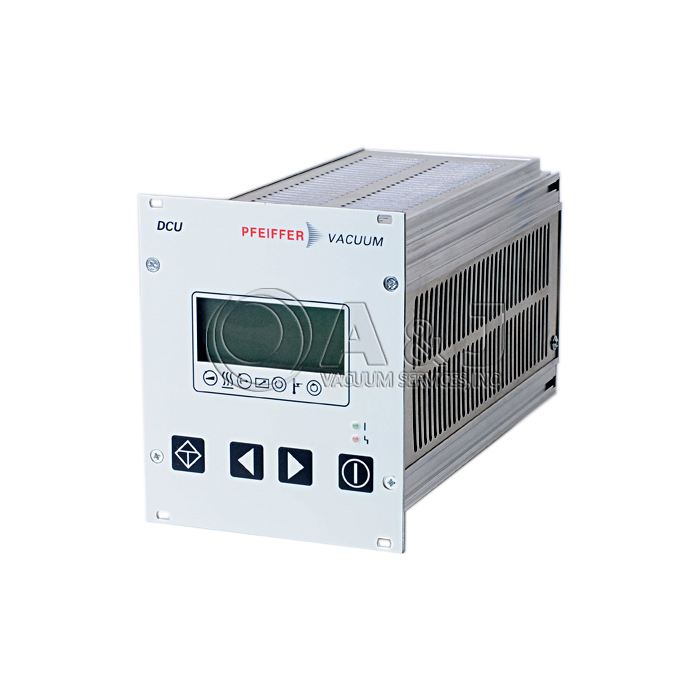

- DCU 400 Display Unit (cable included)
- Cooling Fan
- Memory Stick with TurboViewer Software

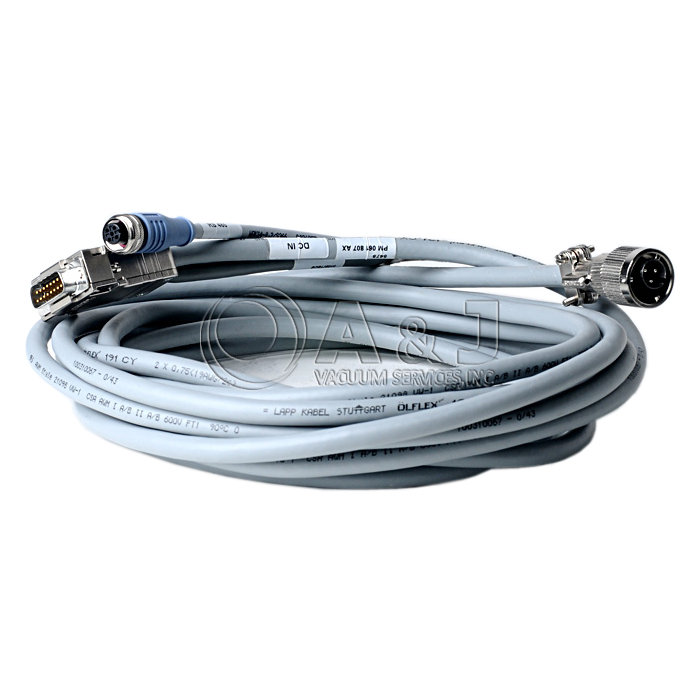

- Connection Cable
The Pfeiffer HiPace Series is a complete line of compact yet powerful turbo pumps featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
A&J Vacuum services and repairs Pfeiffer Vacuum HiPace 80, HiPace 300, HiPace 700 Turbo Pumps, along with all additional varieties of Pfeiffer Vacuum turbo pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer HiPace 700 Turbo Pump, DN 160 ISO-K, with TC 400 Controller, DCU 400 Display Unit, Connection Cable, Cooling Fan and Memory Stick with TurboViewer Software, PM 153 930 -T / PM153930T
Pfeiffer HiPace 700 Technical Data:
- Inlet Flange: DN 160 ISO-K
- Outlet Flange: DN 25 ISO-KF / G 1/4"
- Pumping Speed:
- N2: 685 l/s
- He: 655 l/s
- H2: 555 l/s
- Ar: 665 l/s
- Compression Ratio:
- N2: > 1 x 1011
- He: 3 x 107
- H2: 4 x 105
- Ar: > 1 x 1011
- Rotational Speed: 49200 min-1 ( 2%)
- Weight: 11.6 kg / 25.5 lbs
A&J Vacuum services and repairs Pfeiffer Vacuum HiPace 80, HiPace 300, HiPace 700 Turbo Pumps, along with all additional varieties of Pfeiffer Vacuum turbo pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Item#:PN06785
Mfr Part#:2000017843 / PM 143 452 AT / PM143452AT
Condition: In Stock
New
In Stock
$185.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
