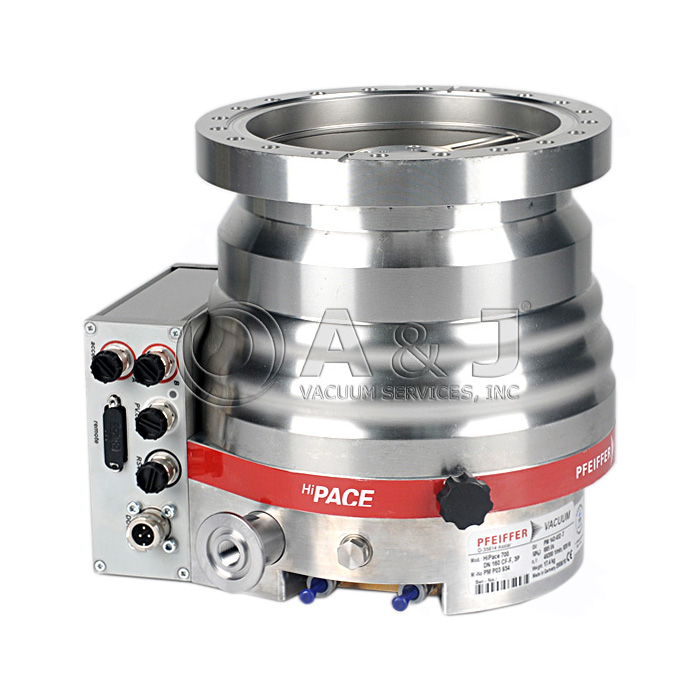

- Pfeiffer HiPace 700 Turbo Pump / PM P03 934
- Pfeiffer Omniccontrol 400 Power Supply with Display Unit (cable included) / PE D70 100 0
- Cooling Fan / PM Z01 303A and Connection Cable / PM 061 352-T
Shopping Cart ( )
Pfeiffer HiPace 700 Turbo Pump, DN 160 CF-F, with TC 400 Controller, Omnicontrol 400 Power Supply with Display Unit, Connection Cable and Cooling Fan, 2000017985 / PM 153 933 BT / PM153933BT
Condition:
New
Item#:PN41193
Mfr Part#:2000017985 / PM 153 933 BT / PM153933BT
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer HiPace 700 Turbo Pump, DN 160 CF-F, with TC 400 Controller, Omnicontrol 400 Power Supply with Display Unit, Connection Cable and Cooling Fan, 2000017985 / PM 153 933 BT / PM153933BT
Pfeiffer HiPace 700 Features:
- Compact yet powerful turbopump with a pumping speed of up to 685 l/s for N2
- Ideal for dependable systems integration
- Maximum vacuum performance with minimum power consumption
- Installation in any orientation
- Extensive accessories available
- Integrated drive electronics TC 400
HiPace 700 Turbo Pump / PM153933BT Overview:
Package includes:
- Pfeiffer HiPace 700 Turbo Pump / PM P03 934
- Pfeiffer TC 400 Turbo Pump Controller / PM C01 800
- Pfeiffer Omniccontrol 400 Power Supply with Display Unit (cable included) / PE D70 100 0
- Cooling Fan / PM Z01 303A
- Connection Cable / PM 061 352-T
The Pfeiffer HiPace 700 Turbo Pump Series is a complete line of compact yet powerful turbo pumps featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 700 Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer HiPace 700 Turbo Pump, DN 160 CF-F, with TC 400 Controller, Omnicontrol 400 Power Supply with Display Unit, Connection Cable and Cooling Fan, 2000017985 / PM 153 933 BT / PM153933BT
Pfeiffer HiPace 700 Technical Data:
- Inlet Flange: DN 160 CF-F
- Outlet Flange: DN 25 ISO-KF / G 1/4"
- Pumping Speed:
- N2: 685 l/s
- He: 655 l/s
- H2: 555 l/s
- Ar: 665 l/s
- Compression Ratio:
- N2: > 1 x 1011
- He: 3 x 107
- H2: 4 x 105
- Ar: > 1 x 1011
- Rotational Speed: 49200 min-1 ( 2%)
- Weight: 11.6 kg / 25.5 lbs
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 700 Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN06785
Mfr Part#:2000017843 / PM 143 452 AT / PM143452AT
Condition: In Stock
New
In Stock
$185.00
Item#:PN18023
Mfr Part#:2000016414 / PM E11 052-T / PME11052-T
Condition: In Stock
New
In Stock
$1,450.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
