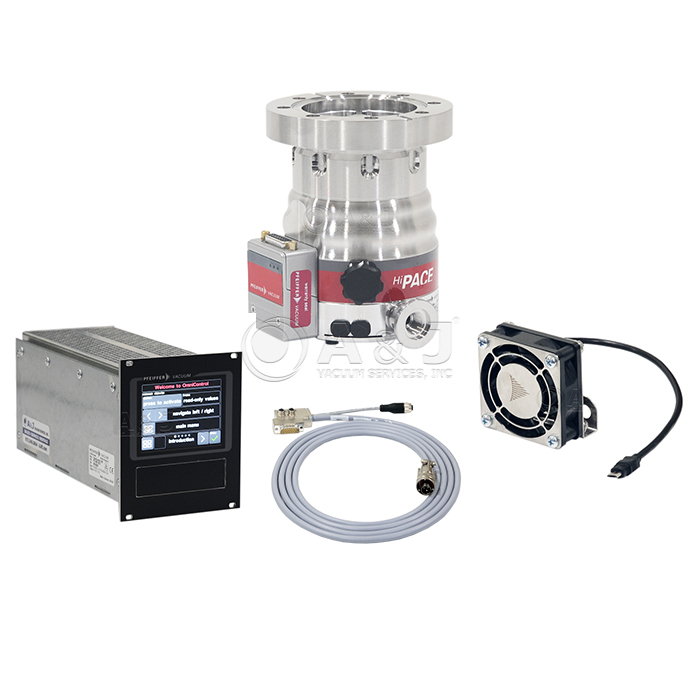

Pfeiffer HiPace 80 Neo Turbo Pump Package, DN 63 CF-F, with TC 80 Controller, Omnicontrol 200 / PED501000 Display Unit, Cooling Fan, 2000017969 / PM 153 906 CT / PM153906CT
Condition:
New
Item#:PN40946
Mfr Part#:2000017969 / PM 153 906 CT / PM153906CT
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer HiPace 80 Neo Turbo Pump Package, DN 63 CF-F, with TC 80 Controller, Omnicontrol 200 / PED501000 Display Unit, Cooling Fan, 2000017969 / PM 153 906 CT / PM153906CT
Pfeiffer HiPace 80 Neo Turbo Pump Package Features:
- Powerful Turbo Pump with a pumping speed of up to 67 l/s (N2)
- Ideal for dependable systems integration
- Installation in any orientation
- Extensive accessories available
HiPace 80 Neo Turbo Pump Package / PM153906CT Overview:
Package Includes:
- HiPace 80 Turbo Pump, PM P080 311 10 / PMP08031110
- TC 80 Turbo Pump Controller / PM C01 890 / PMC01890
- Omnicontrol 200 Controller Display Unit / PE D50 100 0 / PED501000
- Hipace 80 Neo Cooling Fan / PM Z01 367 / PMZ01367
- 2 Port Cable / PM 071 761-T / PM071761-T
- 115 VAC Mains Cable P 4564 309 ZE
The Pfeiffer HiPace 80 Neo Series is a complete line of compact yet powerful turbo pumps featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
A&J Vacuum services and repairs Pfeiffer Vacuum HiPace 80 Neo, HiPace 300, HiPace 700 Turbo Pumps, along with all additional varieties of Pfeiffer Vacuum turbo pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer HiPace 80 Neo Turbo Pump Package, DN 63 CF-F, with TC 80 Controller, Omnicontrol 200 / PED501000 Display Unit, Cooling Fan, 2000017969 / PM 153 906 CT / PM153906CT
Pfeiffer HiPace 80 Neo Turbo Pump Package Technical Data:
- Inlet Flange: DN 63 CF-F
- Outlet Flange: DN 16 ISO-KF / G 1/4"
- Pumping Speed:
- N2: 67 l/s
- He: 88/s
- H2: 48 l/s
- Ar: 66 l/s
- Compression Ratio:
- N2: > 1 x 1011
- He: 1.3 x 107
- H2: 1.4 x 105
- Ar: > 1 x 1011
- Rotational Speed: 90000 min-1 ( 2%)
- Weight: 3.8 kg / 8 lbs
A&J Vacuum services and repairs Pfeiffer Vacuum HiPace 80, HiPace 300, HiPace 700 Turbo Pumps, along with all additional varieties of Pfeiffer Vacuum turbo pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Hipace 80 Neo Operation Manual
Pfeiffer Omnicontrol 200 Manual / Operating Instructions
Pfeiffer Cooling Fan Hipace 80 Neo PMZ01367 / PM Z01 367 Manual
Pfeiffer Hipace 80 New Turbo Pump Video
Pfeiffer Vacuum Hipace 80 Video 3D
Pfeiffer Vacuum OmniControl® - universal control unit Presentation
Item#:PN24431
Mfr Part#:2000017511 / PM203490-T / PM 203 490 -T
Condition: In Stock
New
In Stock
$225.00
Item#:PN02097
Mfr Part#:GA-0450V
Condition: In Stock
New
In Stock
$25.00
Item#:PN06152
Mfr Part#:2000019670 / PM 016 333 / PM016333
Condition: Out of Stock
New
$245.00
Item#:PN06180
Mfr Part#:2000019665 / PM 016 312 / PM016312
Condition: In Stock
New
In Stock
$275.00
Item#:PN14561
Mfr Part#:PN14561
Condition: In Stock
New
In Stock
$73.00
Item#:PN30343
Mfr Part#:2000019794 / PM 016 683 -T / PM016683-T
Condition: In Stock
New
In Stock
$58.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
