- For Pumping Speed up to 70.63 cfm
- Pressure Max. (absolute): 1500 hPa | 1,125 Torr | 1,500 mbar
- Integral Leak Rate: < 1 · 10-6 Pa m³/s | < 7.5 · 10-6 Torr l/s | < 1 · 10-5 mbar l/s
- Longer Life Time of Operating Fluid
Shopping Cart ( )

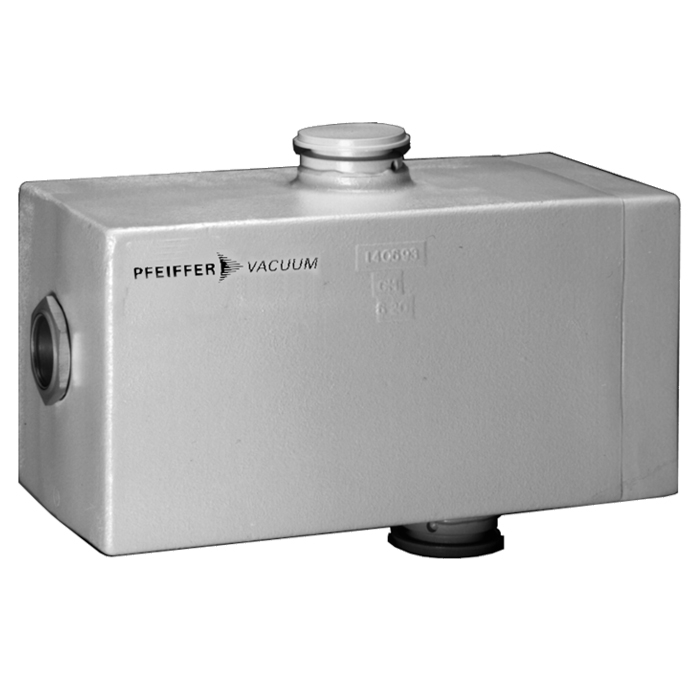

Pfeiffer KAS 040, Condensate Separator for Pumping Speeds up to 120 m3/h | 70.63 cfm, 2000020851 / PK Z10 008 A / PKZ10008A
Condition:
New
Item#:PN50992
Mfr Part#:2000020851 / PK Z10 008 A / PKZ10008A
Manufacturer:Pfeiffer-Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer KAS 040, Condensate Separator for Pumping Speeds up to 120 m3/h | 70.63 cfm, 2000020851 / PK Z10 008 A / PKZ10008A
Pfeiffer KAS 040 Features:
- For pumping speed up to 70.63 cfm
- For inlet and outlet ports
- Protects rotary vane pump against sucked in liquids and condensate return
- Longer life time of operating fluid
Pfeiffer KAS 040 / PK Z10 008 A Overview:
Condensate Separators KAS 025 to KAS 100 are constructed from corrosion-resistant aluminum and feature elastomer sealing elements.To safeguard the vacuum pump from potential damage caused by condensates, installing a condensate separator in the intake line is recommended. This helps maintain the lubricating properties of the operating fluid and supports achieving the specified ultimate pressure. Each KAS unit is equipped with a sight glass for monitoring the condensate level.
Pfeiffer KAS040 Scope of Delivery:
- Operating instructions
Pfeiffer KAS040 Applications:
- For inlet and outlet ports
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 and 30, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer KAS 040, Condensate Separator for Pumping Speeds up to 120 m3/h | 70.63 cfm, 2000020851 / PK Z10 008 A / PKZ10008A
Pfeiffer KAS 040 Technical Data:
- Capacity: 3 l
- Connection flange: DN 40 ISO-KF / DN 40 ISO-KF
- Connection flange (in): DN 40 ISO-KF
- Connection flange (out): DN 40 ISO-KF
- For pumping speed up to: 120 m³/h | 70.63 cfm | 2,000 l/min
- Integral leak rate: < 1 · 10-6 Pa m³/s | < 7.5 · 10-6 Torr l/s | < 1 · 10-5 mbar l/s
- Pressure max. (absolute): 1500 hPa | 1,125 Torr | 1,500 mbar
- Weight approx.: 6.1 kg | 13.45 lb
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 and 30, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
