- For Pumping Speed up to: 79.46 cfm
- Pressure Max. (absolute): 1500 mbar
- For Exhaust Flange
- Clean Exhaust Air

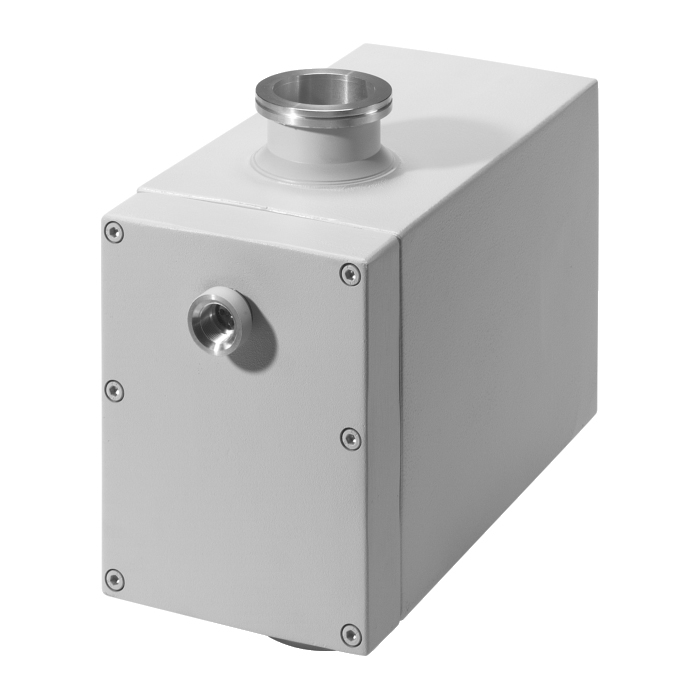

Pfeiffer OME 63 C, Oil Mist Separator, Corrosive Gas Version, Duo 125 | 125 M, PK Z40 410 B / PKZ40410B
Pfeiffer OME 63 C Features:
- For exhaust flange
- Corrosive gas version
- Prevents emission of oil mist
- Clean, oil mist free exhaust air
Pfeiffer OME 63 C Oil Mist Separator / PK Z40 410 B Overview:
The oil mist filter is attached to the exhaust port of rotary vane pumps, where it captures oil mist particles from the exhaust stream, thereby minimizing the emission of operating fluid mist. Housed in a corrosion-resistant aluminum casing, the filter elements consist of a cylindrical medium made of glass/polyester fleece for both standard and helium-tight configurations, or sintered carbon for use with corrosive gases. A baffle is positioned above the filter element to aid in flow management.
To prevent the system from exceeding the maximum allowable operating pressure of 1500 hPa (absolute), an integrated pressure relief valve automatically opens when the filter becomes overly contaminated. The filtered operating fluid can be monitored via a sight glass and drained through a screw plug. For continuous operation, an optional operating fluid return system allows the recovered fluid from the OME to be fed back into the pump without interruption.
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 95 and 135, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer OME 63 C, Oil Mist Separator, Corrosive Gas Version, Duo 125 | 125 M, PK Z40 410 B / PKZ40410B

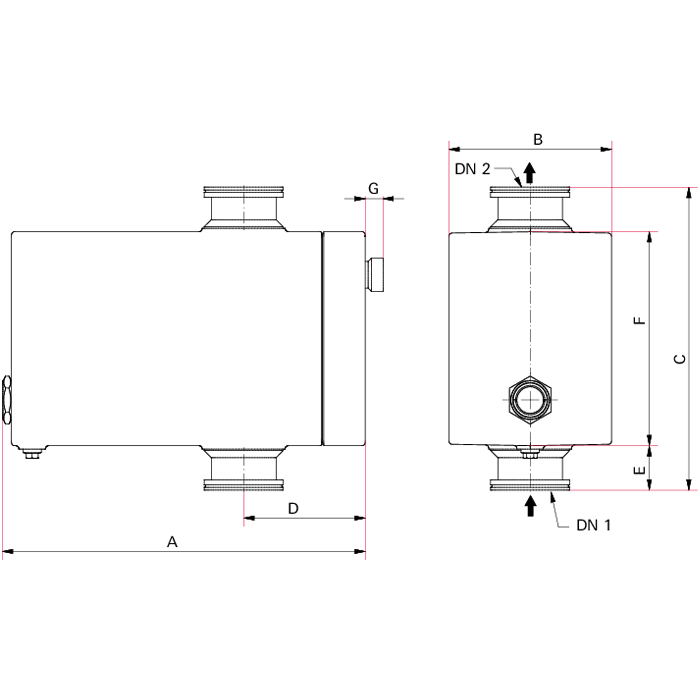

Pfeiffer OME 63 C Technical Data:
- Capacity: 1.7 l
- Connection flange: DN 63 ISO-F / DN ISO-K
- Connection flange (in): DN 63 ISO-F
- Connection flange (out): DN 63 ISO-K
- Degree of separation: 99.98%
- Exhaust pressure, max.: Atmospheric pressure
- For pumping speed up to: 135 m³/h | 79.46 cfm | 2,250 l/min
- Pressure max. (absolute): 1500 hPa | 1,125 Torr | 1,500 mbar
- Weight approx.: 13.5 kg | 29.76 lb
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 95 and 135, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer OME 63 100 160 MC ODK 005 Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Pfeiffer OME 63 C, Oil Mist Separator, Corrosive Gas Version, Duo 125 | 125 M, PK Z40 410 B / PKZ40410B
Pfeiffer OME 63 C Features:
- For exhaust flange
- Corrosive gas version
- Prevents emission of oil mist
- Clean, oil mist free exhaust air
Pfeiffer OME 63 C Oil Mist Separator / PK Z40 410 B Overview:
The oil mist filter is attached to the exhaust port of rotary vane pumps, where it captures oil mist particles from the exhaust stream, thereby minimizing the emission of operating fluid mist. Housed in a corrosion-resistant aluminum casing, the filter elements consist of a cylindrical medium made of glass/polyester fleece for both standard and helium-tight configurations, or sintered carbon for use with corrosive gases. A baffle is positioned above the filter element to aid in flow management.
To prevent the system from exceeding the maximum allowable operating pressure of 1500 hPa (absolute), an integrated pressure relief valve automatically opens when the filter becomes overly contaminated. The filtered operating fluid can be monitored via a sight glass and drained through a screw plug. For continuous operation, an optional operating fluid return system allows the recovered fluid from the OME to be fed back into the pump without interruption.
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 95 and 135, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Specifications
Pfeiffer OME 63 C, Oil Mist Separator, Corrosive Gas Version, Duo 125 | 125 M, PK Z40 410 B / PKZ40410B
Pfeiffer OME 63 C Technical Data:
- Capacity: 1.7 l
- Connection flange: DN 63 ISO-F / DN ISO-K
- Connection flange (in): DN 63 ISO-F
- Connection flange (out): DN 63 ISO-K
- Degree of separation: 99.98%
- Exhaust pressure, max.: Atmospheric pressure
- For pumping speed up to: 135 m³/h | 79.46 cfm | 2,250 l/min
- Pressure max. (absolute): 1500 hPa | 1,125 Torr | 1,500 mbar
- Weight approx.: 13.5 kg | 29.76 lb
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 95 and 135, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
