- Pro Calibration System
- P/N PSA30111 / PS A30 111
- Pumping speed backing pump at 50 Hz 2.5 m³/h | 1.47 cfm | 41.67 l/min
- Chamber ISO/TS 3567-compliant
Shopping Cart ( )
Pfeiffer Pro Calibration System for Gauges, 115-230 V 50/60 Hz, PS A30 111 C / PSA30111
Condition:
New
Item#:PN23763
Mfr Part#:PS A30 111 C / PSA30111
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer Pro Calibration System for Gauges, 115-230 V 50/60 Hz, PS A30 111 C / PSA30111
Pfeiffer Calibration System Pro Overview:
The calibration system consists of a turbo pump HiCube80, backing pump DUO 3 and a vacuum chamber, mounted on a mobil housing. The vacuum chamber can be closed off from the turbo pump with the butterfly valve. With the two manually actuated valves in the bypass the backing pump could be connected directly with the vacuum chamber and/or the fore-vacuum line of the turbo pump.
The calibration system can be switched on and off with the master switch. The display control unit takes over the control and monitoring. The backing pump generates the necessary fore-vacuum for the turbo pump. On top of the vacuum chamber are - depending on the unit model - several flange connections with different nominal diameters for vacuum gauges. They are closed with blank flanges ex works.
The centrally positioned GAV on the vacuum chamber is for central manual gas inlet regulation. The Pirani/Cold cathode transmitter on the vacuum chamber controls the calibration system. The vacuum chamber can be closed off from the turbo pump with the manual butterfly valve. The T handle indicates the valve position.
The electronic drive unit is supplied with power by the power by the power supply pack and is an inherent part of the turbo pump is additionally equipped with a venting valve, which vents the turbo pump automatically in case of deactivation or a power cut-off. The Hipace ait cooling unit cools the turbo pump during operation. Additionally, the pumping station is equipped with a housing fan.
Pfeiffer Calibration System Pro Structure:
Pfeiffer Calibration System Pro Features:
- For static and dynamic calibration
- Calibration range 1.013 – 10-4 hPa
- Easy to use
- Chamber ISO/TS 3567-compliant
- Up to 5 reference gauges for high accuracy
- DAkkS-certified reference gauges
- Flexible
- We also deliver customized solutions
Pfeiffer Calibration System Pro Measurement Accuracies:
Pfeiffer Calibration System Pro Application:
- Freeze-drying in the pharmaceutical and food industry
- Coating systems for optics, ophthalmics, decorative coatings, diffusion barrier layers for PET bottles and packaging films, wear protection coatings for tools, etc., incorporating the use of multiple measuring instruments.
- Final vacuum measurement in pump production and service workshops
- Process monitoring and process control for determining the end of the process, in order to produce consistent quality and minimize rejection rates.
Pfeiffer Calibration System Pro Dimensions:
Click Here for Pfeiffer Calibration System Pro Manual
A&J Vacuum Services offers full repair/service of Pfeiffer Calibration System Pro, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Pro Calibration System for Gauges, 115-230 V 50/60 Hz, PS A30 111 C / PSA30111

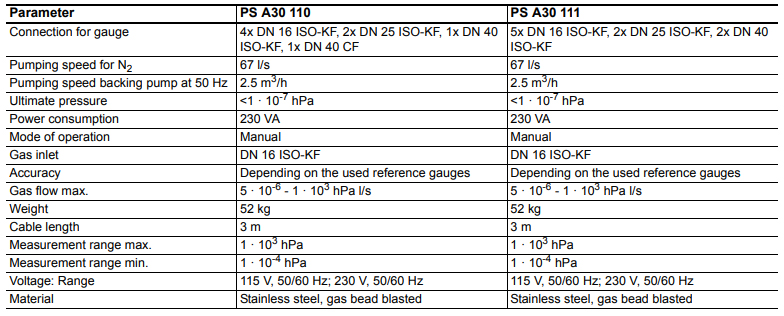

Pfeiffer Calibration System Pro Technical Data:
Click Here for Pfeiffer Calibration System Pro Manual
A&J Vacuum Services offers full repair/service of Pfeiffer Calibration System Pro, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum Calibration pumping station
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
