- Input Voltages: 230 VAC, 50/60Hz
- Connection Flange: DN 40 ISO-KF
- For Intake Flange
- Clean and Virtually Hydrocarbon-free
Shopping Cart ( )

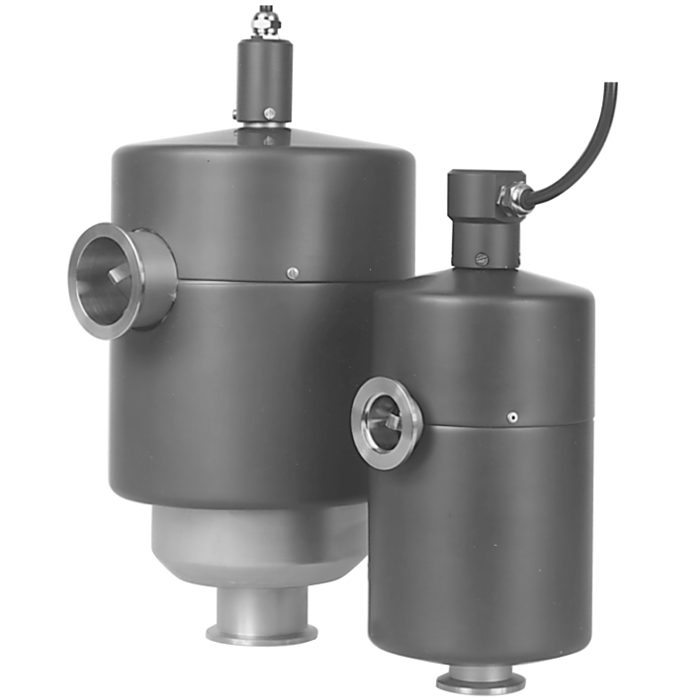

Pfeiffer URB 040, Catalytic Trap, 230V, PT U10 260 / PTU10260
Condition:
Out of Stock
Item#:PN54931
Mfr Part#:PT U10 260 / PTU10260
Manufacturer:Pfeiffer-Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer URB 040, Catalytic Trap, 230V, PT U10 260 / PTU10260
Pfeiffer URB 040 Features:
- Input voltages: 230 VAC, 50/60Hz
- For the intake flange
- Prevents the backflow of operation fluid vapors (only mineral oil) into vacuum equipment. Catalyst splits oil molecules into CO2 and water
- Clean and virtually hydrocarbon-free vacuum
Pfeiffer URB 040 / PT U10 260 Overview:
The catalyzer trap prevents contamination of vacuum chambers and high vacuum pumps—such as diffusion, getter-ion, cryo, or turbomolecular pumps—by back-streaming hydrocarbons from rotary vane and other roughing pumps that use mineral oil as a sealing fluid. It is not suitable for use with roughing pumps sealed with synthetic oils.
Pfeiffer URB040 Applications:
- For the intake flange
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 and 30, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer URB 040, Catalytic Trap, 230V, PT U10 260 / PTU10260

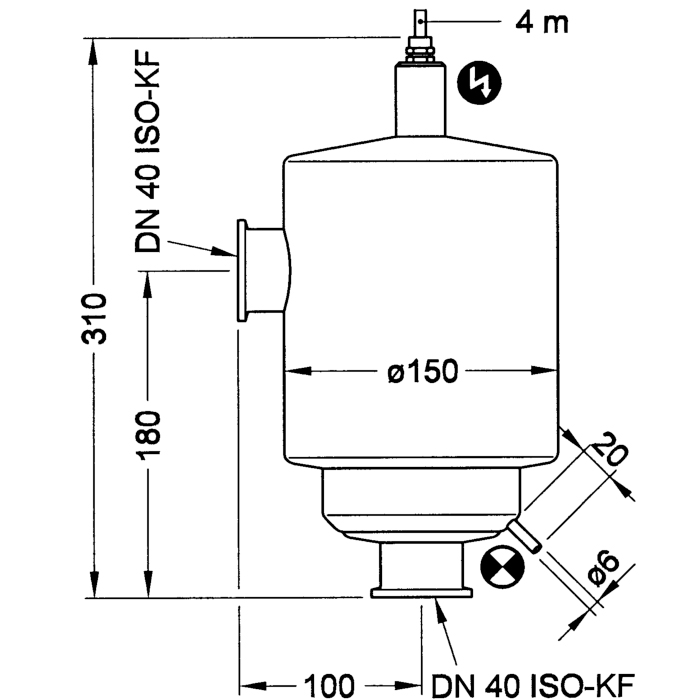

Pfeiffer URB 040 Technical Data:
- Conductance at 1 hPa: 45 l/s
- Conductance at 1 · 10-2: 9 l/s
- Connection flange (in): DN 40 ISO-KF
- Connection flange (out): DN 40 ISO-KF
- Cooling method: Water
- Feedthrough voltage: 230 VAC
- Filling quantity: 480 g
- Input voltage(s): 230 V AC, 50/60 Hz
- Mains frequency compatibility: 50/60Hz
- Mounting orientation: For normal operation: arbitrary/with water cooling: vertical
- Power consumption: 50 W
- Weight approx.: 3.6 kg | 7.94 lb
