- For Pumping Speed up to 2.94 cfm
- Connection flange: DN 16 ISO-KF
- Mounting Orientation: 0° (HV Flange Top) – 90°
- Prevents the Operating Fluid Backflow on the Intake Side
Shopping Cart ( )

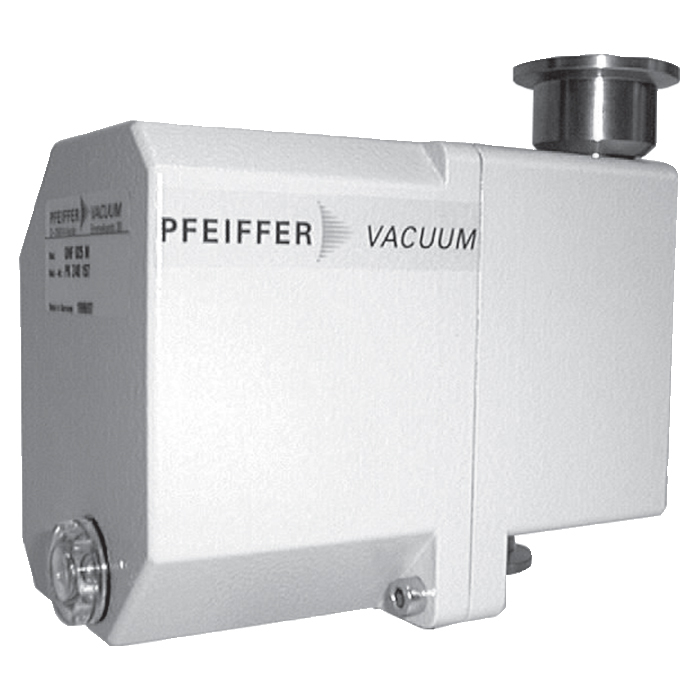

Pfeiffer ZFO 16, Zeolite Trap, 2000020944 / PK Z70 003 / PKZ70003
Condition:
New
Item#:PN51018
Mfr Part#:2000020944 / PK Z70 003 / PKZ70003
Manufacturer:Pfeiffer-Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer ZFO 16, Zeolite Trap, 2000020944 / PK Z70 003 / PKZ70003
Pfeiffer ZFO 16 Features:
- For pumping speed up to 2.94 cfm
- Connection flange: DN 16 ISO-KF
- Prevents the operating fluid backflow on the intake side
Pfeiffer ZFO16 / PK Z70 003 Overview:
Zeolite traps utilize adsorption to prevent hydrocarbons from back-streaming from oil-sealed two-stage vacuum pumps into other high vacuum components within the system. The Zeolite Trap ZFO 16 is top-mounted on the intake flange of rotary vane vacuum pumps. Since zeolite traps cannot be cooled, they are not suitable for use as condensers. Typically, these traps are installed either in the intake line of a vacuum system or directly on the vacuum pump's intake flange.
A&J Vacuum services and repairs Pfeiffer DuoVane 1.6 3 6 12 18 and 22 , along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer ZFO 16, Zeolite Trap, 2000020944 / PK Z70 003 / PKZ70003
Pfeiffer ZFO 16 Technical Data:
- Conductance at 1 hPa: 0.7 l/s
- Conductance at 1 · 10-2: 0.3 l/s
- Conductance at 100 hPa: 31 l/s
- Connection flange: DN 16 ISO-KF / DN 16 ISO-KF
- Connection flange (in): DN 16 ISO-KF
- Connection flange (out): DN 16 ISO-KF
- Filling quantity: 0.5 l
- For pumping speed up to: 5 m³/h | 2.94 cfm | 83.33 l/min
- Heating rod: No
- Mounting orientation: 0° (HV flange top) – 90°
- Weight approx.: 1.5 kg | 3.31 lb
A&J Vacuum services and repairs Pfeiffer DuoVane 1.6 3 6 12 18 and 22 , along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
