- Pumping speed: 12 l/m (50 Hz)
- Ultimate pressure: 24 x 103 Pa
- Single phase motor
- 100 Volts
Shopping Cart ( )

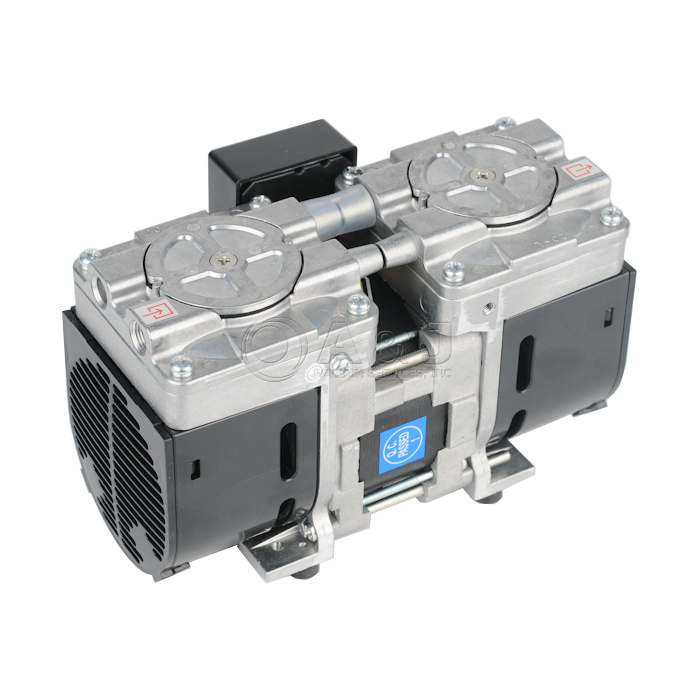

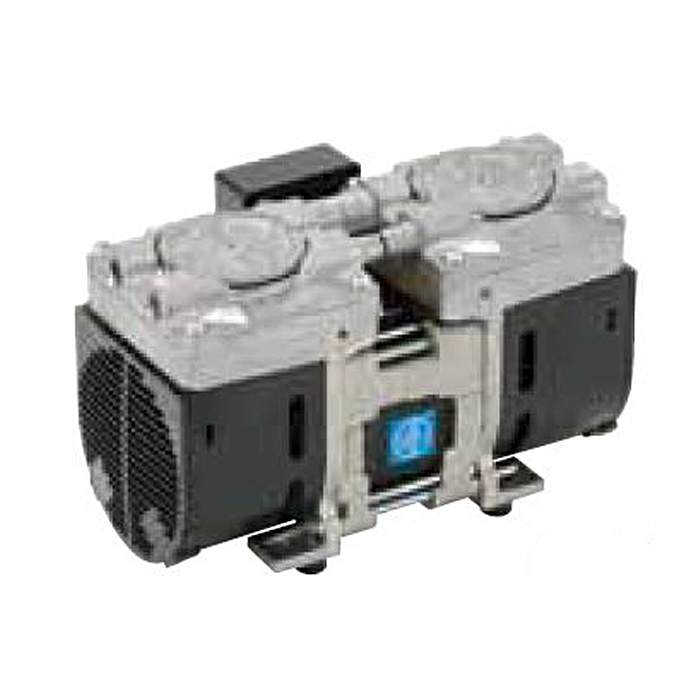

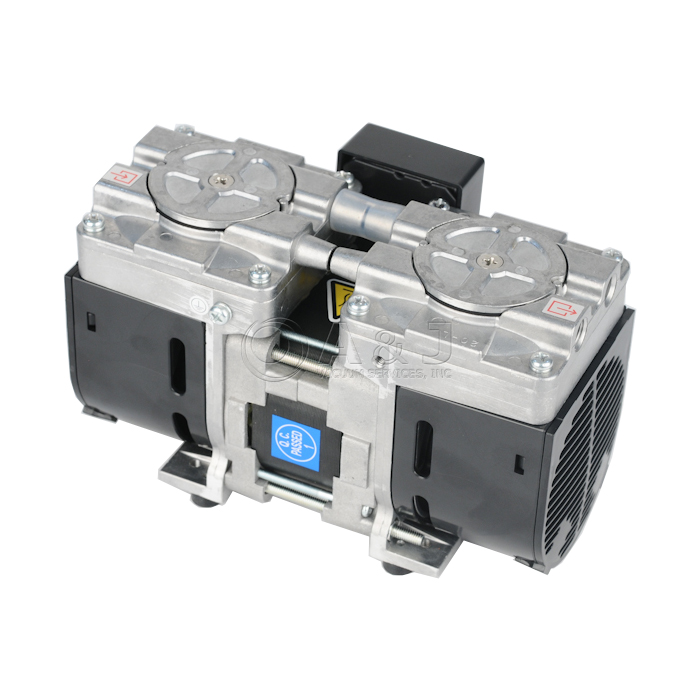

Ulvac DAP-12S Diaphragm Vacuum Pump, Single Phase, 100 V, 50/60 Hz, 1045143
Condition:
New
Item#:PN17810
Mfr Part#:1045143
Manufacturer:Ulvac
Features:
The DAP-12S Diaphragm Vacuum Pump creates vacuum by reciprocating movement of rubber diaphragms. The pump structure makes Oil-free environment and maintenance easy. The DAP series offers pumping speed at 6L and 12 L/min at 50Hz.
Applications:
- Vacuum chucks, wafer and tip handling devices
- Vacuum tweezers, medical appliances
- Printing equipment
- Automatic packing machines
- Optical appliances
- Sterilizer
This item is non-returnable/non-refundable
Pumping Speed: 12 l/m (50 Hz) / 14 l/m (60 Hz)
Ultimate Pressure: 24 x 103 Pa
Motor: Single Phase, 115 V, 10W, 4P, Capacitor run
Full load current: 0.5 A
Inlet / Outlet: Rc 1/8 mm
Weight: 1.9 kg / 4.2 lbs
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
