- Ultimate Vacuum: 5 x 10-3 mbar (at 1013 mbar ambient pressure)
- Chemically Resistant
- 100% oil-free
- Regeneration Mode
Shopping Cart ( )
Vacuubrand Vacuu-Pure 10C Dry Screw Pump, Chemical Resistant, 100-230 V, 50/60 Hz, US Plug, 20751003
Condition:
New
Item#:PN23899
Mfr Part#:20751003
Manufacturer:BRANDTECH / Vacuubrand
Price upon request
CONTACT US
Features:
Vacuubrand Vacuu-Pure 10C Dry Screw Pump, Chemical Resistant, 100-230 V, 50/60 Hz, US Plug, 20751003
Vacuubrand Vacuu-Pure 10 C Overview:
The Vacuubrand Vacuupure 10C pump reliably offers the advantages of an oil-free pump that operates in a pressure range down to 10-3 mbar. The innovative Vacuupure line combines three key benefits for the user: 100% oil-free operation, no abrasion, and no wear parts. This design principle allows you to achieve pure vacuum and maximum reliability with minimal operational costs.
Vacuu-Pure 10C Screw Pumps are designed to cover many different applications. The VacuuPure10 C is especially designed for processes in the 10-3mbar range, but unlike other competitors it could be used effectively across its entire pressure range from atmosphere down to its ultimate vacuum. With a maximum pumping speed of 9 m3/h, the Vacuupure10 is capable of quickly reaching the desired level of vacuum. Vacuu-Pure screw pumps also offer excellent vapor and condensate compatibility. This means that Vacuu-Pure pumps are not only great in the laboratory, but also an ideal solution for other demanding processes.
The VacuuPure10C spindles and stators are protected by thick-walled PEEK encapsulation to prevent corrosion by most chemicals.
Vacuubrand Vacuu-Pure10C Features:
- 100% oil-free
- Chemically Resistant
- Easy Installation and user friendly operation
- Rugged air cooled design
- No abrasion
- No wear parts
- Rotatable inlet
- Contact-free operating principle
- Regeneration Mode
Vacuubrand VacuuPure 10 Applications:
- Fore vacuum generation for turbomolecular pumps
- Analytical applications
- Regeneration of cryo pumps
- Vacuum drying
- Freeze drying
- Heat treatment
- Degassing
- Coating
- ... and many more
Vacuu-Pure pumps are able to be operated continuously at higher pressures so that during drying processes, both the primary drying and subsequent residual drying stages could be performed with a single pump. Vacuu-Pure screw pumps easily handle high vapor loads through its extraordinarily high condensate capability. As such, a gas ballast is not needed. This avoids associated disadvantages such as reduction in pumping speed and noisy operation. The integrated regeneration mode enables rapid drying of the pump after the end of a process and thus sample throughput could be significantly increased compared to other competitors.
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand screw pumps, diaphragm pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Vacuubrand Vacuu-Pure 10C Dry Screw Pump, Chemical Resistant, 100-230 V, 50/60 Hz, US Plug, 20751003
Vacuubrand Vacuu-Pure 10 C Technical Data:
| Technical data | Unit | |
|---|---|---|
| Max. pumping speed | m3/h | 9 |
| Ultimate vacuum (abs.) | mbar | 5 x 10-3 (at 1013 mbar ambient pressure) |
| Max. inlet pressure (abs.) | atmospheric pressure | |
| Max. outlet pressure (abs.) | 15 mbar above atmospheirc pressure | |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Inlet connection | small flange KF DN 25 | |
| Outlet connection | small flange KF DN 25 | |
| Rated motor power | kW | 0.7 |
| Protection Class | IP 20 | |

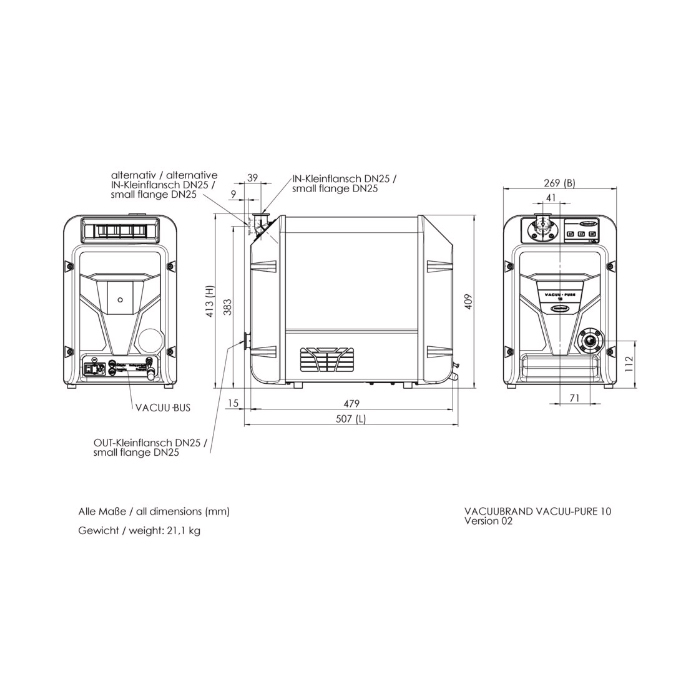

| Dimensions (L x W x H), (Approx.) | mm | 507 x 269 x 413 |
| Weight (Approx.) | kg | 21.5 |
| Noise (sound pressure level), uncertainty 3 dBA | dBA | 55 |
| Items supplied | Pump completely mounted, ready for use, connection with small flange KF DN 25 (2x centering and clamping rings included), with manual. |
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Vacuu-Pure screw pumps, diaphragm pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
