- Exhaust Damper
- Simple Control Panel
- Operating Temp. Range: Room Temp. +15 °C~200 °C | +59 °F~392 °F
- DF Series

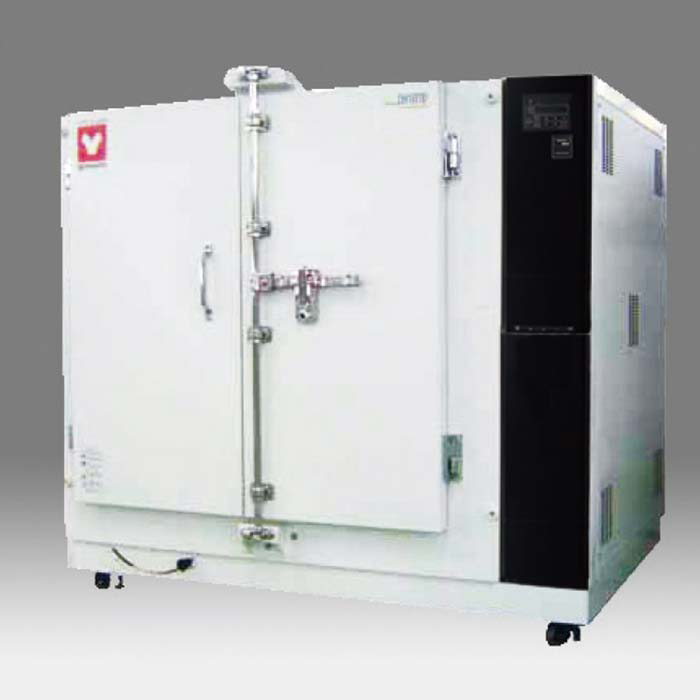

Yamato DF832 Fine Oven, Large Capacity, Forced Air Circulation/Ventilation, DF832
Yamato DF832 Fine Oven Features:
- Simple control panel
- Quick exhaust and cooling of inside chamber due to exhaust damper
- Operating temp. range: Room temp. +15 °C~200 °C | +59 °F~392 °F
- Temperature fluctuation: ±0.5 °C (at 200°C) | 32.9 °F (at 680 °F)
- Increased safety functions
DF832 Fine Oven / DF832 Overview:
Yamato's high-capacity, high-performance fine ovens are engineered to deliver high throughput with precise temperature control and an exhaust damper. From drying food samples to curing microchips, it supports a wide range of heating applications, making it a fundamental instrument for any lab.
DF832FineOven Applications:
- Healthcare
- Pharmaceuticals
- Transportation
- Technology
- Forensics
- Heating and drying
A&J Vacuum services and repairs all Yamato products available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Yamato DF832 Fine Oven, Large Capacity, Forced Air Circulation/Ventilation, DF832
Yamato DF832 Fine Oven Technical Data:

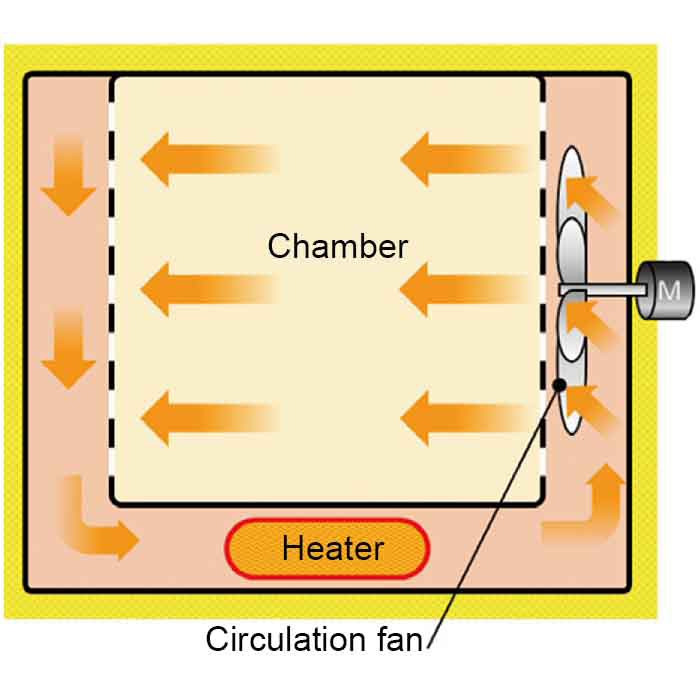

| System | Forced air circulation and ventilation |
| Operating temp. range | Room temp. +15 °C~200 °C | +59 °F~392 °F |
| Temperature fluctuation | ±0.5 °C (at 200°C) | 32.9 °F (at 680 °F) |
| Temperature slope |
15 °C (at 200 °C) | 59 °F (at 392 °F) |
| Temperature controller | PID Z control |
| Temp setting method | Digital setting with ▲▼ keys |
| Timer | 0 min~99 hrs 59 min (Resolution: 1 minute or 1 hour) |
| Operation function | Fixed temperature operation, Program operation (maximum 99 steps, up to 99 patterns, repeat operation function) Duration/time select timer operation function (fixed temperature operation, auto start/auto stop/quick auto stop, program operation auto start) |
| Additional functions | Accumulated Power on and Operation Time (up to 65,535 hours); Calendar Time (24 hours); Calibration Offset; Monitor Display of Accumulated Power Consumption, Total CO₂ Emission, and Heater operating Output; Power Recovery Mode; User Settings Save and Restore Function; Fan Speed Setting Function |
| Sensor | K-thermocouple (double sensor) |
| Heater |
Stainless steel pipe heater with a fan |
| Fan motor | Stainless steel axial flow fan (capacitor motor: 20W), Two motors used for Model 1032 |
| Cable port | I.D. φ30mm (rear) |
| Heat insulator | Glass wool |
| Other additional structure | Exhaust damper (manual operation) |
| Safety device | Self-diagnostic functions (temp. sensor error, heater disconnection, SSR short-circuit, automatic overheat prevention), door switch, fan failure detection, key lock, independent overheat protection, electric leakage breaker with over current protection |
| Power supply 50/60 Hz | 3 phase AC220V 13.5A (no plug, round terminal) |
| Internal dimensions WxDxH | 800 x 800 x 800 mm | 32 x 32 x 32 in |
| External dimensions WxDxH | 1500 x 1015 x 1330 mm | 59.1 x 40 x 52.4 in |
| Shelf support qty. / pitch | 10 steps / 76mm / 3in |
| Internal capacity | 512L |
| Weight | ~350kg | 772lb |
| Shelf / bracket | 3 pcs. / 6 pcs. |
