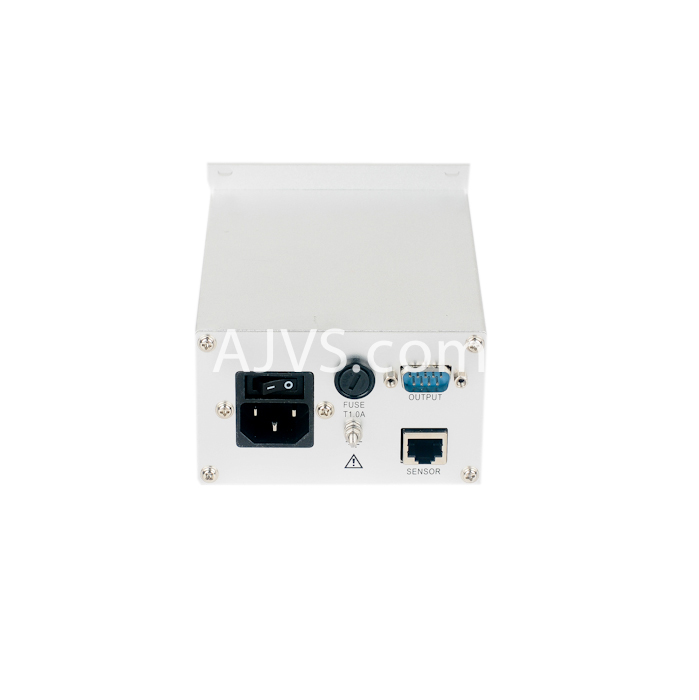

AGD100 Active Gauge Display, ADG 100
Condition:
New
Item#:PN18603
Mfr Part#:ADG100
Manufacturer:Agilent Technologies / Varian
Features:
Agilent AGD-100 ACTIVE GAUGE DISPLAY, ADG 100
Agilent / Varian AGD 100 Overview:
AGC-100 is a single channel controller compatible with the FRG 7xx, PVG-5xx, PCG-75x and CDG-500 series of active gauges and automatically identifies the active gauge connected.
AGD-100 is a low cost single channel display option for the FRG-700/702, PVG-5xx and PCG-75x series of active gauges.
Both units have user selectable measurement unit (mbar, Torr, Pascal), and adjustable setpoint control.
Agilent / Varian AGD 100 Features:
- Simplified setup with automatic identification of Agilent active gauges
- Universal compatibility with user-selectable pressure units (mbar, Torr, Pascal)
- Utilize pressure readings to perform critical operations

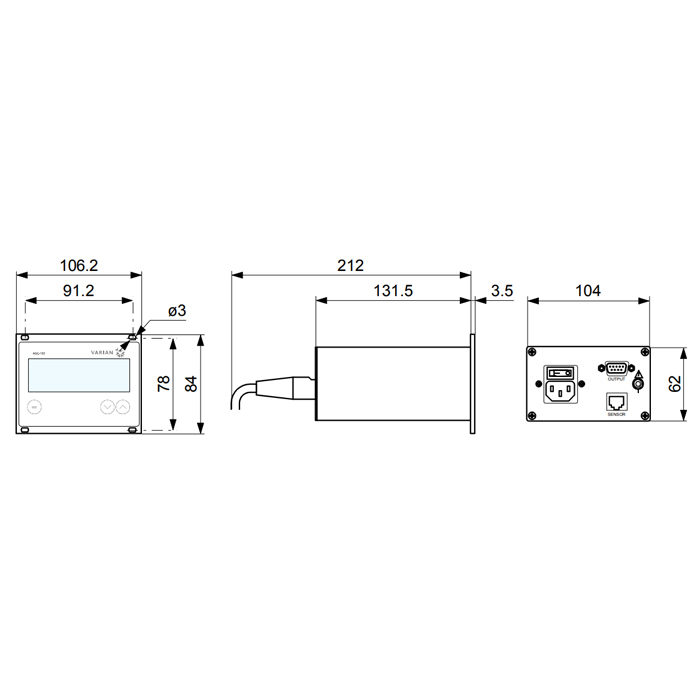

Agilent / Varian AGD 100 Dimensions[mm]:
A&J Vacuum Services offers full repair/service of Agilent Controllers, along with all other brands offered on our website. AJVS also services Agilent turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Agilent AGD-100 ACTIVE GAUGE DISPLAY, ADG 100
Agilent / Varian AGD 100 Technical Data:
| Measurement channels | One (1) |
| Measurement range | 2 x 10-10 to 1500 mbar (1.5 x 10-10 to 1125 Torr) |
| Measurement unit (selectable) | Mbar, Torr, Pascal |
| Rate A/D Converter |
10/sec 16 bit |
| Setpoints Setpoint relays Channel assignment Relay contact Hysterisis Contact rating Connector |
One (1) One (1) Potential free change over contact Adjustable 30 VAC/1A; 60 VDC/0.5A D-Sub, 9 pin, male |
| Display | LED |
| Analog output Range Connector |
0-10.3 V, sensor analog output signal D-Sub, 9 pin, male |
| Supply | 90-250 V, 50/60 Hz |
| Consumption | < 30W |
| Operation Temperature (ambient) | 5 to 50 °C |
| Digital Interface (AGC-100 only) | RS-232C ; D-Sub, 9 pin, female |
