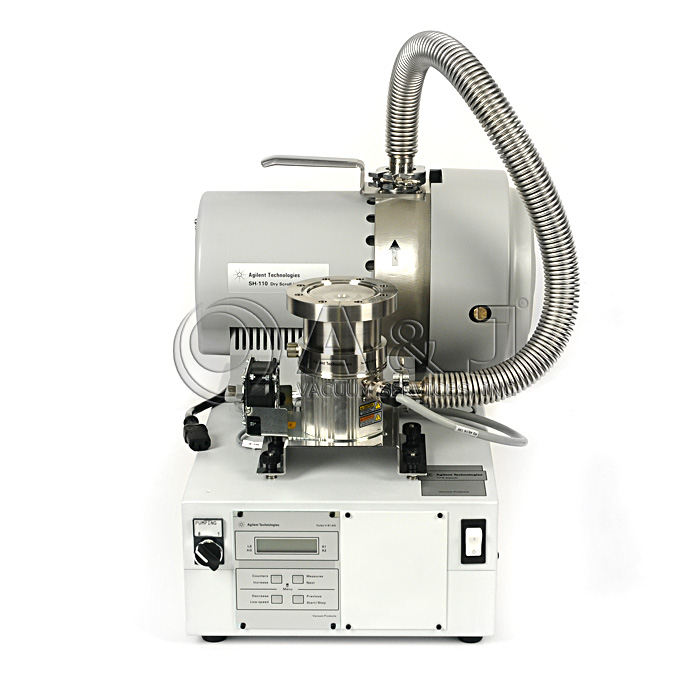

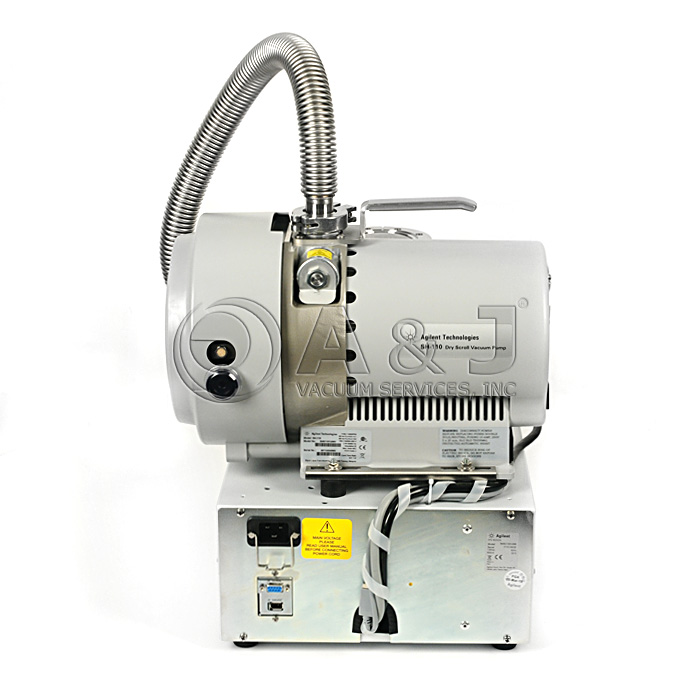

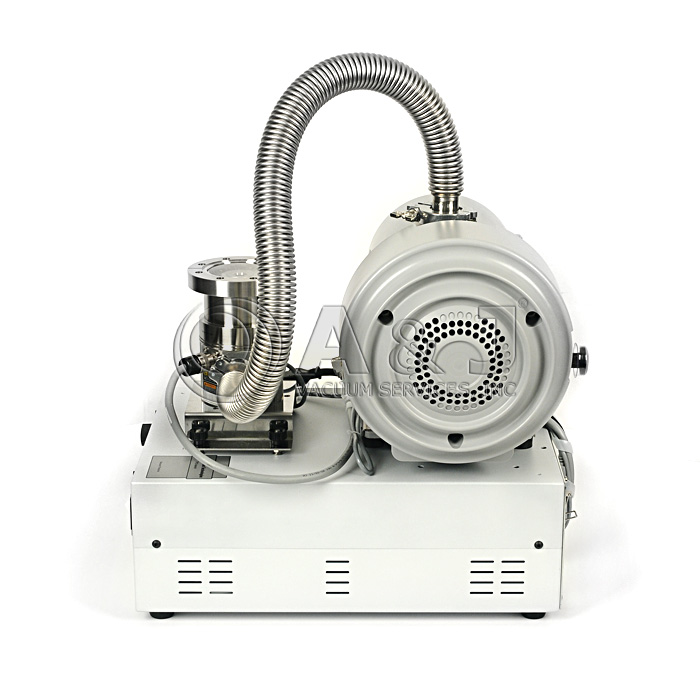

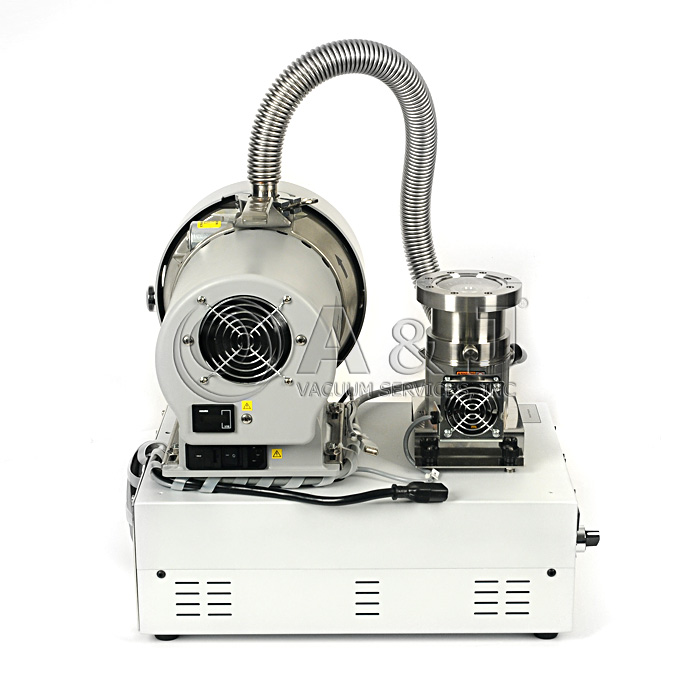

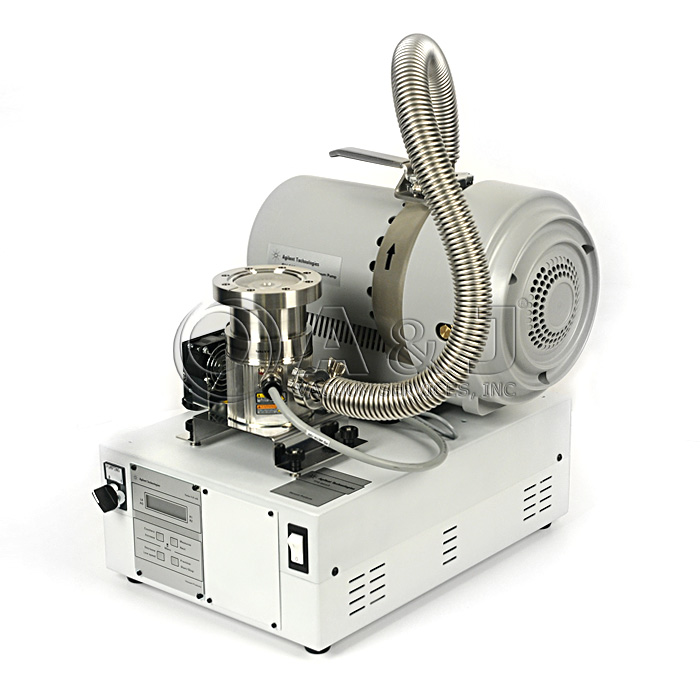

Agilent TPS Bench Turbo Pumping Station, TV 81 Navigator Turbo Pump, SH 110 Dry Scroll Pump, Complete Station, CF 63, 110 V, 60 Hz, G8700A-010-022-036

Agilent TPS Bench Turbo Pumping Station, TV 81 Navigator Turbo Pump, SH 110 Dry Scroll Pump, Complete Station, CF 63, 110 V, 60 Hz, G8700A-010-022-036

TPS Bench Turbo Pumping Station / G8700A-010-022-036 Overview:

The TPS-bench is an integrated system with a turbo-molecular pump for high and ultra-high vacuum applications associated with its relevant controller and its primary pump. The system can pump any type of gas or gas compound. It is not suitable for pumping liquids or solid particles.

The pumping action is obtained through a high speed turbine driven by a high-performance 3-phase electric motor.

Turbo Pump:

The turbopump consists of a high frequency motor driving a turbine fitted with many bladed stages and Macrotorr stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end.

The turbine is made of high-strength, light aluminum alloy, and is machined from a single block of aluminum. The turbine blades have five different angles, from 44º to 12º, while the Macrotorr stages are in the form of discs.

Front Panel:

• Main Switch

It is a protection thermal switch able to provide electrical power to the system protecting all the devices integrated in the system against overcurrents or shortcircuits. The nominal current of the switch is fitted in according to the system configuration. By means of the Main Switch you provide power to the system activating the TMP controller and its ability to read pressure by means of an optional gauge (if connected).

• TMP Controller

The integrated controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of a PCB which includes a power supply with a 3-phase AC output, analogical and input/output section, microprocessor and digital section. The controller recognizes the mains presence and converts the single phase AC mains supply into a 3-phase, medium frequency output which is required to power the pump.

• Pumping Selector

TPS-bench versions equipped with TV81M or TV301 include an electrical selector named “Pumping” on the left side of the front panel. It is aimed to pumps management (ON/OFF). By means of “Pumping” selector you are able to start pumping; activating the pumping effect of TMP an Foreline pump.

Foreline Pump:

TPS-bench can be equipped both with a dry pump (scroll type) or with an oil sealed Rotary Vane Pump.

TPS-bench versions equipped with a scroll pump are free of contaminating agents and therefore are suitable for applications requiring “clean” vacuum.

A&J Vacuum repairs / rebuilds and services all Agilent TPS Turbo Pumping Stations, along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Turbo Pumps, and Turbo Pump Systems. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
