- SCFM Rated Flow: 11
- 99#37; removal efficiency standard to 25 microns
- Temp (continuous): min -26°C (-15°F) max 104°C (220°F)
- Durable carbon steel
Shopping Cart ( )
AJVS Exhaust Filter Discharge Silencer, EFS Series, KF 25, EFS-07-NW25/1, Media: Polyester
Condition:
New
In Stock
Item#:PN17767
Mfr Part#:A50597000 / EFS-07-NW25/1
Manufacturer:AJVS
Features:
AJVS Exhaust Filter Discharge Silencer, EFS Series, KF 25, EFS-07-NW25/1, Media: Polyester
AJVS Silencer Filter for Edwards XDS5, XDS10 nXDS6i, nXDS10i and nXDS15i scroll pump silencer replacement for A505-97-000, EFS Series NW25
Pfeiffer Vacuum Hiscroll 6, Hiscroll 12 and Hiscroll 18
AJVS EFS Silencer Features:
- Patented high grade filter element w/built-in vacuum tight gasket seal which creates a positive seal between housing hemispheres and a new seal with each element
- Tubular silencing design - tube maximizes attenuation and air flow while minimizing pressure drop
- Corrosive resistant carbon steel construction with powder coated finish
- Temp (continuous): min -15° F ( -26° C) max 220° F (104° C)
- Seamless drawn housings - no welds to rust or vibrate apart
- Compact design combines both filtration efficiency and noise reduction
- Integrated inlet diffuser optimizes sound attenuation

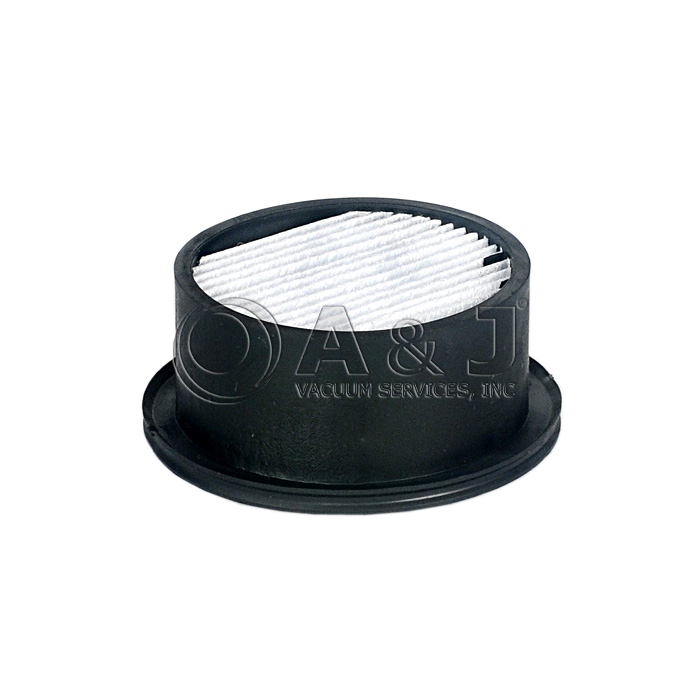

- Polyester Element: 99% removal efficiency standard to 25 microns
- Flexible mounting capabilities: vertically or horizonally
AJVS EFS Silencer Applications:
- Vacuum Pump-Rotary Piston
- Vacuum Pump-Rotary Vane
- Scroll Dry Pump
- Vacuum Pump-Venturi
- Silence irritating pump exhaust noise
AJVS EFS Silencer Options:
- EPA - 99.97% D.O.P. efficiency to 0.3 micron
- Pressure relief valve
- Zinc clear plated finish
- Custom inlet connections to match pump discharge
- Straight through versions to remote pipe exhaust

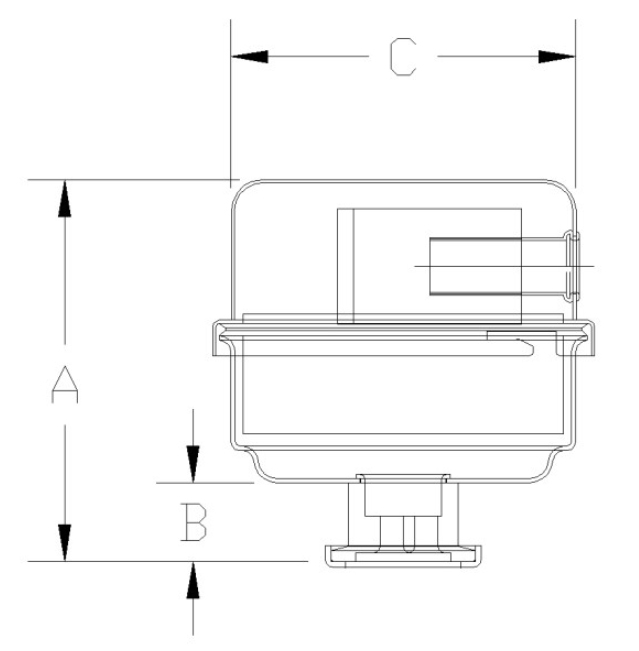

AJVS EFS Silencer Dimensions:
A: 3.75 inch
B: 0.88 inch
C: 3.25 inch
A&J Vacuum Services offers full repair/service of AJVS Silencer, along with all other brands offered on our website. AJVS also services AJVS turbo pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
AJVS Exhaust Filter Discharge Silencer, EFS Series, KF 25, EFS-07-NW25/1, Media: Polyester
AJVS Silencer Filter for Edwards XDS5, XDS10 nXDS6i, nXDS10i and nXDS15i scroll pump silencer replacement for A505-97-000, EFS Series NW25
Pfeiffer Vacuum Hiscroll 6, Hiscroll 12 and Hiscroll 18
AJVS EFS Silencer Technical Data:
| Rated Flow: | 11 SCFM |
| 99% removal efficiency standard to 25 microns | |
|
Temp (continuous): min -15° F ( -26° C) max 220° F (104° C) |
|
| Durable carbon steel | |
| Media: | Polyester |
A&J Vacuum Services offers full repair/service of AJVS Silencer, along with all other brands offered on our website. AJVS also services AJVS turbo pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
