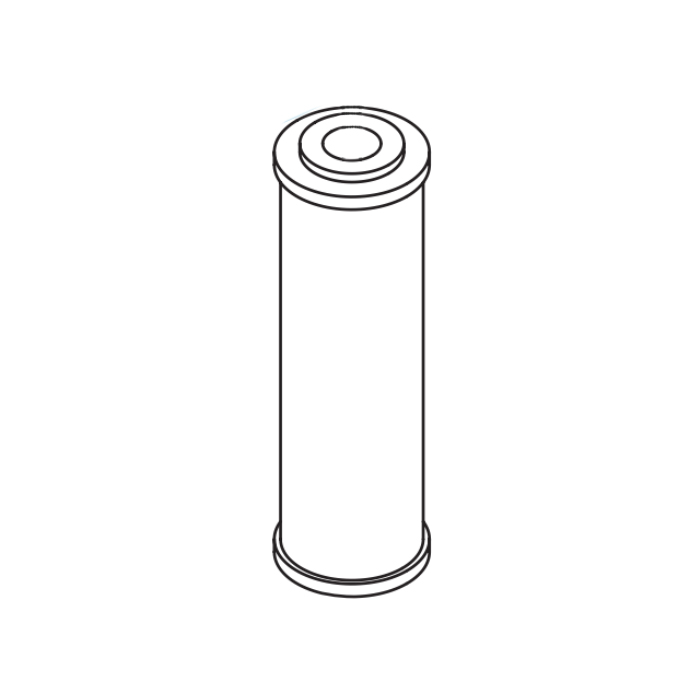

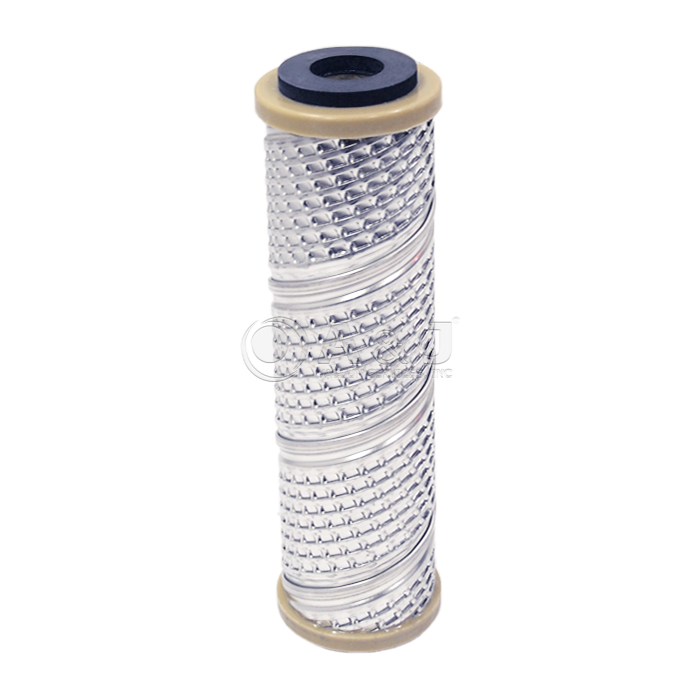

Pfeiffer Adixen Replacement Cartridge Activated Alumina for DE External Oil Filteration System, 068880, Qty. 1
Pfeiffer Adixen Activated Alumina Replacement Cartridge 068880 Overview:
The Pfeiffer Adixen DE 1DE 2 Activated Alumina Oil Filtration replacement cartridge.
Alcatel Activated Alumina replacement cartridge for DE1 and DE2
- Application activated alumina: Mineral acids, Lewis acids, polar media
A&J Vacuum also repair / rebuild and service Adixen DE 1 / 068991 Adixen Pfeiffer DE 2 Vacuum Pump Oil Filtration Systems, and all other Alcatel Adixen vacuum pumps along with Adixen Dry Pumps, and Turbo Pump repair as well./. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

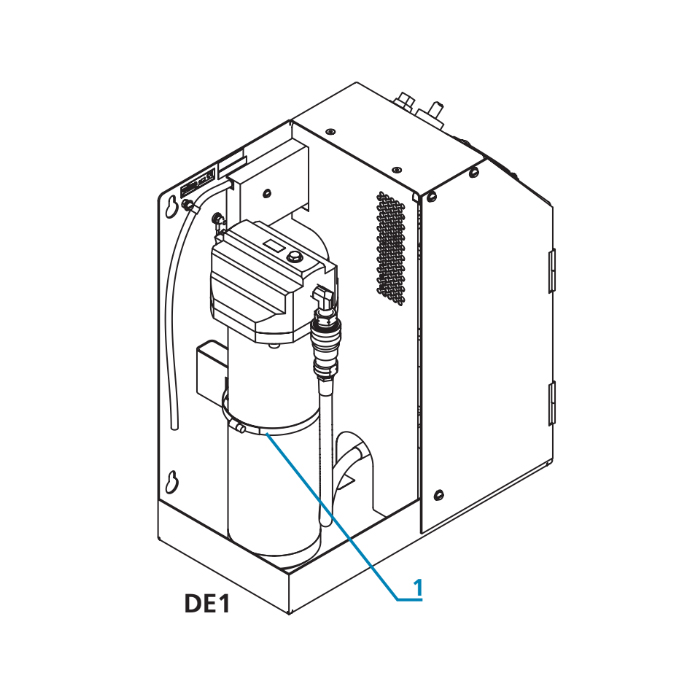

Pfeiffer Adixen DE 1 External Oil Filter, 110 VAC, 60 Hz, For Pascal, DuoLine™, UnoLine Plus, 068991
Pfeiffer Adixen DE1 Oil Filtration System 68991 Overview:
The Pfeiffer Adixen DE 1 Oil Filtration System is design to filter Vacuum Pump oil. Pfeiffer Adixen Pascal series pump, Pfeiffer Vacuum DuoLine™, UnoLine Plus
DE1 and DE2 external oil filters are one solution for extending the life of both the pump and the oil.
They are used in some vacuum technology applications, using corrosive gases, or hazardous, or expensive
fluids.
- Ion implantation source pumping.
- Plasma Etching.
- Reactive Ion Etching.
- Etching.
- Freezze-drying.
Adixen DE external oil filter is a stand-alone unit consisting of a magnetically driven gear pump which makes circulate oil
through filtration cartridges. According to filtration media and number of cartridge, DE filter retains solid particles
(mechanical filtration) and/or neutralize corrosive products contained in the oil (chemical filtration) of the pump.
- DE 1 / 068991 Filter includes 1 cartridge. Factory supply is an activated alumina cartridge
- Furthermore, cartridges with cellulose and activated charcoal are available
- Application activated alumina: Mineral acids, Lewis acids, polar media
- Applications activated charcoal: Chlorine and chlorinated media, nitrous vapor, ammonia
- Applications cellulose: Filtration of particles from operating fluid
- Customer benefit: Longer life time of operating fluid and pump
A&J Vacuum also repair / rebuild and service Adixen DE 1 / 068991 Adixen Pfeiffer DE 2 Vacuum Pump Oil Filtration Systems, and all other Alcatel Adixen vacuum pumps along with Adixen Dry Pumps, and Turbo Pump repair as well./. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

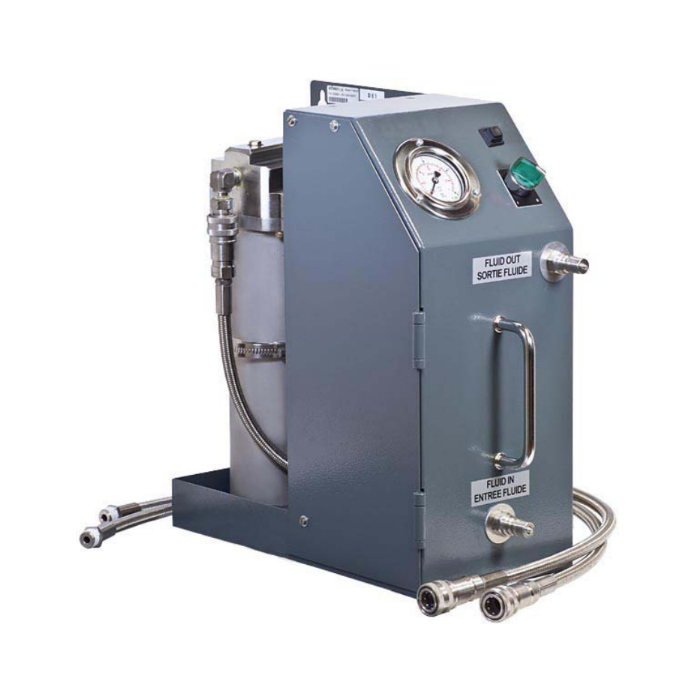

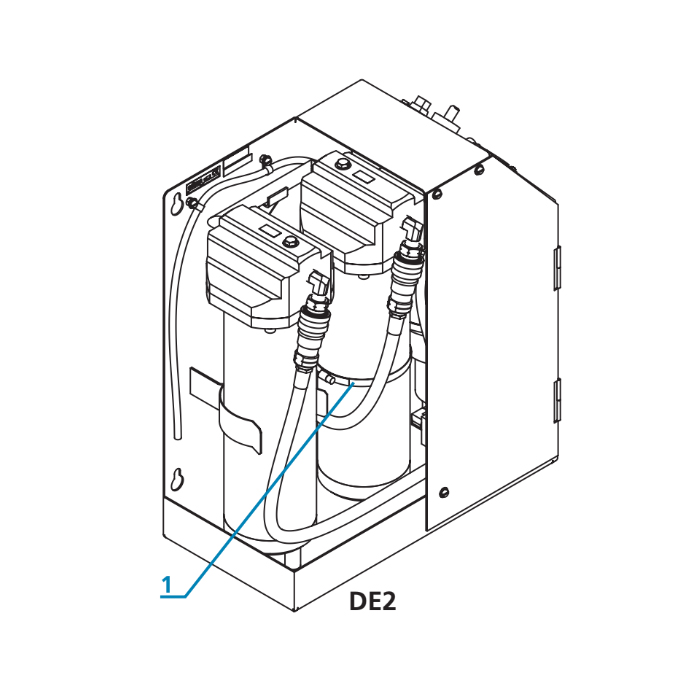

Pfeiffer Adixen DE 2 External Oil Filter, 110 VAC, 60 Hz, For Pascal, DuoLine™, UnoLine Plus, 104375
Pfeiffer Adixen DE2 Oil Filtration System 68991 Overview:
The Pfeiffer Adixen DE 2 Oil Filtration System is design to filter Vacuum Pump oil. Pfeiffer Adixen Pascal series pump, Pfeiffer Vacuum DuoLine™, UnoLine Plus
DE1 and DE2 external oil filters are one solution for extending the life of both the pump and the oil.
They are used in some vacuum technology applications, using corrosive gases, or hazardous, or expensive
fluids.
- Ion implantation source pumping.
- Plasma Etching.
- Reactive Ion Etching.
- Etching.
- Freezze-drying.
Adixen DE external oil filter is a stand-alone unit consisting of a magnetically driven gear pump which makes circulate oil
through filtration cartridges. According to filtration media and number of cartridge, DE filter retains solid particles
(mechanical filtration) and/or neutralize corrosive products contained in the oil (chemical filtration) of the pump.
- DE 2 / 104375 Filter includes 1 cartridge. Factory supply is an activated alumina cartridge
- Furthermore, cartridges with cellulose and activated charcoal are available
- Application activated alumina: Mineral acids, Lewis acids, polar media
- Applications activated charcoal: Chlorine and chlorinated media, nitrous vapor, ammonia
- Applications cellulose: Filtration of particles from operating fluid
- Customer benefit: Longer life time of operating fluid and pump
A&J Vacuum also repair / rebuild and service Adixen DE 2 / 068991 Adixen Pfeiffer DE 2 / 104375 Vacuum Pump Oil Filtration Systems, and all other Alcatel Adixen vacuum pumps along with Adixen Dry Pumps, and Turbo Pump repair as well./. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

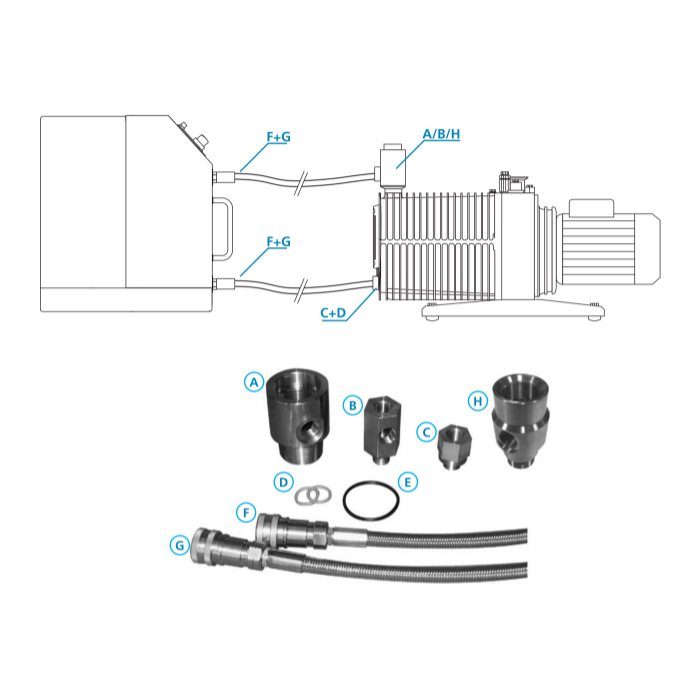

Pfeiffer Adixen Accessories kit for DE 1, DE 2 External Oil Filtration System, 068873
The Pfeiffer Adixen DE1 / DE2 Accessories Kit 068873 Overview:
The Pfeiffer Adixen DE 1 DE 2 Accessories Kit includes the following:
- Adapter tee 1 1/4F-NPT3/8F-1 1/4M for 33-63 m3/h Pascal Series pumps p/n 043008, Qty. 1
- Adapter tee G3/8F-NPT3/8F-G3/8M for 5-21 m3/h Pascal Series pumps p/n 068739, Qty. 1
- Adapter tee G3/4F-NPT3/8F-G3/4M for DUO pumps, p/n 125666, Qty. 1
- Drain adapter p/n 068876, Qty. 1
- O-ring c2.7 x d16.9, p/n 082022, Qty. 2
- O-ring c3 x d44, p/n 087926, Qty. 1
A&J Vacuum also repair / rebuild and service Adixen DE 2 / 068991 Adixen Pfeiffer DE 2 / 104375 Vacuum Pump Oil Filtration Systems, and all other Alcatel Adixen vacuum pumps along with Adixen Dry Pumps, and Turbo Pump repair as well./. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
