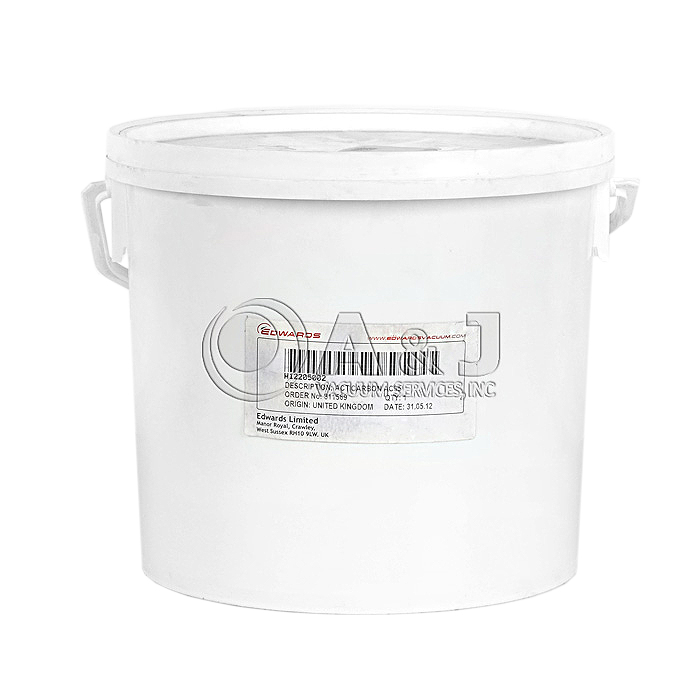

Charcoal AC35 Steam Activated Carbon Pack, 3 KG, For Edwards Vacuum ITC20K (ITC 20K) Vacuum Pump Inlet Chemical Trap, H12205002

Charcoal AC35 Steam Activated Carbon Pack, 3 KG, For Edwards Vacuum ITC20K (ITC 20K) Vacuum Pump Inlet Chemical Trap, H12205002​

Overview:

Inlet traps, dust filters and catchpots have an aluminium body with a removable metal top cover/or sight-glass. The inlet-port is at a tangent to the body to achieve a degree of centrifugal separation of solid and liquid particles.

All inlet traps, catchpots and filters of the same size have the same body. The traps and filters have containers and filter elements which fit inside the body.

To provide maximum protection to the pumping system they should be installed as close to the vacuum pumping system as is possible.

The ITC Inlet Chemical Trap protects the pump against aggressive or heavy, lacquer-forming vapours which may damage the pump or contaminate the pump oil.

Features:

• Protection against various aggressive vapors, which may attack the pump or pump oil
• Prevent high molecular weight vapors (such as might arise in a resin treatment plant), from reaching the pump. These vapors could cause lacquering or clogging.
• The standard sorbent (activated charcoal), has relatively high trapping porperties (absorbs around 25% of its own weight), even when large amounts of water vapor are being pumped.
• When filled with activated alumina on two-stage pumps, backstreaming of pump oil can be controlled
