- PN P103888
- Check Valve Mass: 0.95kg
- Inlet Connection: ISO 63
- Ultimate Vacuum: 25 x 10-3 mbar
Shopping Cart ( )

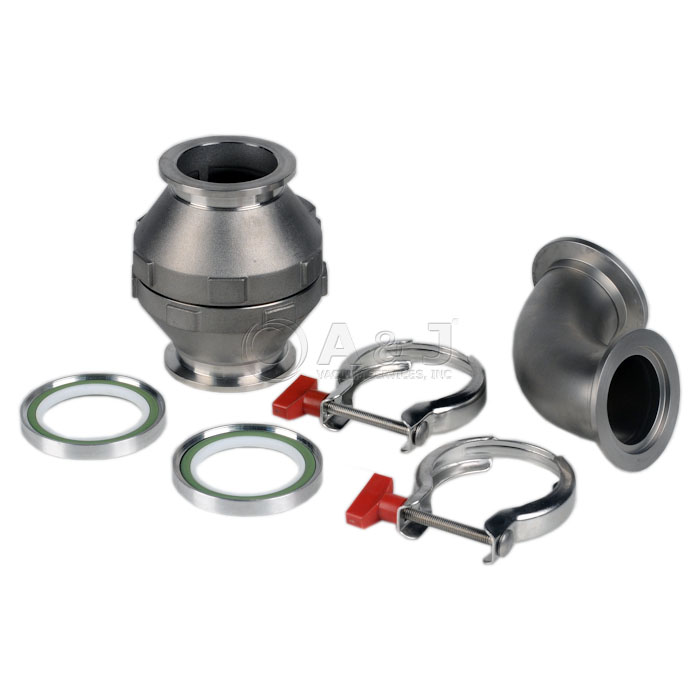

Edwards Exhaust Check Valve for iQDP Dry Vacuum Pumping System with (2) O-Rings, (2) Clamps and 90 Degree Elbow
Condition:
Demo
In Stock
Item#:PN14702
Mfr Part#:P103888
Manufacturer:Edwards Vacuum
Features:
Edwards Exhaust Check Valve for iQDP Dry Vacuum Pumping System with (2) O-Rings, (2) Clamps and 90 Degree Elbow, P103888
Edwards iQDP Overview:
The Edwards Vacuum Exhaust Check Valve is a one way valve designed to help stop air from entering back into the pumping system.
The iQ system operates at pressures between atmospheric and ultimate vacuum with no lubricating or sealing fluid in the pumping chamber(s). This ensures a clean pumping system without back-migration of oil into the system being evacuated.
Both the iQDP and QMB pumps have enclosed, water-cooled motors. The iQ system is therefore suitable for applications in clean environments where fan cooling is unacceptable.
The iQ system has a Gas Module which introduces purge gas into the iQDP pump. Three types of Gas Module are available, suitable for light, medium and harsh duty processes.
You can manually control the iQ system through an optional Pump Display Module accessory. Alternatively, you can use your process tool or other control equipment to control the operation of the iQ system through an Interface Module accessory, or you can use the iQSingle Pumpset Monitor accessory to control the operation of the iQ system.
The iQDP pump is a four-stage, positive displacement rotary pump in which pairs of intermeshing rotors (of different profiles mounted on common shafts) are held in correct phase relation by a pair of timing-gears. The timing-gears and the adjacent double-row angular contactball-bearings, are oil lubricated.
The pump has an indirect cooling-system and the pump-motor is water cooled.
A&J Vacuum Services offers full repair/service of Edwards Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Edwards Exhaust Check Valve for iQDP Dry Vacuum Pumping System with (2) O-Rings, (2) Clamps and 90 Degree Elbow, P103888
Edwards iQDP Technical Data:
| Typical Peak Pumping Speed: | 235 m3h-1 |
| Displacement: | 310 m3h-1 |
| Ultimate Vacuum: | 25 x 10-3 mbar |
| Inlet Connection: | ISO 63 |
| Outlet Connection: | NW 40 |
| Gas temperature: | 5 to 130 o C |
| Reverse flow leak tightness when clean (minimum): | 0.4 mbar l s-1 (4 x 101 Pa l s-1) |
A&J Vacuum Services offers full repair/service of Edwards Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
