- PN 900212014 / 900-212-014
- 230/460V 3Ph
- Pumping Speed: 138 CFM
- 7.5 HP
Shopping Cart ( )
Edwards Stokes 212J Microvac Piston Pump, 230/460V, 3Ph, 138 CFM, 7.5 HP Pumping Speed, 900212014 / 900-212-014
Condition:
New
Item#:PN24247
Mfr Part#:900212014 / 900-212-014
Manufacturer:Stokes
Price upon request
CONTACT US
Features:
Stokes 212J Microvac Piston Pump, 230/460V, 3Ph, 138 CFM, 7.5 HP Pumping Speed, 900212014 / 900-212-014
Stokes Vacuum 212J Overview:
The Stokes Vacuum Microvac J Series Rotary Piston Pumps have over 80 years of industrial use. The Stokes J Series Pumps are piston oil design suitable for small floor space.
The Stokes 212 J piston pumps has set the new standardsfor providing extreme durability and pumping performance.
The Stokes 212J Series operates on rotational speed which enables longest pump life cycle.
The Stokes 212J Oil Piston Pump offers the following features:
- Robust, long life and low speed rotation pump with less rotary sliding parts
- Efficient design provides maximum uptime with minimal moving parts and large clearance
- Low ultimate blank-off with maximum speed down to 1 Torr and continuous high pressure pumping up to 600 Torr
- Latest valve design virtually eliminates valve maintenance and reduces noise, while requiring lower power
- Complete and self-contained unit delivered ready to install
- Automatic lubrication system provides proper flow of oil to bearings and sealing surfaces and prevents backflow into system
- Gas ballast as standard
- Total capability includes the manufacturing and service capabilities to keep your equipment in top operation with a broad range of vacuum system accessories
- Space-saving design which saves up to 50% of valuable floor space

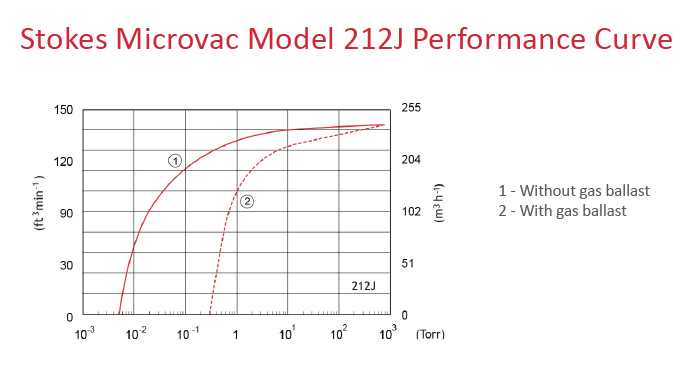

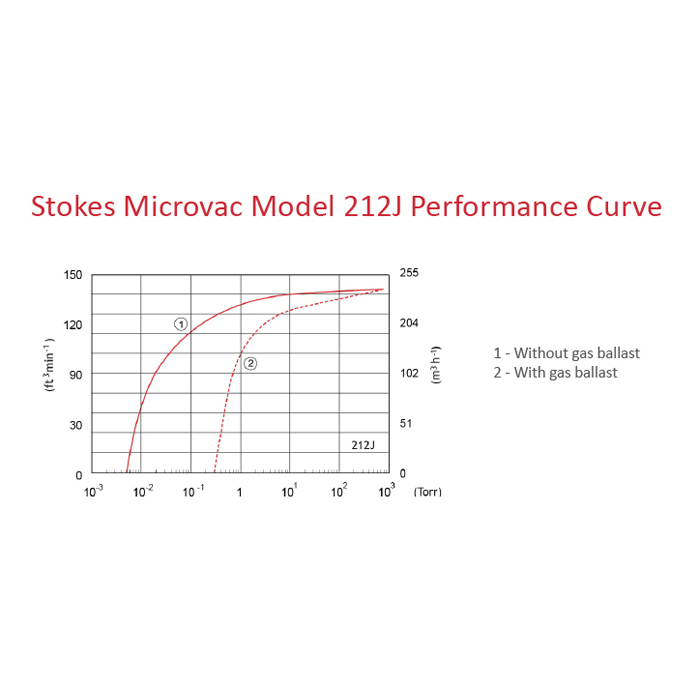

Stokes 212 Series Pumping Speed:

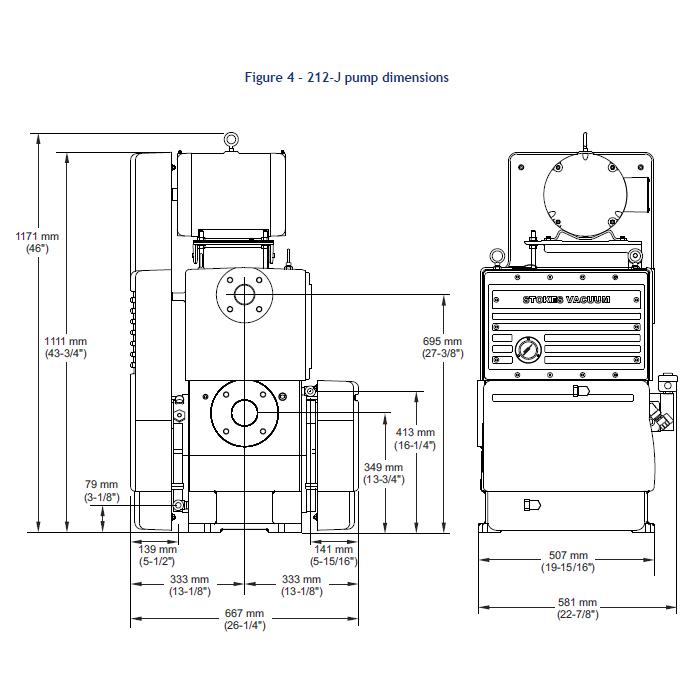

Stokes 212J Dimensions (mm):
Click Here for Edwards Stokes Pump Manual
A&J Vacuum Services / rebuilds and repairs all Stokes vacuum pumps. We service and Repair all Stokes mictovac 212, 412, 612 Series pumps, including rotary vane and rotary piston pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Stokes 212J Microvac Piston Pump, 230/460V, 3Ph, 138 CFM, 7.5 HP Pumping Speed, 900212014 / 900-212-014
Stokes 212J Technical Data:
| Displacement (swept volume) | 255 m3h-1 / 150 ft3min-1 |
| Pumping Speed | 234 m3h-1 / 138 ft3min-1 |
| Ultimate vacuum (total pressure) | |
| without gas ballast | <3.3x10-2 mbar / <2.5x10-2 Torr |
| with gas ballast | <2.6x10-2 mbar / <2x10-2 Torr |
| 50Hz Motor size (TEFC) | 5.5 kW IEC (CE variant) |
| 60Hz Motor size (TEFC) | 7.5 hp TEFC |
| Motor speed | 1800 rpm |
| Inlet connection | 3 inch ASA/ANSI flange |
| Exhaust connection | 2 inch ASA/ANSI flange or 2 inch NPT |
| Water inlet/outlet connection | ½ inch NPT |
| Recommended cooling flow @ 85°C / 30°F | 5.7 lmin-1 / 1.5 galmin-1 |
| Water vapour pumping rate | 5 kg h-1 / 11 lb h-1 |
| Oil capacity | 15 litre / 4 gal |
| Recommended oil | V lube F |
| Noise | <77 dB(A) |
| Weight | 431 kg / 950 lbs |
Click Here for Edwards Stokes Pump Manual
A&J Vacuum Services / rebuilds and repairs all Ulvac vacuum pumps. We service all Ulvac PKS-016, PKS-030, PKS-070 Series pumps, including rotary vane and rotary piston pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
