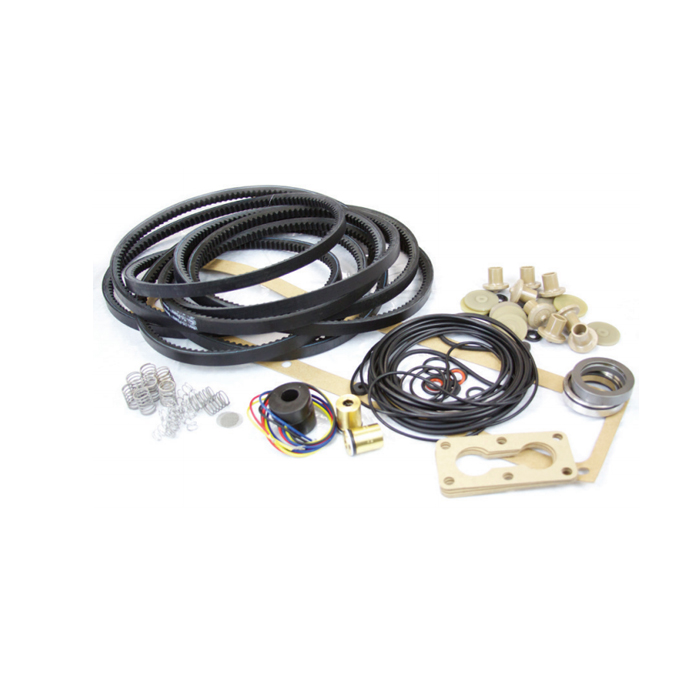

Stokes 212J Repair Kits with Coil, 212 J, 429638016RK
Condition:
New
Item#:PN12925
Mfr Part#:429638016RK
Manufacturer:Stokes
Features:
Stokes Repair Kits with Coil, 212 J, 429638016RK
Stokes 212J Service Repair kits include all components of seal & gasket kits, plus V-Belts, Solenoid Coil, Bearings (AS NOTED) & Other components. We also do minor and major repairs for all Stokes Rotary Vane Vacuum Pumps.
Stokes Repair Kits Components:
| Description | Part number | QTY |
| Gasket Valve Plate | 243-926-002 | 2 |
| Poppet | 607-415-001 | 4 |
| Screen Wire Mesh 24 | 085-050-128 | 1 |
| Solenoid Coil 220/440V 50/60Hz 12W | 085-029-430 | 1 |
| V Belt A Section 91.3"Pl Set of 3 | 085-013-669 | 1 |
| O Ring 1 3/4" ID X .139" Section | 085-050-116 | 2 |
| O Ring 15.375" X .210" Section | 085-050-737 | 1 |
| O Ring 5/8" ID X .139" Section Viton | 085-041-609 | 4 |
| O Ring 4 7/8" ID X 5 1/8" OD X .139 Sect | 085-019-755 | 2 |
| O-Ring 1/2 ID X .139 | 085-050-115 | 1 |
| O-Ring 13 1/2 ID X.I | 085-050-117 | 2 |
| O-Ring 15/16 ID X .I | 085-050-192 | 1 |
| O-Ring 18 ID X .210 | 085-050-761 | 1 |
| Seal 1/4 ID X 5/8 OD | 085-050-120 | 1 |
| Seal Rotary Oil | 085-029-600 | 2 |
| Compression Spring H | 085-052-306 | 4 |
| Insert Valve Cap 148 212 412 | 607-416-001 | 4 |
| Valve CHK CRTG BRS B | 085-050-122 | 1 |
| Spring Valve | 274-172-001 | 4 |
| Valve Cover Plate GA | 246-763-002 | 1 |
Click Here for Edwards Stokes Pump Manual
A&J Vacuum Services / rebuilds and repairs all Stokes vacuum pumps. We service and Repair all Stokes mictovac 212, 412, 612 Series pumps, including rotary vane and rotary piston pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Stokes Repair Kits with Coil, 212 J, 429638016RK
Stokes 212J Repair Service kits include all components of seal & gasket kits, plus V-Belts, Solenoid Coil, Bearings (AS NOTED) & Other components. We also do minor and major repairs for all Stokes Rotary Vane Vacuum Pumps.
Stokes Repair Kits Components:
| Description | Part number | QTY |
| Gasket Valve Plate | 243-926-002 | 2 |
| Poppet | 607-415-001 | 4 |
| Screen Wire Mesh 24 | 085-050-128 | 1 |
| Solenoid Coil 220/440V 50/60Hz 12W | 085-029-430 | 1 |
| V Belt A Section 91.3"Pl Set of 3 | 085-013-669 | 1 |
| O Ring 1 3/4" ID X .139" Section | 085-050-116 | 2 |
| O Ring 15.375" X .210" Section | 085-050-737 | 1 |
| O Ring 5/8" ID X .139" Section Viton | 085-041-609 | 4 |
| O Ring 4 7/8" ID X 5 1/8" OD X .139 Sect | 085-019-755 | 2 |
| O-Ring 1/2 ID X .139 | 085-050-115 | 1 |
| O-Ring 13 1/2 ID X.I | 085-050-117 | 2 |
| O-Ring 15/16 ID X .I | 085-050-192 | 1 |
| O-Ring 18 ID X .210 | 085-050-761 | 1 |
| Seal 1/4 ID X 5/8 OD | 085-050-120 | 1 |
| Seal Rotary Oil | 085-029-600 | 2 |
| Compression Spring H | 085-052-306 | 4 |
| Insert Valve Cap 148 212 412 | 607-416-001 | 4 |
| Valve CHK CRTG BRS B | 085-050-122 | 1 |
| Spring Valve | 274-172-001 | 4 |
| Valve Cover Plate GA | 246-763-002 | 1 |
Click Here for Edwards Stokes Pump Manual
A&J Vacuum Services / rebuilds and repairs all Stokes vacuum pumps. We service and Repair all Stokes mictovac 212, 412, 612 Series pumps, including rotary vane and rotary piston pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
