- Flange 63 ISO-K
- Pumping Speed: 90 m^3/h
- Ultimate Pressure: <8x10-8 mbar
- SCROLLVAC 3S Plus
Shopping Cart ( )

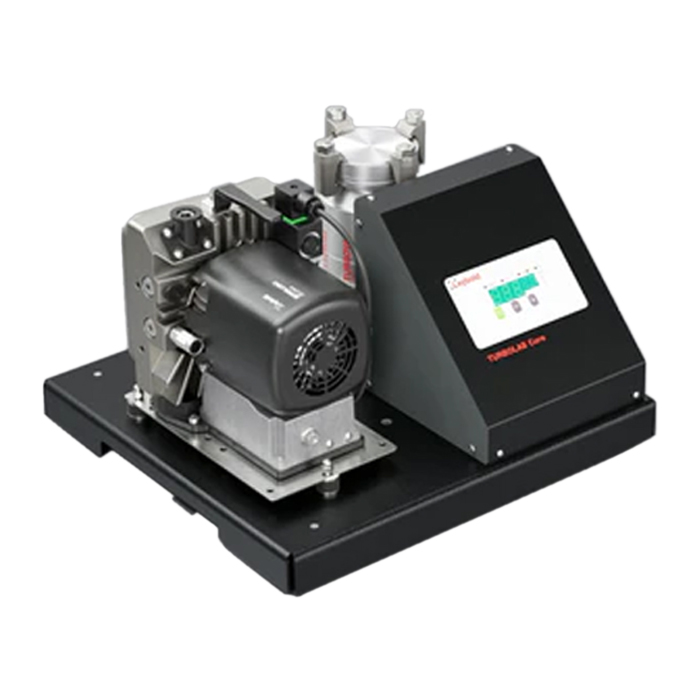

Leybold TURBOLAB Core 90i, with Scrollvac 3S+, 501591V00023100
Condition:
New
Item#:PN57636
Mfr Part#:501591V00023100
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold TURBOLAB Core 90i, with Scrollvac 3S+, 501591V00023100
Leybold TURBOLAB Core 90i Features:
- Flange: 63 ISO-K
- Pumping Speed: 90 m^3/h
- Ultimate Pressure: <8x10-8 mbar
TURBOLAB Core 90i / 501591V00023100 Overview:
The Leybold TURBOLAB Core offers a cost-effective and user-friendly solution by combining a turbomolecular pump, a backing pump, and a basic controller, all mounted on a sturdy baseplate. This integrated design makes it an ideal choice for a wide range of general laboratory applications.
TURBOLABCore90i Applications:
- High energy physics / accelerators
- High vacuum and ultra-high vacuum systems
- Analytics
- Surface science
- Industrial vacuum applications
- Small coating processes
- Custom mass spectrometers and leak detectors
- Residual gas analyzers
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump Station repair along with all other Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Leybold TURBOLAB Core 90i, with Scrollvac 3S+, 501591V00023100
Leybold TURBOLAB Core 90i Technical Data:
| Connector Electrical Power | IEC EN60320 C14 - Male (for C13 plug on mains cable) |
| Connection Outlet Flange | DN 16 ISO-KF (NW16) |
| Connection Inlet Flange | DN 63 ISO-K |
| Cooling Method | Air Cooling (forced - fan) |
| Dimension Height | 0.231 m |
| Dimension Length | 0.420 m |
| Dimension Width | 0.300 m |
| IP Rating | IP20 |
| Power Supply Frequency | 50 Hz 60 Hz |
| Power Supply Phase | 1-Ph |
| Power Supply Voltage | 1Ph 115V 50/60Hz |
| Weight | 22 kg | 49 lb |
| Connection Inlet / Outlet Flange | DN 63 ISO-K | DN 16 ISO-KF (NW16) |
| Classification Dry or Wet Pump | Dry |
| Classification Product Pressure Range |
High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar |
| Classification Region | US |
| Power at Ultimate | 500 W |
| Pressure Ultimate | 8.000 × 10⁻⁸ mbar |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.090 m³/s |
| Altitude Max | 2000 m |
| Variant of Backing Pump | SCROLLVAC 3S plus |
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump Station repair along with all other Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
