- Single-Phase High Performance Rotary Vane Pump
- Pumping speed at 50 Hz 5 m³/h | 2.94 cfm | 83.33 l/min
- Standardized Inlet & Outlet Flanges (DN 25 Model)
- Mains requirement: voltage 50 Hz 180 – 254 V
Shopping Cart ( )
Pfeiffer 2005 C1 Pascal Rotary Vane Pump, Single Phase, 180-254 V, 50/60 Hz, 2000043844 / 205C1MHEM
Condition:
New
Item#:PN22892
Mfr Part#:2000043844 / 205C1MHEM
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer 2005 C1 Pascal Rotary Vane Pump, Single Phase, 180-254 V, 50/60 Hz, 2000043844 / 205C1MHEM

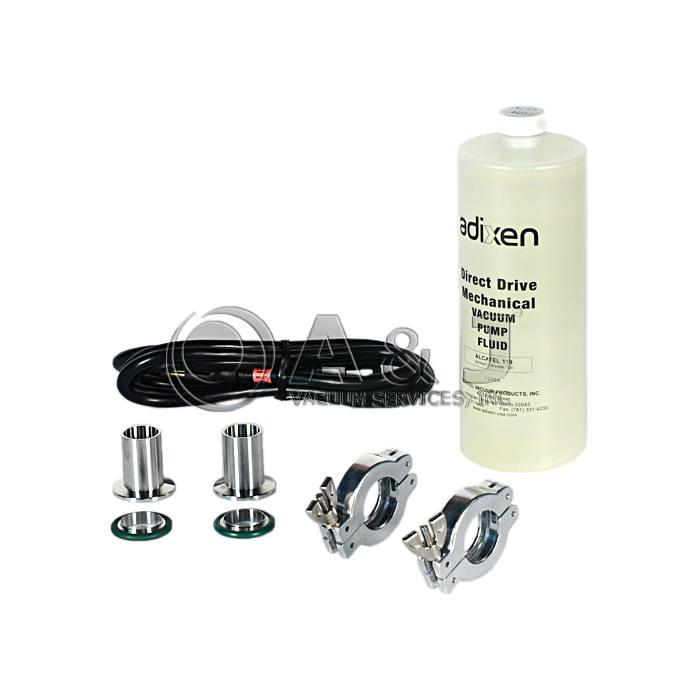

Power cable is not included. Please view the accessories tab for compatible cables.
Product Applications:
- Research and Development (Physics & Chemistry Laboratories, Universities & Research Institutes)
- Manufacturing Industries (Freeze-Drying, Pharmaceuticals, Electionic Tube Manufacture, Metallurgy, Drying Systems, Refrigeration Systems, Chemical Industry, etc.)
- Instrumentation (Mass Spectrometetry, Centrifuges, Electronic Microscopes, Leak Detection Systems, etc.)
- Semiconductor Processes (Computers, Smartphones, Other Electronic Devices)
Dimensions:
L: 228 mm
A&J Vacuum services and repairs Pfeiffer 2005 C1 Pascal Rotary Vane Pumps, along with all other Pfeiffer Rotary Vane and Turbo Pumps offered on our website. Please contact us for additional information about our service program or visit http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. If you have any questions or would like to obtain additional information, please call A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer 2005 C1 Pascal Rotary Vane Pump, Single Phase, 180-254 V, 50/60 Hz, 2000043844 / 205C1MHEM
Technical Data Product:
| Flange (in) | DN 25 ISO-KF |
| Flange (out) | DN 25 ISO-KF |
| Pumping speed at 50 Hz | 5 m³/h | 2.94 cfm | 83.33 l/min |
| Pumping speed at 60 Hz | 6 m³/h | 3.53 cfm | 100 l/min |
| Ultimate pressure | 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar |
| Ultimate pressure with gas ballast | 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2mbar |
| Ultimate pressure without gas ballast | 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar |
| Motor version | 1-ph motor |
| Mains requirement: voltage 50 Hz | 180 – 254 V |
| Mains requirement: voltage 60 Hz | 180 – 254 V |
| Mains cable | Yes, EU power cable |
| Corrosive gas version | YES |
| Operating fluid | Mineral oil |
| Rated power 50 Hz | 0.45 kW |
| Rated power 60 Hz | 0.55 kW |
| Protection category | IP43 |
| Weight | 25 kg | 55.12 lb |
A&J Vacuum services and repairs Pfeiffer 2005 C1 Pascal Rotary Vane Pumps, along with all other Pfeiffer Rotary Vane and Turbo Pumps offered on our website. Please contact us for additional information about our service program or visit http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. If you have any questions or would like to obtain additional information, please call A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Adixen Manual Instruction Pascal Series 2005, 2010, 2015, 2021 I, SD 5-21
Pfeiffer Adixen Operating Instructions Pascal Series 2005, 2010, 2015, 2021 I SD 5-21m3/h
Item#:PN05858
Mfr Part#:Elite Z
Condition: In Stock
New
In Stock
$34.95
Item#:PN05859
Mfr Part#:Elite Z
Condition: In Stock
New
In Stock
$128.00
Item#:PN15701
Mfr Part#:2000025224 / PK 050 110 / PK050110
Condition: Out of Stock
New
$51.68
Item#:PN16055
Mfr Part#:2000025173 / PK 005 930 -T / PK005930-T
Condition: In Stock
New
In Stock
$115.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
