Quick Clamp KF-25 With Wing-Nut Assembly, NW-25 Aluminum, Also known as Hinge Clamps KF 25, KF25CLA
KF-25 / NW-25 Clamp Overview:.
The Quick Clamp KF-25 with Wing-Nut Assembly is used to connect vacuum plumbing and process systems in combination with vacuum pumps or vacuum components.
The Cast Aluminum Clamps KF-25 or NW-25 Clamp is used in conjunction with a certering ring with a fitted O-ring for mating KF flanges.

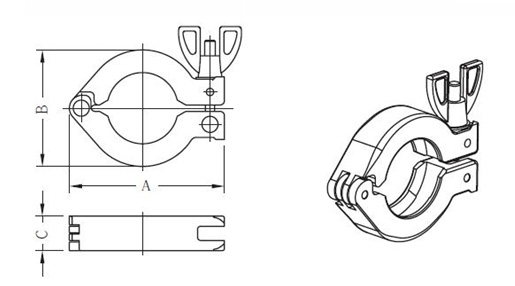

- A: 2.83 in / 72 mm
- B: 2.13 in / 54 mm
- C: 0.63 in / 16 mm
The KF 25 or NW 25 Clamps are available in the following sizes: NW 16, NW 40, NW 50
The AJVS KF 25 Vacuum Hardware Clamps are available in Aluminum or Aluminum-Nickel Plating.
KF Hardware (also referred to as NW) assemblies consist of two Flanges, a Center-Rings and an aluminum Clamp. Quick Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.
AJVS.com Offers wide selection of Vacuum Hardware, Vacuum Fittings, KF fittings, KF Elbows, KF Tees, KF vacuum Hoses, Please click below to view more KF and NW Vacuum Fittings and NW orings
Quick Clamp KF-25 With Wing-Nut Assembly, NW-25 Aluminum, Also known as Hinge Clamps KF 25, KF25CLA
KF-25 / NW-25 Clamp Overview:
The Quick Clamp KF-25 with Wing-Nut Assembly is used to connect vacuum plumbing and process systems in combination with vacuum pumps or vacuum components.
The Cast Aluminum Clamps KF-25 or NW-25 Clamp is used in conjunction with a certering ring with a fitted O-ring for mating KF flanges.
Technical Data:
- A: 2.83 in / 72 mm
- B: 2.13 in / 54 mm
- C: 0.63 in / 16 mm
|
