- Pumping speed (50 Hz): 14 m3/h
- Ultimate pressure: 5 x 10-2 hPa
- Inlet flange: DN 25 ISO-KF
- Outlet flange: DN 25 ISO-KF
Shopping Cart ( )

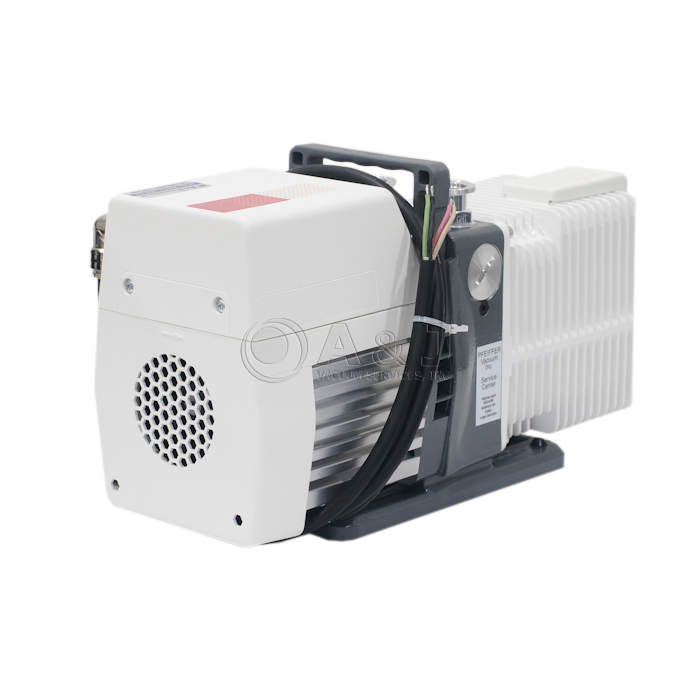

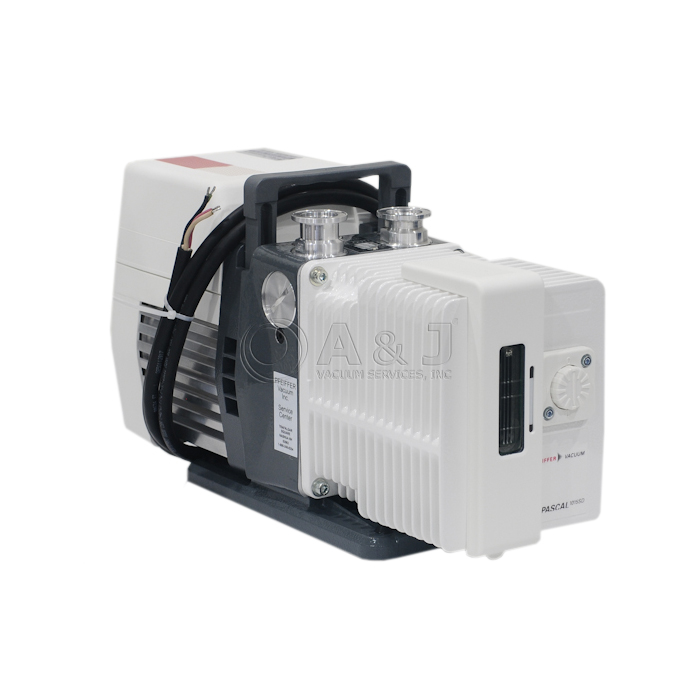

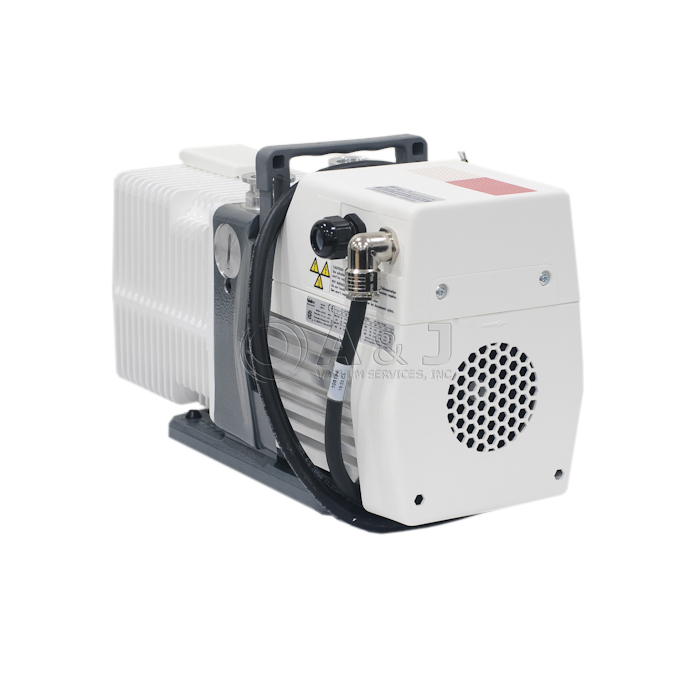

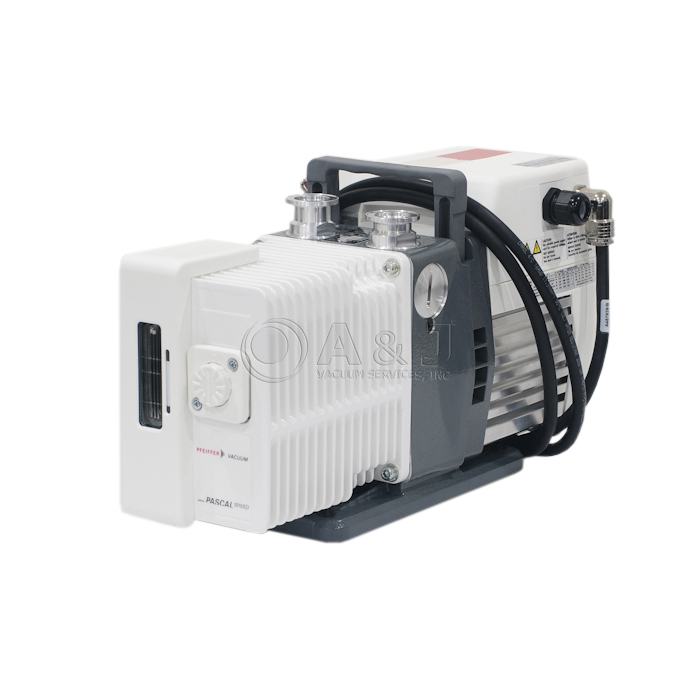

Pfeiffer Adixen 1015 SD Pascal Rotary Vane Pump, 3-phase Motor, Single Stage, 2000049032 / 115SDTHAM
Condition:
New
Item#:PN23384
Mfr Part#:2000049032 / 115SDTHAM
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer Adixen 1015 SD Pascal Rotary Vane Pump, 3-phase Motor, Single Stage, 2000049032 / 115SDTHAM
Pfeiffer Adixen 1015 SD Overview:
The Pfeiffer Adixen Pascal 1015 SD Rotary Vane Pump incorporates a direct drive motor, creating a highly effective, compact machine. An electrically-insulated fold-away handle is attached for facility when carrying. The anti-suck-back system ensures enhanced tightness of the pump during accidental or voluntary shutdowns. Additionally, the universal 3-phase motor can be disassembled independently of the remainder of the pump, without the need to drain the oil case. With regard to the case, a vertical sight glass can be used to inspect the oil level easily while filling the tank, as well as during the operation of the pump. A gas ballast enables the pumping of condensable vapors.
SD versions are delivered with Mineral oil, but a selection of high quality oils and fluids is available in the Pascal Series brochure, suitable for a wide range of applications.
The inlet and exhaust end fittings are ISO-KF standard. They are fitted vertically on the pump at delivery but can be positioned on the horizontal openings if required by operating conditions.
Pfeiffer Adixen 1015 SD Features:
- Very low ultimate pressure compared to other single-stage rotary vane pumps
- No oil mist on the exhaust: thanks to natural lubrication, also with high throughput or continuous operation
- Single-phase universal motor available, allowing an almost worldwide network coverage
- Adjustable inlet and outlet ports in horizontal or vertical orientation for better integration

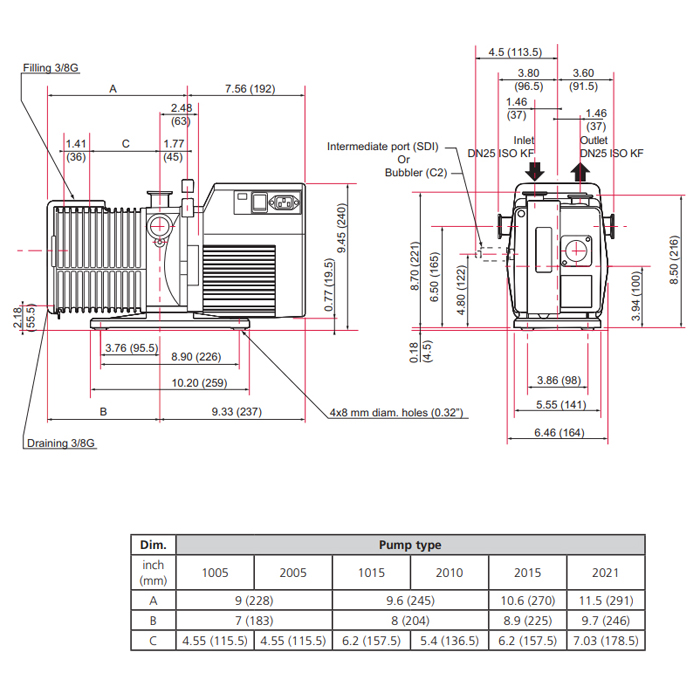

Pfeiffer Adixen 1015 SD Dimensions:
Click Here for Pfeiffer Adixen 1015 SD Manual
A&J Vacuum Services offers full repair/service of Pfeiffer 1015 SD Pascal, along with all other brands offered on our website. AJVS also services Pfeiffer Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Adixen 1015 SD Pascal Rotary Vane Pump, 3-phase Motor, Single Stage, 2000049032 / 115SDTHAM

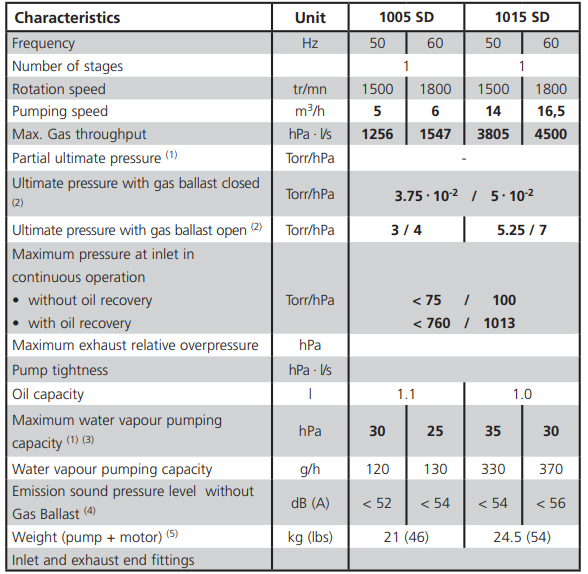

Pfeiffer Adixen 1015 SD Technical Data:
Click Here for Pfeiffer Adixen 1015 SD Manual
A&J Vacuum Services offers full repair/service of Pfeiffer 1015 SD Pascal, along with all other brands offered on our website. AJVS also services Pfeiffer Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Item#:PN07559
Mfr Part#:KF25CLA
Condition: In Stock
New
In Stock
$10.25
Item#:PN07593
Mfr Part#:KF25CRVA
Condition: In Stock
New
In Stock
$9.75
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
