- OEM Pfeiffer Adixen 3-Phase Motor
- P/N 108695
- For 2005 SD, 2010 SD, 2015 SD 2021 SD
- 200-230V, 50, 200-280 60Hz, 380-415V 50 Hz, 480V 60Hz
Shopping Cart ( )
Pfeiffer Adixen Motor for 2005, 2010, 2015 2021 SD, I, C1 and C2 Series, 3-Phase 200-230V, 50, 200-280 60Hz, 380-415V 50 Hz, 480V 60Hz, 2000050636 / 108695
Condition:
New
In Stock
Item#:PN17157
Mfr Part#:2000050636 / 108695
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Adixen Motor for 2005, 2010, 2015 2021 SD, I, C1 and C2 Series, 3-Phase 200-230V, 50, 200-280 60Hz, 380-415V 50 Hz, 480V 60Hz, 2000050636 / 108695
This brand new Adixen Pascal Series 3-Phase 3/4 HP Motor replacement p/n 108695 comes without a power cable.
This Adixen Pfeiffer Motor fits the following Adixen Pfeiffer Pump Models.
Adixen Pfeiffer I and SDI series. Pumps designed to meet the requirements of analytical instrumentation and R&D. Mass spectrometer, electronic microscopes, GC/MS, LC/MS, gas analyzers, leak detectors, sterilizers, etc.
- 2005 I
- 2010 I
- 2015 I
- 2021 I
Adixen Pfeiffer SD series. Standard pumps for several purposes (non-corrosive applications). Manufacture of light bulbs, production of TV tubes, manufacture of electronic tubes, metallurgy, centrifuges, etc.
- 2005 SD
- 2010 SD
- 2015 SD
- 2021 SD
Adixen Pfeiffer C1 series. Pumps suitable for pumping corrosive gases. R&D, laboratories, freeze-drying, pumping of solvents, etc.
- 2005 C1
- 2010 C1
- 2015 C1
- 2021 C1
Adixen Pfeiffer C2 series. Pumps with increased resistance to meet the requirements of the more aggressive processes of the semiconductor industry. Ion implantation, sputtering, etc .
- 2005 C2
- 2010 C2
- 2015 SD
- 2021 SD

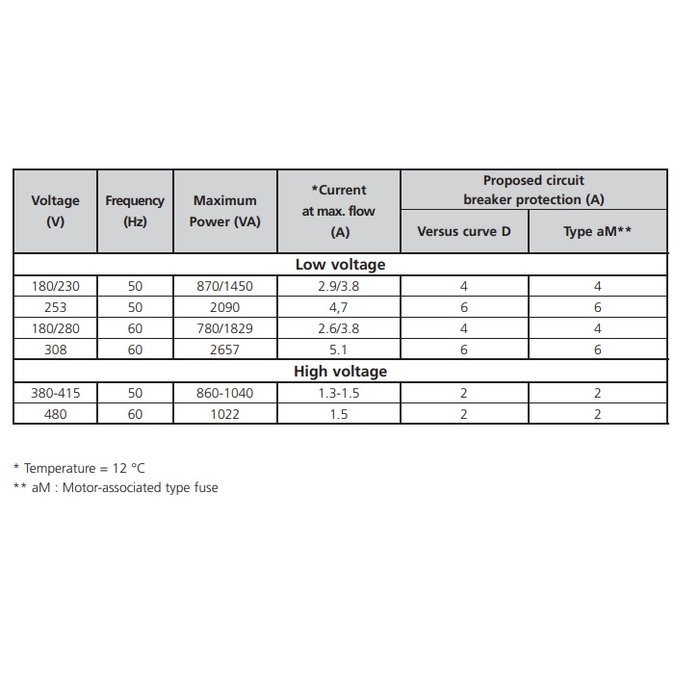

Pfeiffer Adixen Electrical Motor is certified with major international standards (UL, CSA, CE) and offers two voltage ranges:
- Low voltage: 200-230 V at 50 Hz and 200-280 V at 60Hz
- High voltage: 380-415 V at 50 Hz and 480 V at 60 Hz
The three phase motor must be protected by a customer supplied starter consisting of a suitably rated contactor (see manual page 28). Furthermore, it is equipped with a dry contact (NC) thermal protection which is available in the terminal box.
Adixen 3 Phase motors are equipped with 9 wire terminal box motors, the wiring diagram of the terminals is given as a rough guide only. In the event of doubt, only the plate in the terminal box should be used as a reference.
A&J Vacuum services and repairs Pfeiffer Adixen Pascal I, SD, C1, C2 along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Adixen Motor for 2005, 2010, 2015 2021 SD, I, C1 and C2 Series, 3-Phase 200-230V, 50, 200-280 60Hz, 380-415V 50 Hz, 480V 60Hz, 2000050636 / 108695
This brand new Adixen Pascal Series 3-Phase 3/4 HP Motor replacement p/n 108695 comes without a power cable.
This Adixen Pfeiffer Motor fits the following Adixen Pfeiffer Pump Models.
Pfeiffer Adixen Electrical Motor is certified with major international standards (UL, CSA, CE) and offers two voltage ranges:
- Low voltage: 200-230 V at 50 Hz and 200-280 V at 60Hz
- High voltage: 380-415 V at 50 Hz and 480 V at 60 Hz
The three phase motor must be protected by a customer supplied starter consisting of a suitably rated contactor (see manual page 28). Furthermore, it is equipped with a dry contact (NC) thermal protection which is available in the terminal box.
Adixen 3 Phase motors are equipped with 9 wire terminal box motors, the wiring diagram of the terminals is given as a rough guide only. In the event of doubt, only the plate in the terminal box should be used as a reference.
A&J Vacuum services and repairs Pfeiffer Adixen Pascal I, SD, C1, C2 along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
