- DN 16 ISO-KF Connection Flange
- Aluminum Housing
- FKM Valve Plate
- Spindle Actuator
Shopping Cart ( )
Pfeiffer Diaphragm Valve, Manually Actuated, DN 16 ISO-KF, 110VME016
Condition:
New
Item#:PN57901
Mfr Part#:110VME016
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer Diaphragm Valve, Manually Actuated, DN 16 ISO-KF, 110VME016
Pfeiffer Diaphragm Valve Features:

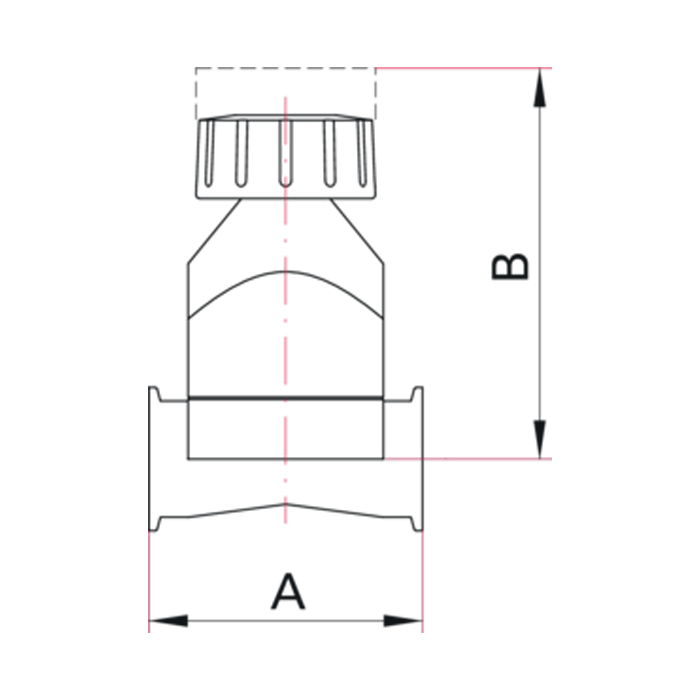

Diaphragm Valve Dimensions
- A: 52 mm | 2.05 in
- B: 66.5 mm | 2.62 in
- Connection flange: DN 16 ISO-KF
- Sturdy vacuum valve designed for venting, rough-metering and locking
- Service life of 100000 operating cycles
- Membrane seals valve seat and housing
- Includes visual indication of open and closed positions
Diaphragm Valve / 110VME016 Overview:
The Pfeiffer diaphragm valve is made for venting, rough-metering and locking. It has a valve plate of FKM material, and an aluminum housing.
A&J Vacuum repair / rebuild and service Vacuum Hardware and all other Pfeiffer equipment available on our site. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Diaphragm Valve, Manually Actuated, DN 16 ISO-KF, 110VME016
Pfeiffer Diaphragm Valve Technical Data:
| Connection flange | DN 16 ISO-KF |
| Actuator | Spindle |
| Bakeout temperature: actuator | 50 °C | 122 °F | 323.15 K |
| Bakeout temperature: housing | 100 °C | 212 °F | 373.2 K |
| Tightness | 1 · 10-10 Pa m³/s |
| Seal: Valve plate | FKM |
| Pressure range | 1E-7 hPa – 5E3 hPa |
| Mounting orientation | Arbitrary |
| Housing | Aluminum |
| Conductance value | 2 l/s |
| Conductance value with molecular flow | 2 l/s |
| Type | Diaphragm valve |
A&J Vacuum repair / rebuild and service Vacuum Hardware and all other Pfeiffer equipment available on our site. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
