Pfeiffer Ball Valve, Manual, Stainless Steel, DN 10 ISO-KF, 2000048088 / 120VKZ010

Pfeiffer Vacuum Ball Valve (Inline Valve).

In this valve, a metal ball with a through hole rotates 90 degrees in a seat to open the full cross-sectional clearance. The ball is made of stainless steel.

This Ball Valve has a Service life of 20000 Cycles

Pfeiffer Ball Valve, Manual, Stainless Steel, DN 16 ISO-KF, 2000048089 / 120VKZ016

Pfeiffer Vacuum Ball Valve (Inline Valve).

In this valve, a metal ball with a through hole rotates 90 degrees in a seat to open the full cross-sectional clearance. The ball is made of stainless steel.

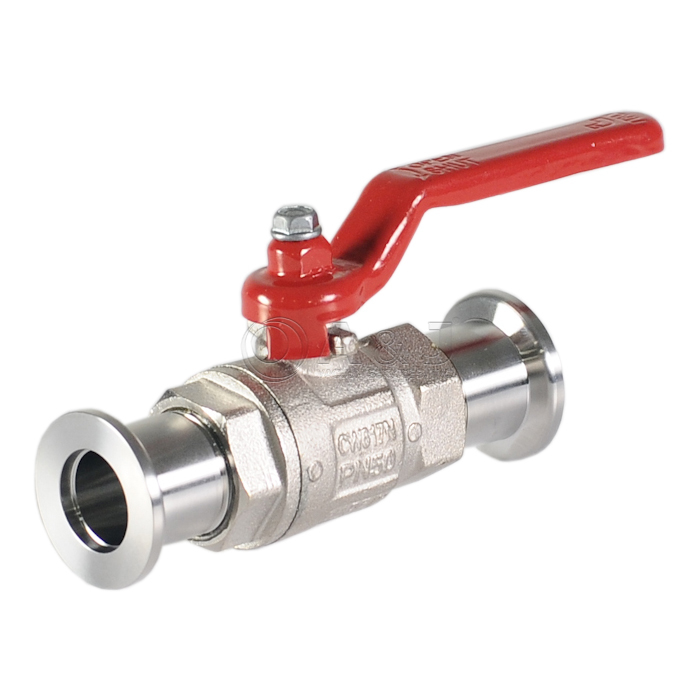

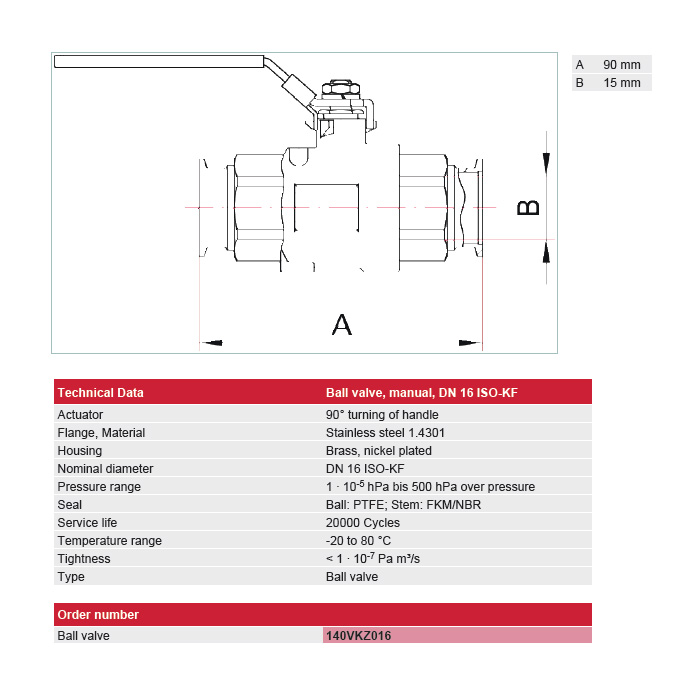

Pfeiffer Vacuum Ball Valve, Inline Valve, Manual, Brass, Nickel-Plated, DN 16 ISO-KF, 140VKZ016

Pfeiffer Vacuum Ball Valve (Inline Valve).

In this valve, a metal ball with a through hole rotates 90 degrees in a seat to open the full cross-sectional clearance. The ball is made of brass and is hard-chrome plated.

Pfeiffer Ball Valve, Manual, Stainless Steel, DN 25 ISO-KF, 2000048091 / 120VKZ025

Pfeiffer Vacuum Ball Valve (Inline Valve).

In this valve, a metal ball with a through hole rotates 90 degrees in a seat to open the full cross-sectional clearance. The ball is made of stainless steel.

Pfeiffer Ball Valve, Manual, Brass, Nickel-Plated, DN 25 ISO-KF, 2000045490 / 140VKZ025

Pfeiffer Vacuum Ball Valve (Inline Valve).

In this valve, a metal ball with a through hole rotates 90 degrees in a seat to open the full cross-sectional clearance. The ball is made of brass and is hard-chrome plated.

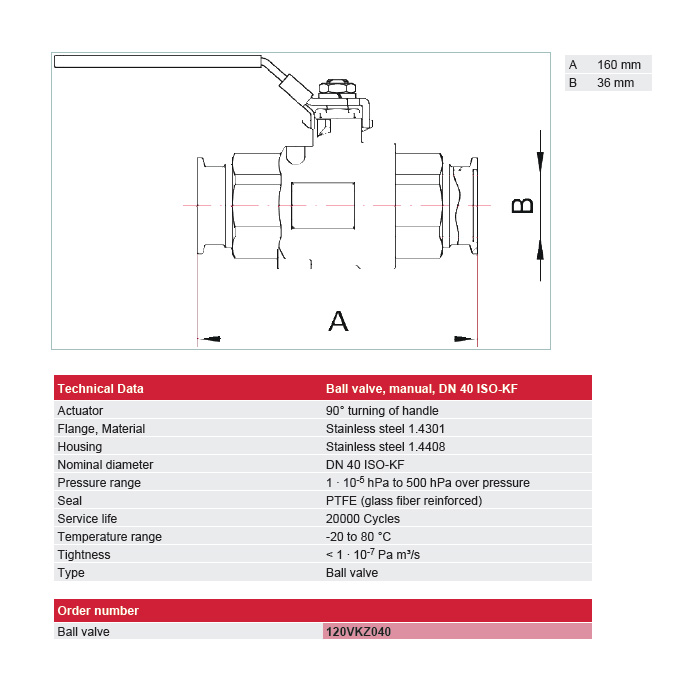

Pfeiffer Ball Valve, Manual Vacuum Valve, Stainless Steel, DN 40 ISO-KF, 2000048093 / 120VKZ040

Pfeiffer Vacuum Ball Valve (Inline Valve).

In this valve, a metal ball with a through hole rotates 90 degrees in a seat to open the full cross-sectional clearance. The ball is made of stainless steel.

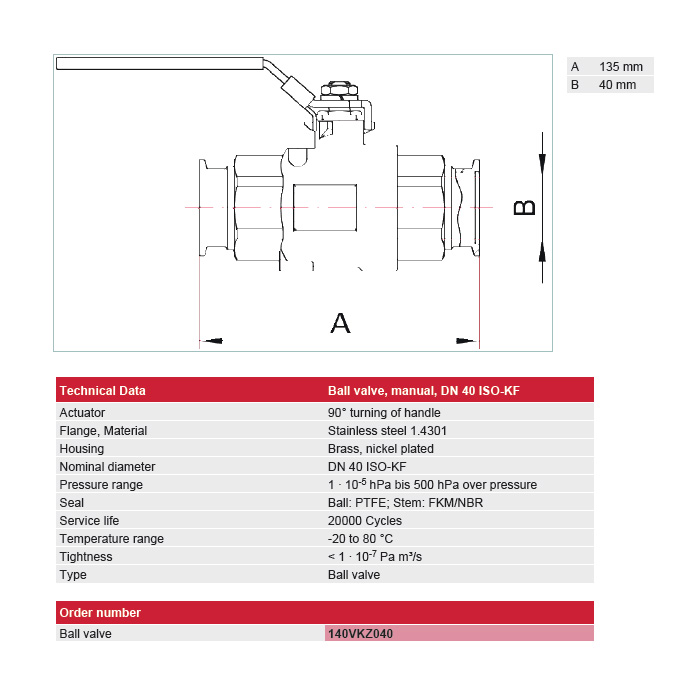

Pfeiffer Vacuum Ball Valve, Inline Valve, Manual, Brass, Nickel-Plated, DN 40 ISO-KF, 140VKZ040

Pfeiffer Vacuum Ball Valve (Inline Valve).

In this valve, a metal ball with a through hole rotates 90 degrees in a seat to open the full cross-sectional clearance. The ball is made of brass and is hard-chrome plated.

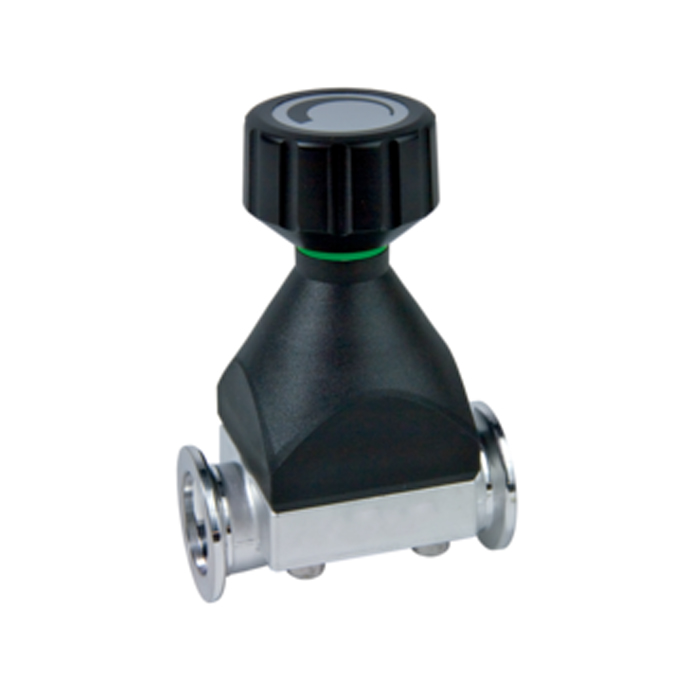

Pfeiffer Diaphragm Valve, Manually Actuated, DN 16 ISO-KF, 110VME016

Pfeiffer Diaphragm Valve Features:

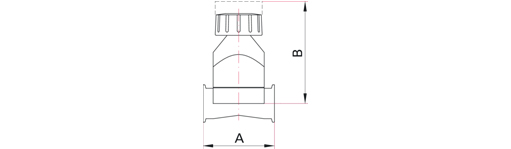

 Diaphragm Valve Dimensions

• A: 52 mm | 2.05 in
• B: 66.5 mm | 2.62 in
• Connection flange: DN 16 ISO-KF
• Sturdy vacuum valve designed for venting, rough-metering and locking
• Service life of 100000 operating cycles
• Membrane seals valve seat and housing
• Includes visual indication of open and closed positions

Diaphragm Valve / 110VME016 Overview:

The Pfeiffer diaphragm valve is made for venting, rough-metering and locking. It has a valve plate of FKM material, and an aluminum housing.

A&J Vacuum repair / rebuild and service Vacuum Hardware and all other Pfeiffer equipment available on our site. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Pfeiffer Diaphragm Valve, Manually Actuated, DN 25 ISO-KF, 110VME025

Pfeiffer Diaphragm Valve Features:

 Diaphragm Valve Dimensions

• A: 80 mm | 3.15 in
• B: 111 mm | 4.40 in
• Connection flange: DN 16 ISO-KF
• Sturdy vacuum valve designed for venting, rough-metering and locking
• Service life of 100000 operating cycles
• Membrane seals valve seat and housing
• Includes visual indication of open and closed positions

Diaphragm Valve / 110VME025 Overview:

The Pfeiffer diaphragm valve is made for venting, rough-metering and locking. It has a valve plate of FKM material, and an aluminum housing.

A&J Vacuum repair / rebuild and service Vacuum Hardware and all other Pfeiffer equipment available on our site. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Pfeiffer Diaphragm Valve, Manually Actuated, DN 40 ISO-KF, 110VME040

Pfeiffer Diaphragm Valve Features:

 Diaphragm Valve Dimensions
