- Pumping Speed 50Hz: 18.84 cfm
- Pumping Speed 60Hz: 21.19 cfm
- Ultimate Pressure: 2 · 10-3 mbar
- Three Phase Motor
Shopping Cart ( )

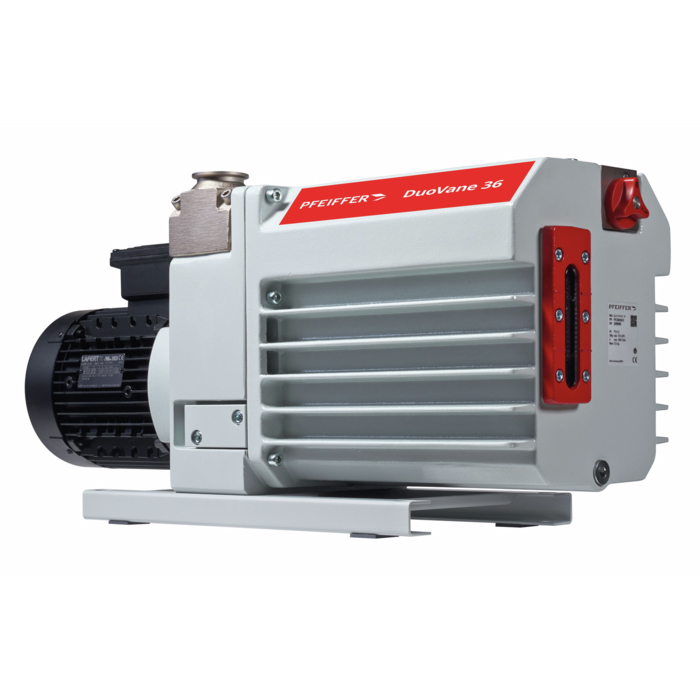

Pfeiffer DuoVane 36 Vacuum Pump, 3-phase, 3TF, 230/400V, 50 Hz | 265/460V, 60 Hz, PK D45 630 F / PKD45630F
Condition:
New
Item#:PN57560
Mfr Part#:PK D45 630 F / PKD45630F
Manufacturer:Pfeiffer-Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer DuoVane 36 Vacuum Pump, 3-phase, 3TF, 230/400V, 50 Hz | 265/460V, 60 Hz, PK D45 630 F / PKD45630F
Power Cable not Included !
Pfeiffer DuoVane 36 Features:
- Pumping speed 50/60HZ: 18.84/21.19 cfm
- Dual-stage, high-performance rotary vane pump
- Temperature sensor (3TF) for optimum motor protection
- Integrated gas ballast and HV safety vacuum valve
- Special feature: various motor voltages for worldwide use
Pfeiffer DuoVane36 / PKD45630F Overview:
Pfeiffer DuoVane series rotary vane pumps are two-stage, oil-sealed rotary displacement pumps for use in a low and medium vacuum. The rotary vane pump is available in the standard version with claw coupling and asynchronous motor.
Pfeiffer Vacuum DuoVane Line is the latest and the newest design within rotary vane pumps, with outstanding pumping performance.
The Pfeiffer Vacuum DuoVane 36 rotary vane pump is an oil-sealed rotary displacement pump. The pumping system comprises the housing, the eccentrically mounted rotor, and the centrifugal and spring-loaded radially sliding vanes, which divide the suction chamber into multiple chambers.
The volume of each stator chamber changes periodically as the rotor rotates. This causes the gas to be drawn in at the vacuum flange, and compressed in the suction chamber by the rotation of the rotor until the exhaust valve opens against the atmospheric pressure at the outlet and expels the gas. The exhaust valve is oil-sealed. When the valve opens, a small quantity of oil penetrates into the suction chamber. In addition to lubrication, this also causes the gaps between the rotor, stator, and vanes to seal.
Pfeiffer DuoVane36 Applications:
- All applications in rough and fine vacuum
- Backing pump for turbo and Roots pumps
- General laboratory applications
- Analytics
- Chemistry laboratory
- Freeze drying
- Process engineering
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 and 36, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer DuoVane 36 Vacuum Pump, 3-phase, 3TF, 230/400V, 50 Hz | 265/460V, 60 Hz, PK D45 630 F / PKD45630F
Pfeiffer DuoVane 36 Technical Data:
- Ambient temperature: 12 – 40 °C | 53.6 – 104 °F | 285.15 – 313.15 K
- Connection flange (in): DN 40 ISO-KF
- Connection flange (out): DN 40 ISO-KF
- Cooling method: Air (Forced convection)

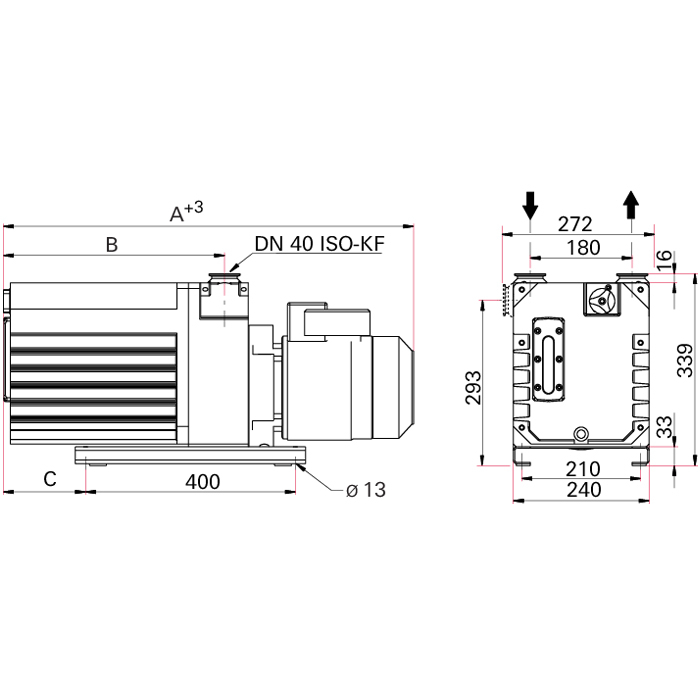

- Dimensions (L x W x H): 645 x 240 x 340 mm | 25.39 x 9.45 x 13.39 inch
- Emission sound pressure level without gas ballast at 50 Hz: 61 dB(A)
- Exhaust pressure, max.: 1500 hPa | 1,125 Torr | 1,500 mbar
- Exhaust pressure, min.: Atmospheric pressure
- Gas ballast: Yes
- Input voltage(s): 230 / 400 V AC, 50 Hz | 265 / 460 V AC (±5 %), 60 Hz
- Leakage rate safety valve: 1 · 10-5 Pa m³/s | 7.5 · 10-5 Torr l/s | 1 · 10-4 mbar l/s
- Mains cable: No
- Mains frequency compatibility: 50/60 Hz
- Motor for region: Asia, Europe
- Motor protection: 3TF
- Motor type: 3-phase motor
- Number of pumping stages: Two stage
- Operating fluid: P3
- Operating fluid amount: 3.2 l
- Operating temperature: ≤ 80 °C | ≤ 176 °F | ≤ 353.15 K
- Protection degree: IP55
- Pumping principle: Oil-lubricated

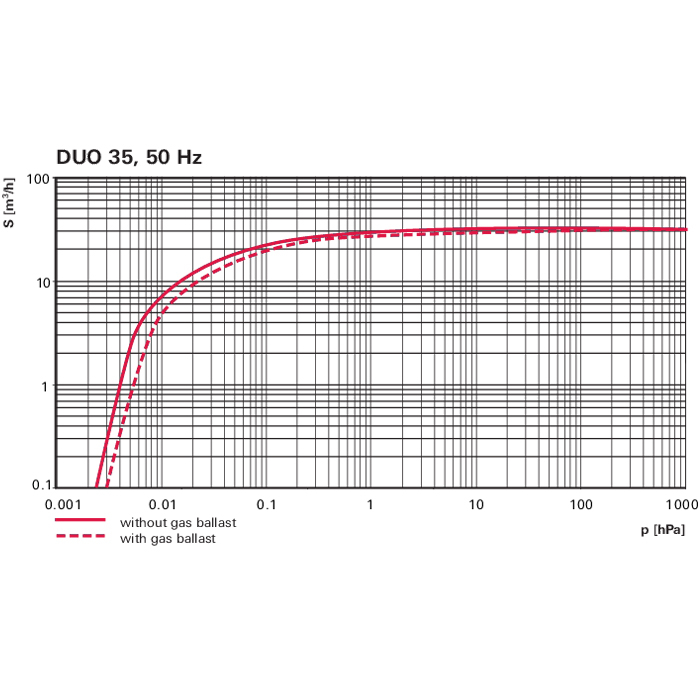

- Pumping speed at 50 Hz: 32 m³/h | 18.84 cfm | 533.33 l/min
- Pumping speed at 60 Hz: 36 m³/h | 21.19 cfm | 600 l/min
- Rated power 50 Hz: 1.1 kW
- Rated power 60 Hz: 1.3 kW
- Rotation speed at 50 Hz: 1500 rpm | 1,500 min-1
- Rotation speed at 60 Hz: 1800 rpm | 1,800 min-1
- Sealing gas: No
- Switch: No
- Ultimate pressure: 2 · 10-3 hPa | 1.5 · 10-3 Torr | 2 · 10-3 mbar
- Ultimate pressure with gas ballast: 3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar
- Weight approx.: 68 kg | 149.91 lb
A&J Vacuum services and repairs Pfeiffer DuoVane 1.6 3 6 12 18 22 30 and 36, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Item#:PN57559
Mfr Part#:ESV-S04100
Condition: Out of Stock
New
Price upon request
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
