- Connection Flange: DN 40 ISO-KF
- Pressure Max. (absolute): 1000 mbar
- Elastomer Seals for High Vacuum Operation
- Stainless Steel Body
Shopping Cart ( )

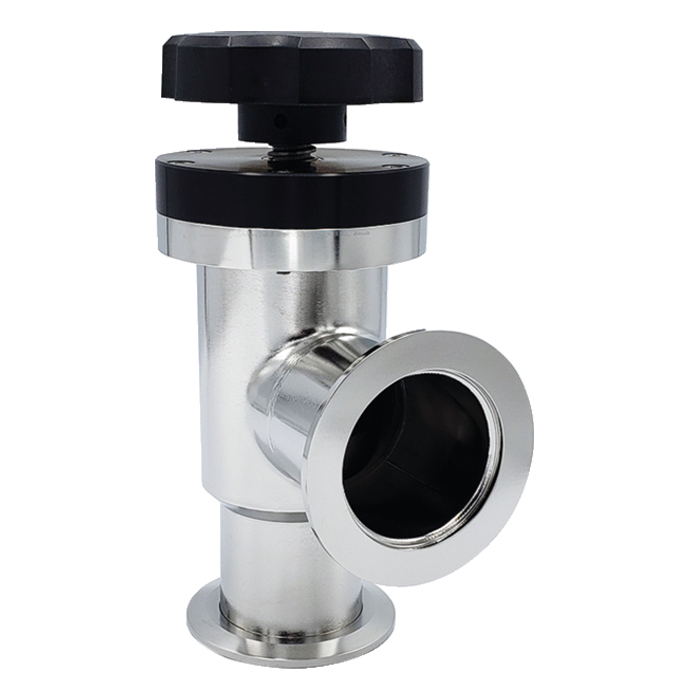

Pfeiffer HV Angle Valve, DN 40 ISO-KF, Operated Manually, 304/FKM, "A"-dim. 65 mm, ESV-S04100
Condition:
New
Item#:PN57559
Mfr Part#:ESV-S04100
Manufacturer:Pfeiffer-Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer HV Angle Valve, DN 40 ISO-KF, Operated Manually, 304/FKM, "A"-dim. 65 mm, ESV-S04100
Pfeiffer HV Angle Valve Features:
- Pressure max. (absolute): 1000 mbar
- With elastomer seals for high vacuum operation
- Stainless steel body with welded diaphragm bellows
- Conductance continuously variable with handwheel (multi-turn)
- Fully retracting and opening
Pfeiffer HV Angle Valve / ESV-S04100 Overview:
The ESVP/CSVP pneumatic angle valves are bellows-sealed valves actuated pneumatically, specifically engineered for high vacuum and ultra-high vacuum applications.
Pfeiffer HV Angle Valve Scope of Delivery:
- Valve
- Optional pilot valve
- Quick-start guide
Pfeiffer HV Angle Valve Applications:
- All vacuum applications
- Used in applications to isolate gas flow through the forelines of the vacuum system
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 and 30, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer HV Angle Valve, DN 40 ISO-KF, Operated Manually, 304/FKM, "A"-dim. 65 mm, ESV-S04100

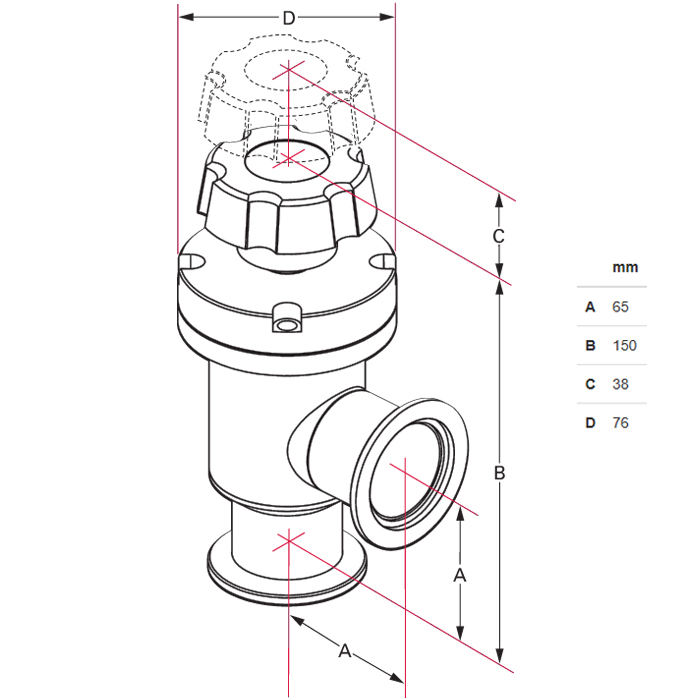

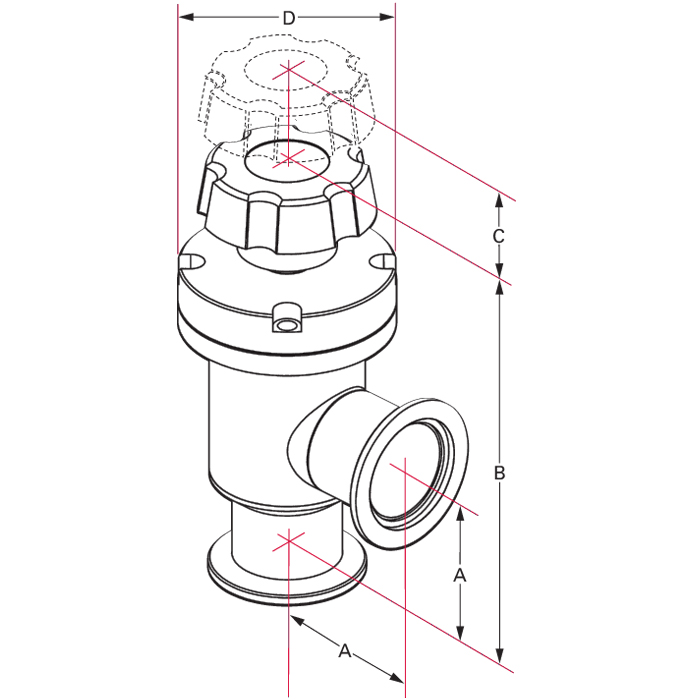

Pfeiffer HV Angle Valve Technical Data:
- Actuator: Spindle
- Bakeout temperature - actuator: 60 °C | 140 °F | 333.15 K
- Bakeout temperature - housing: 150 °C | 302 °F | 423.15 K
- Conductance value with molecular flow: 37 l/s
- Connection flange: DN 40 ISO-KF
- Differential pressure in closing direction: 1400 hPa | 1,050 Torr | 1,400 mbar
- Differential pressure in opening direction: 1400 hPa | 1,050 Torr | 1,400 mbar
- Feedthrough: Bellows, Stainless steel
- Housing: Stainless steel
- Operating pressure min.: 1 · 10-8 hPa | 7.5 · 10-9 Torr | 1 · 10-8 mbar
- Pressure max. (absolute): 1000 hPa | 750 Torr | 1,000 mbar
- Seal: FKM
- Service life: 100000 cycles
- Tightness: 1 · 10-9 mbar l/s
- Type: HV Angle valve
- Weight approx.: 1.2 kg | 2.65 lb
