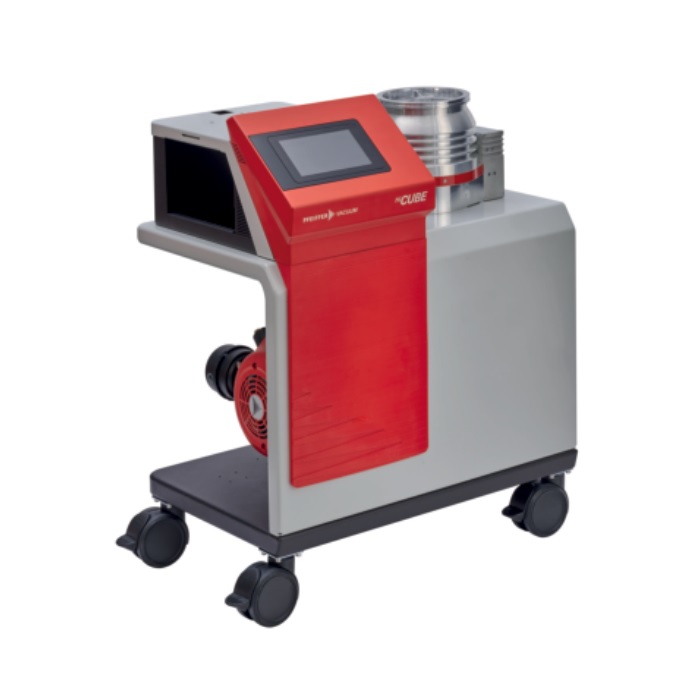

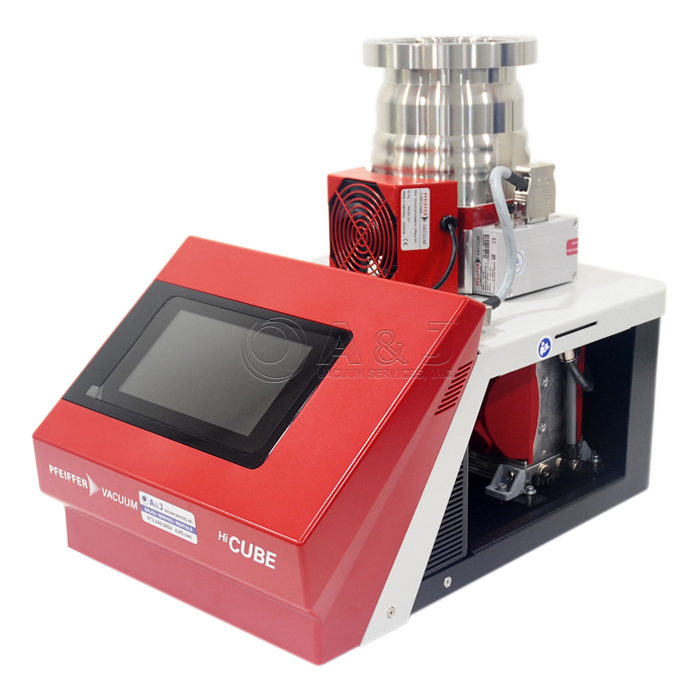

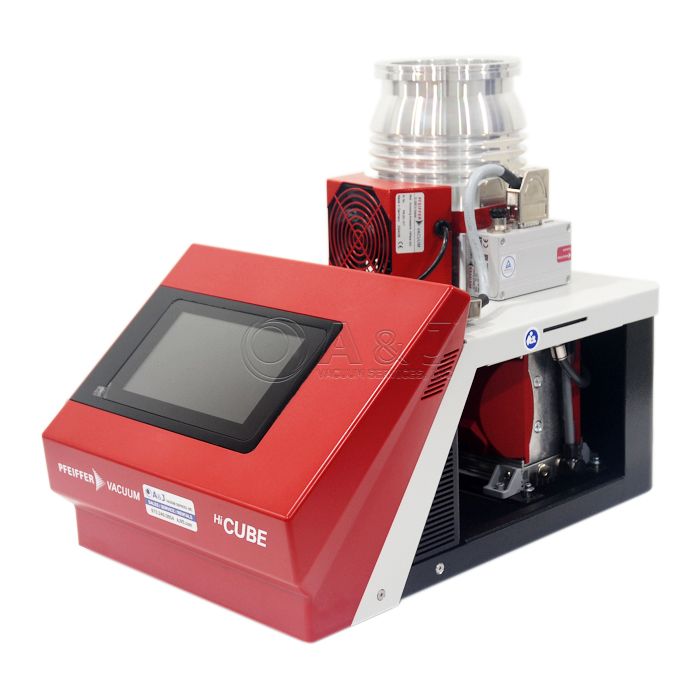

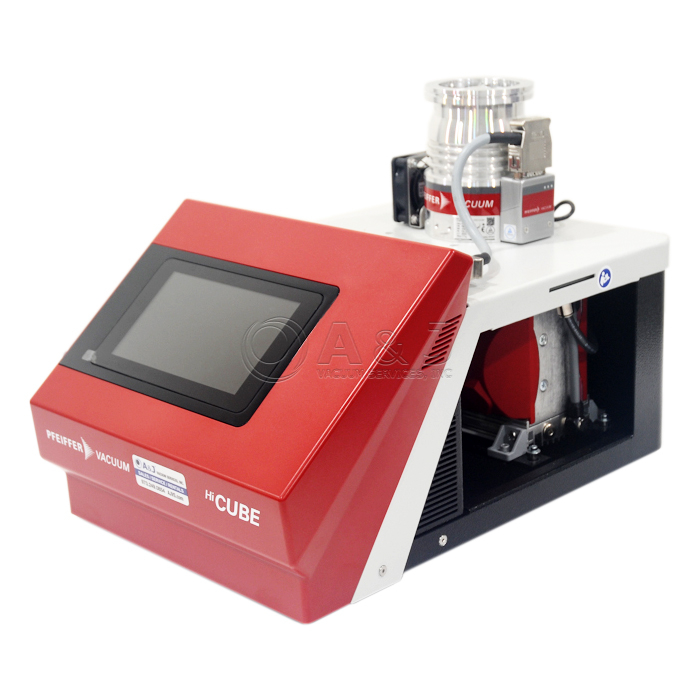

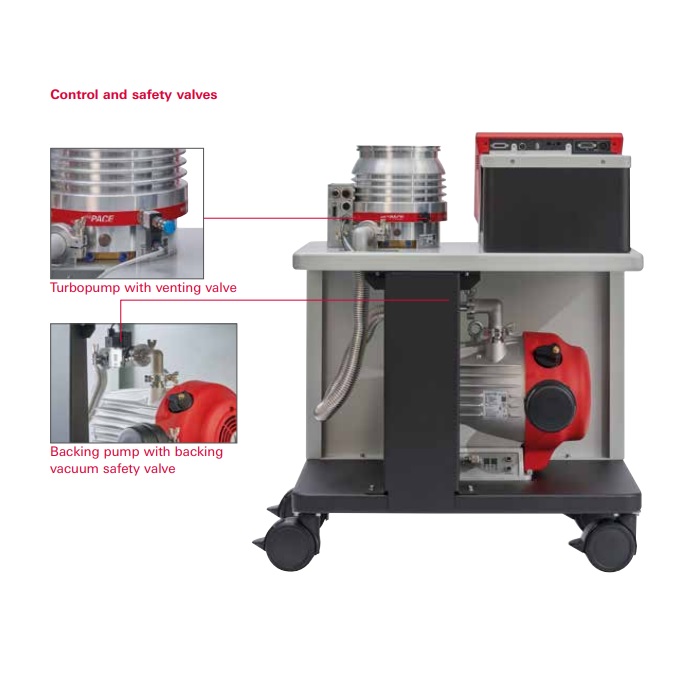

Pfeiffer HiCube 80 Neo Mobile Turbo Pumping Station, Includes HiPace 80 Neo Turbo Pump (DN 63 ISO-K), Hiscroll 6 Dry Scroll Pump and 7" Touch Screen Controller, 2000194912 / PM Q201 300 00 / PMQ20130000

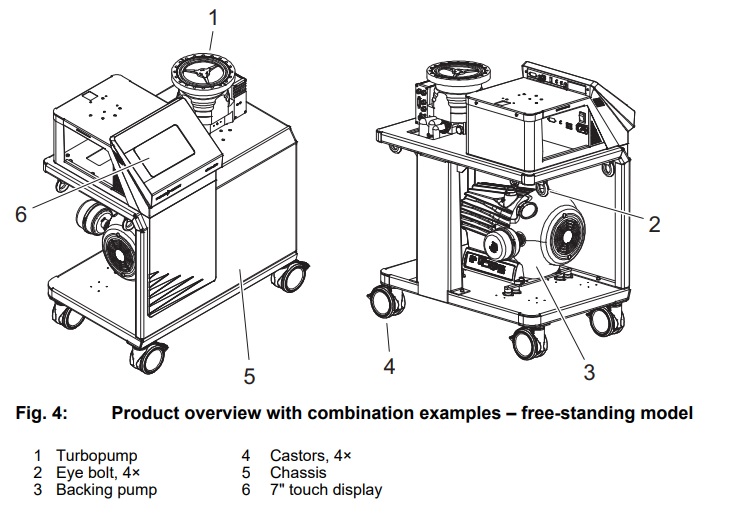

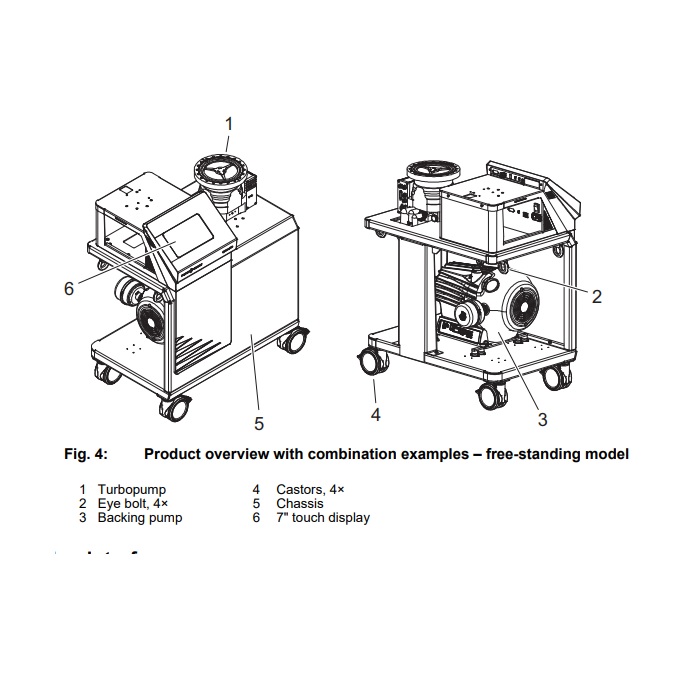

Pfeiffer HiCube Neo 80 Mobile Features:
- The HiCube Neo Compact series of pumping stations for all high vacuum applications
- Air-cooled and ready for operation with HiPace 80 Neo Turbo Pump and HiScroll 18 Dry Scroll Backing Pump
- Remote Control possible via web server

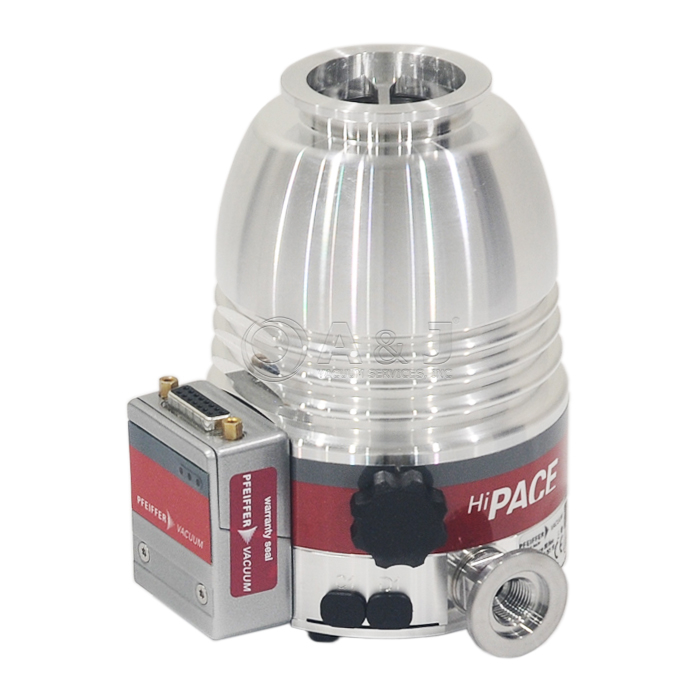

- Pfeiffer HiCube 80 Neo / comes with DN 63 ISO-K inlet flange / PM P08 301 10
- Pfeiffer Hiscroll 6 / DN 25 KF / PD S20 000
- It is controlled intuitively via the 7“ color touch screen control panel
- Pfieffer HiCube Neo Mobile voltage requirement 90-132 V AC, 50/60 Hz; 185-265 V AC, 50/60 Hz
- The HiCube Neo is ready for immediate use thanks to its plug and-play operation
- Reliable and robust

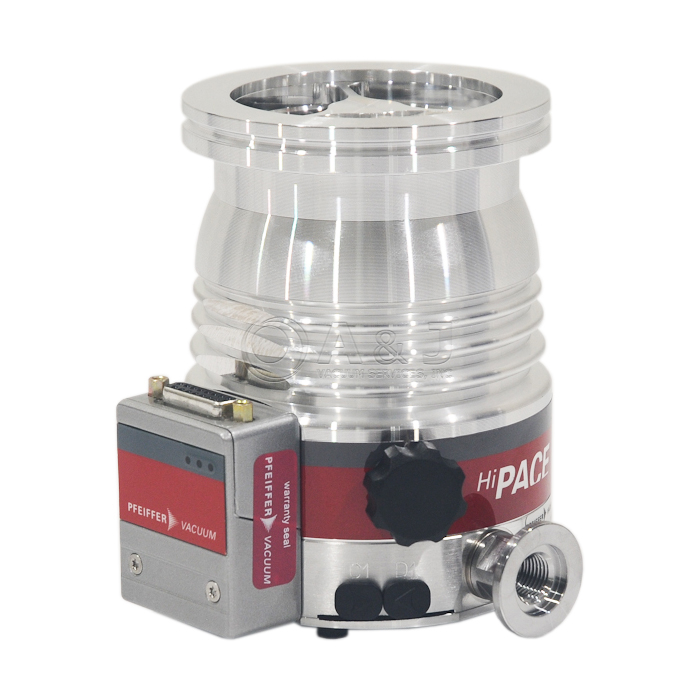

HiPace 80 Neo Mobile / PMQ20130000 Overview:
Powerful and versatile With a pumping speed of 80–800 l/s, our HiCube Neo turbo pumping unit offers the performance you need for your high vacuum applications. When using a HiPace H, an ultra-high vacuum of <10-10 hPa can be achieved. The availability of different backing pumps, such as diaphragm, rotary vane, scroll and multi-stage Roots pumps, makes it extremely versatile. With desktop and standalone versions and configurability for any application, we offer maximum flexibility
The dashboard appears automatically when you switch on the HiCube Neo pumping station. Hicube Neo dashboard provides information about the operating status of the connected pump, the system status, the pressure (if the gauge is connected), the status of the components in operation/during shutdown, the parameter list, and the actual rotation speed.
Intuitive control and analysis The HiCube Neo is ready for immediate use thanks to its plugand-play operation. It is controlled intuitively via the 7“ color touch screen control panel. Convenient monitoring and remote control via the web server are also possible, while the recording of measurement data via OPC UA, enables detailed analysis for optimum process control. Combine the HiCube Neo with our comprehensive portfolio of measuring devices and other accessories to create customized solutions for any high vacuum application.
The Pfeiffer Vacuum HiCube 80 Neo Mobile Turbo Pumping Station is the trully portable and bench top pumping unit for many of the High Vacuum Applications. DN-63 ISO-K Inlet Flange makes this system trully High Vacuum Pumping System.
The Hicube 80 Neo Station has a modern design with the latest turbo pump and electronics technology. Fully integrated Pfeiffer Hiscroll 6 Dry Diaphragm Pump provides positive displacement with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.

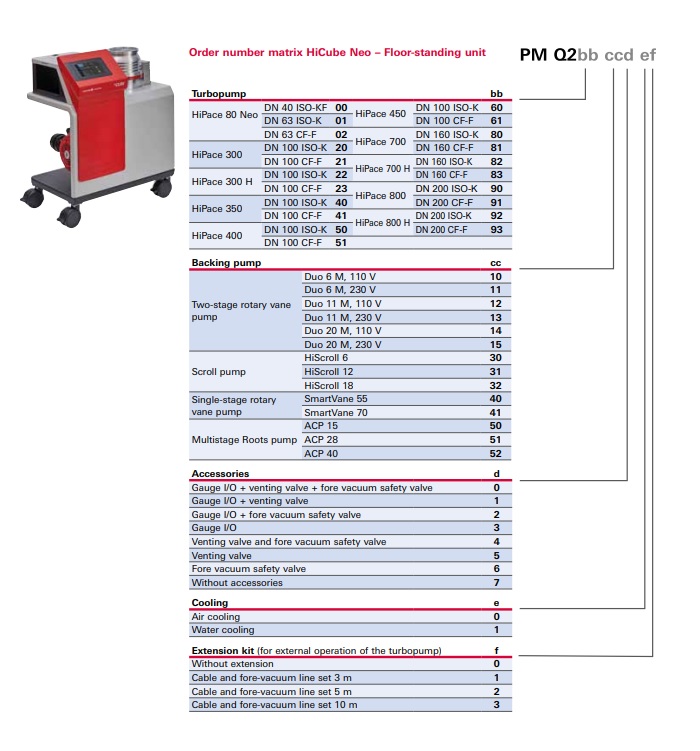

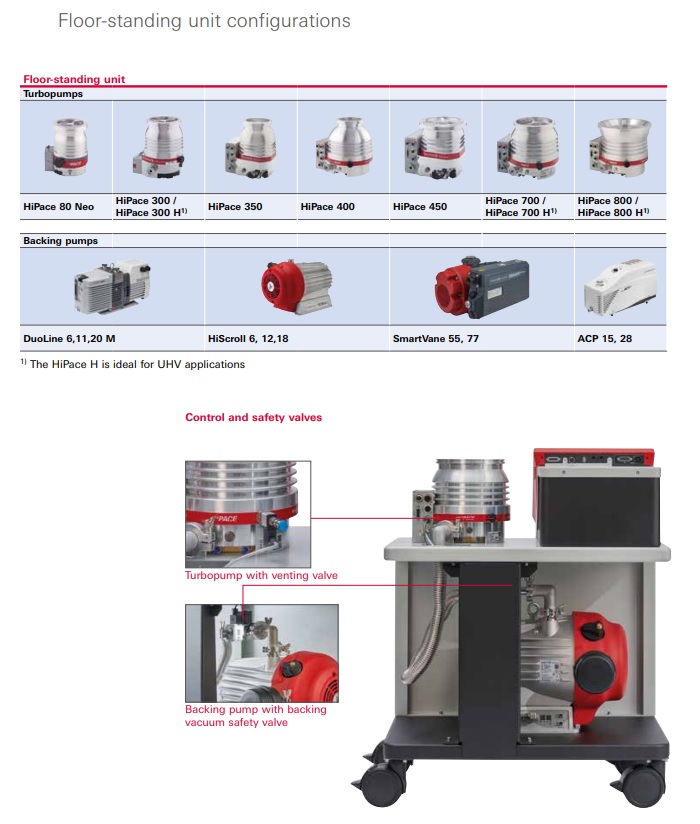

What’s so special about the HiCube NEO Mobile Turbo Systems: The combination of a turbopump from the HiPace Neo series Turbo Pump and a backing pump designed for the user’s specific application needs. HiCube Neo Mobile offers several different configuarations listed below available uppon request.

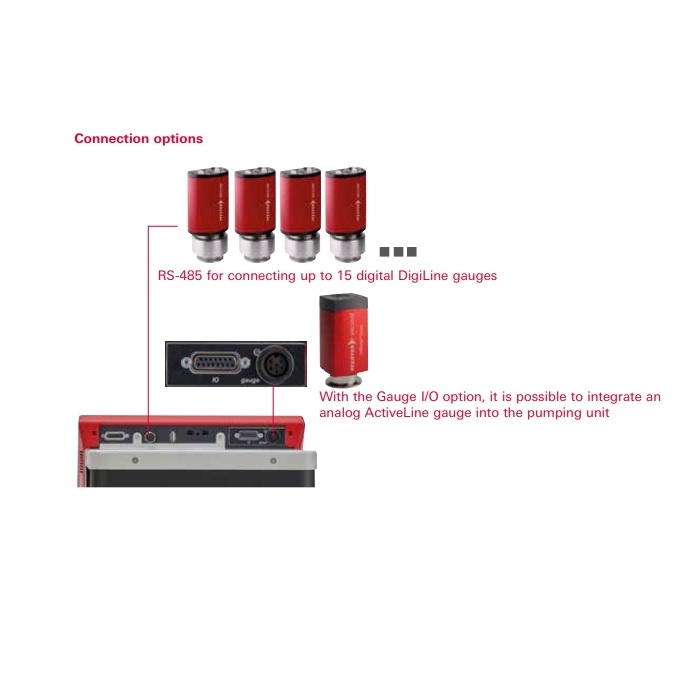

The HiCube Neo turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube Neo can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Neo Turbo Stations feature connectivity for digital pressure gauges.
All HiCube Neo turbo pumping stations are fitted with particularly energy-efficient backing pumps that have a DC drive. The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load in the vacuum, the pumping station automatically reduces the backing pump output. This results in maximum energy savings.
HiCube80NeoMobile Applications:
- Gas analysis
- Calibration of measuring tubes
- Laboratory applications
- Research, Development and Scientific
- Particle accelerators
- Residual gas analysis
- Cryogenics
A&J Vacuum also repair / rebuild and service all Pfeiffer HiCube 80 Neo / Eco Pumping Stations along with all other Pfeiffer Vacuum MVP Diaphragm Pumps, Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. We also service New Leybold Turbo Pumping Stations, New Edwards turbo Pump Stations. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer HiCube 80 Neo Mobile Turbo Pumping Station, Includes HiPace 80 Neo Turbo Pump (DN 63 ISO-K), Hiscroll 6 Dry Scroll Pump and 7" Touch Screen Controller, 2000194912 / PM Q201 300 00 / PMQ20130000

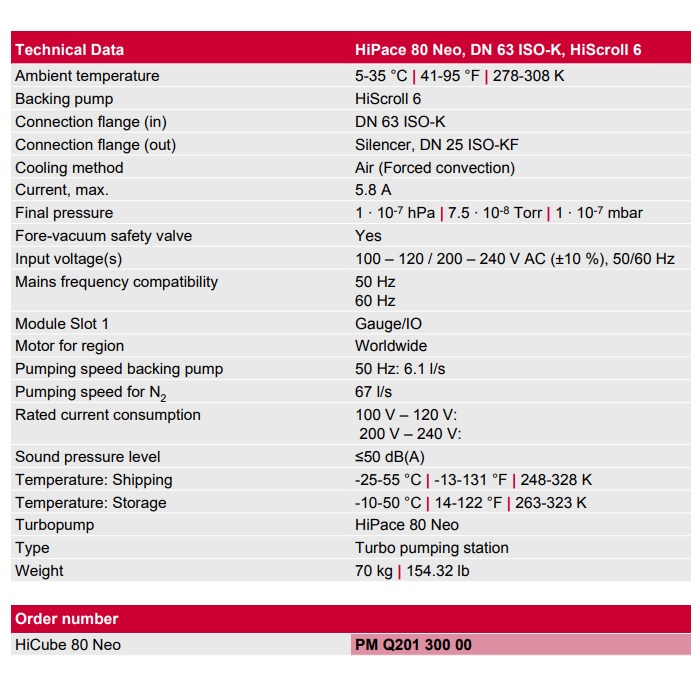

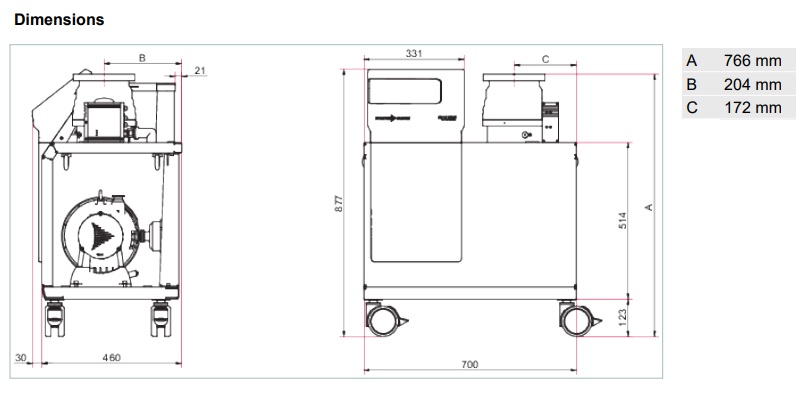

Pfeiffer HiCube Neo 80 Mobile Technical Data:
|
Ambient temperature |
5 – 35 °C | 41 – 95 °F | 278.15 – 308.15 K |
| Backing pump | HiScroll 6 |
| Connection flange | DN 63 ISO-K |
| Connection flange (in) | DN 63 ISO-K |
| Connection flange (out) | DN 25 ISO-KF |
| Cooling method | Air (Forced convection) |
| Emission sound pressure level (EN ISO 2151) | ≤50 dB(A) |
| Fore-vacuum safety valve | Yes |
| Input voltage(s) | 100 – 120 / 200 – 240 V AC (±10 %), 50/60 Hz |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Module Slot 1 | Gauge/IO |
| Motor for region | Worldwide |
| Pumping speed backing pump at 50 Hz | 6.1 m³/h | 3.59 cfm | 101.67 l/min |
| Pumping speed for N2 | 67 l/s |
| Rated current consumption | 120 V: 5.8 A 120 V: 5.8 A |
| Rated power at max. rotation speed | 565 W |
| Turbopump | HiPace 80 Neo |
| Type | Turbo pumping station |
| Ultimate pressure | 1 · 10-7 hPa | 7.5 · 10-8 Torr | 1 · 10-7 mbar |
| Weight | 70 kg | 154.32 lb |
