- Inlet Flange: DN 100 CF-F
- Outlet Flange: DN 16 ISO-KF / G 1/4"
- Pumping Speed - N2: 245 l/s
- Rotational Speed: 60000 min-1 (+/- 2%)
Shopping Cart ( )

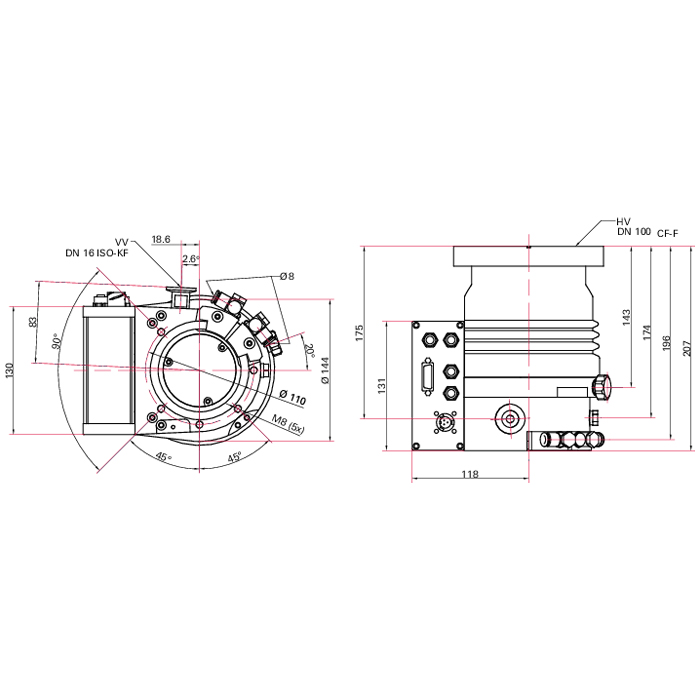

Pfeiffer HiPace 300 P Turbo Pump with TC 400 Controller, DN 100 CF-F, 2000014514 / PM P04 711 C / PMP04711C
Condition:
New
Item#:PN23277
Mfr Part#:2000014514 / PM P04 711 C / PMP04711C
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer HiPace 300 P Turbo Pump with TC 400 Controller, DN 100 CF-F, 2000014514 / PM P04 711 C / PMP04711C
Pfeiffer HiPace 300 P Turbo Pump Features:
- Rugged, powerful turbopump with a pumping speed of up to 245 l/s for N2
- Integrated drive electronics TC 400
- Perfect solution for coating and semiconductor processes as well as for dusty industrial applications like electron-beam welding facilities
- For installation in any orientation
- With integrated water cooling for maximum gas throughput
- Flexible through the ability to employ up to 4 accessories
- Ideal for fast cycles
- Extensive accessories expand the range of applications
- Insensitive to dust
HiPace 300 P / PMP04711C Overview:
The Pfeiffer HiPace P Series is a complete line of compact yet powerful turbo pumps featuring pumping speed of 245 l/s N2. These models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
The Pfeiffer Hipace 300 P Turbo Vacuum Pump's proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
This HiPace 300 P Turbo Pump comes with a TC 400 Controller.
HiPace300P Applications:
- Automotive and Transport
- Fish farming
- Metallurgy
- Thin Film Coating
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 300 Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer HiPace 300 P Turbo Pump with TC 400 Controller, DN 100 CF-F, 2000014514 / PM P04 711 C / PMP04711C
Pfeiffer HiPace 300 P Turbo Pump Technical Data:
| Bearing | Hybrid |
| Compression ratio for Ar | > 1 · 107 |
| Compression ratio for H2 | 3 · 102 |
| Compression ratio for He | 2.2 · 103 |
| Compression ratio for N2 | > 1 · 106 |
| Connection flange | DN 100 CF-F / DN 16 ISO-KF | G 1/4" Thread |
| Connection flange (in) | DN 100 CF-F |
| Connection flange (out) | DN 16 ISO-KF | G ¼" |
| Cooling method | Water |
| Cooling method, optional | Air (forced convection) |
| Cooling water flow | 50 l/h |
| Cooling water temperature | 15 – 35 °C | 59 – 95 °F | 288.15 – 308.15 K |
| Current, max. | 12.5 A |
| Electronic drive unit | TC 400 |
| Emission sound pressure level (EN ISO 2151) | ≤50 dB(A) |
| Fore-vacuum max. for N2 | 1 hPa | 0.75 Torr | 1 mbar |
| Gas throughput at final rotational speed for Ar | 4.4 hPa·l/s |
| Gas throughput at final rotational speed for H2 | > 50 hPa·l/s |
| Gas throughput at final rotational speed for He | > 20 hPa·l/s |
| Gas throughput at final rotational speed for N2 | 17 hPa·l/s |
| I/O interfaces | RS-485, Remote |
| Input voltage(s) | 24 V DC (±10 %) |
| Integral leak rate | < 1 · 10-8 Pa m³/s | < 7.5 · 10-8 Torr l/s | < 1 · 10-7 mbar l/s |
| Mounting orientation | Arbitrary |
| Particle intake | Yes |
| Permissible radial magnetic field max. | 5.5 mT |
| Position of power supply pack | External power supply pack |
| Power consumption max. | 300 W |
| Protection degree | IP54 Type 12 |
| Pumping principle | Dry |
| Pumping speed | 450 – 882 m³/h | 264.87 – 519.15 cfm | 7,500.02 – 14,700.03 l/min |
| Pumping speed for Ar | 250 l/s |
| Pumping speed for H2 | 125 l/s |
| Pumping speed for He | 220 l/s |
| Pumping speed for N2 | 245 l/s |
| Rotation speed variable | 35 – 100 % |
| Rotation speed ± 2 % | 60000 rpm | 60,000 min-1 |
| Run-up time | 1.2 min |
| Type of electronic drive unit installation | Integrated electronic drive unit |
| Ultimate pressure | < 1 · 10-8 hPa | < 7.5 · 10-9 Torr | < 1 · 10-8 mbar |
| Venting connection | G 1/8" |
| Weight | 8.4 kg | 18.52 lb |
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 300 Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum, Mains cable 115 V AC, NEMA 5-15 to C13, 3m, 2000028157 / P 4564 309 ZE / P4564309ZE
Item#:PN00834
Mfr Part#:2000028157 / P 4564 309 ZE / P4564309ZE
Condition: In Stock
New
In Stock
$45.00
Item#:PN02099
Mfr Part#:GA-0600V
Condition: In Stock
New
In Stock
$43.00
Item#:PN06089
Mfr Part#:2000012894 / PM Z01 302 A / PMZ01302A
Condition: In Stock
New
In Stock
$589.00
Item#:PN06166
Mfr Part#:2000018793 / PM 061 373 -T / PM061373-T
Condition: In Stock
New
In Stock
$575.00
Item#:PN06183
Mfr Part#:2000028213 / P4723010 / P 4723 010
Condition: In Stock
New
In Stock
$259.00
Item#:PN14633
Mfr Part#:GA-0600AL
Condition: Out of Stock
New
$170.00
Item#:PN15044
Mfr Part#:CF100RA35R
Condition: In Stock
New
In Stock
Price upon request
Item#:PN15045
Mfr Part#:DY-CF100RA63R
Condition: Out of Stock
New
Price upon request
Item#:PN15077
Mfr Part#:2000018732 / PM061207-T / PM 061 207 -T
Condition: In Stock
New
In Stock
$457.00
Item#:PN15620
Mfr Part#:2000018741 / PM061283-T / PM 061 283 -T
Condition: In Stock
New
In Stock
$235.99
Item#:PN15675
Mfr Part#:PN15675
Condition: In Stock
New
In Stock
$13.00
Item#:PN18116
Mfr Part#:PM061747-T
Condition: Out of Stock
New
$222.00
Item#:PN18118
Mfr Part#:2000018906 / PM 061 649 -X / PM061649-X
Condition: In Stock
New
In Stock
$270.00
Item#:PN18120
Mfr Part#:2000018738 / PM 061 270 -X / PM061270-X
Condition: In Stock
New
In Stock
$199.99
Item#:PN18123
Mfr Part#:2000007574 / PT348132-T
Condition: Out of Stock
New
$106.00

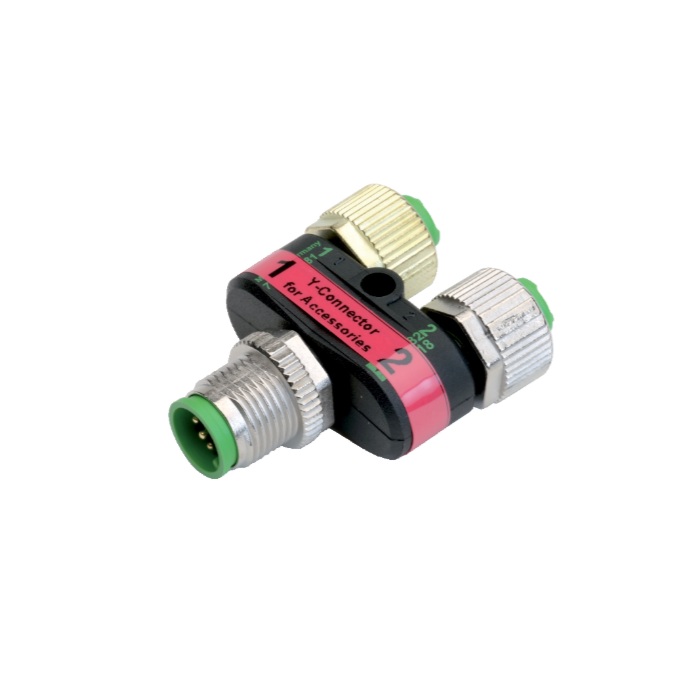

Item#:PN19982
