Alcatel / Adixen

This product is designed to gererate vacuum by pumping on gases, but no liquids neither solids. It is dedicated for running in industrial and laboratory environments. The products must not operate in an area with risk of explosion. Consult us to study a solution.

The performance and operational safety of this product are guaranteed provided it is used normally in the operating conditions defined in this manual.

The MDP5011 Turbo Pump offers an ideal pumping solution between turbo and roots pumps. The MDP 5011 Pump is lightweight and compact making it the ideal dry pump for numerous

The Alcatel Adixen MDP5011 is designed to operate efficiently under the following conditions:

To replace a rotary vane pump with a dry pump for an application at 10-3 mbar
A turbo pump that can operate up to 10 mbar
A pump that can flow up to 400 SCCM
This Natural Ambient Cooling pump can be also equipped with Air Cooling Fan P/N PN07081, or this MDP5011 can be also cooled with Water Cooling Kit P/N PN20001

Alcatel MDP 5011 Applications:

Fast evacuation of small volumes
Interseal pumping
Regeneration of cryopumps
Backing pump for turbomolecular pumps
Leak detection
High-quality freez drying
Spectrometry
Production of light bulbs
Production of electronic tubes

Alcatel MDP 5011 Dimensions:

Alcatel Adixen MDP 5011 Dimensions, 795600

Click Here for Alcatel MDP 5011 Manual

A&J Vacuum also repair / rebuild and service Alcatel MDP 5011 and Adixen MDP 5011 Turbo Pumps along with all other Pfeiffer Adixen Vacuum pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Condition: New In Stock

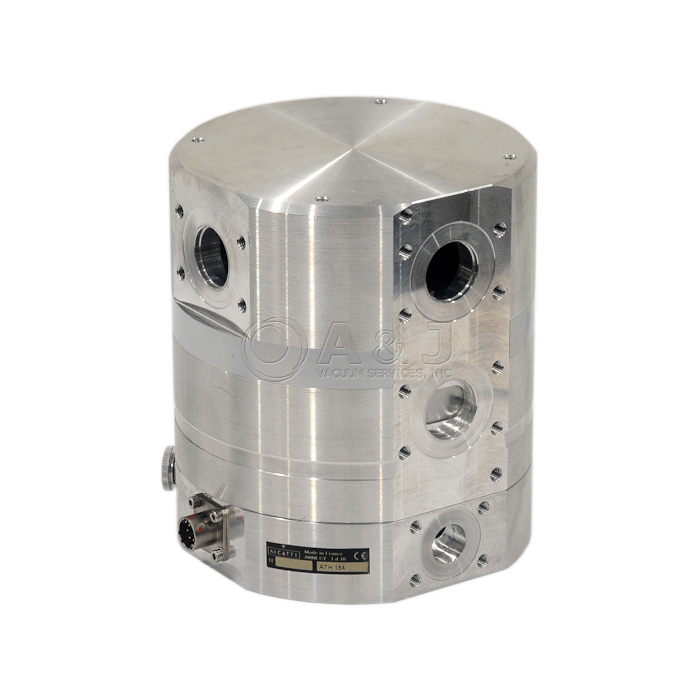

Pfeiffer Adixen ATH 184 Turbo Pump for Helium Leak Detector, ATH184

Item#: PN23992 Mfr Part#: SABC0261 Manufacturer: Adixen / Alcatel

This product has been discontinued and is no longer available for sale

New Pfeiffer Adixen ATH 184 Turbo Pump for ASM 380 Helium Leak Detector, ATH184

This Turbo Pump has been design for Alcatel Adixen ASM380 Helium Leak Detectors.

Adixen ATH 184 Turbo Pump is equipped with selonoid purge valve port. This is a special version of Turbo Pump and it will only fit those specific ASM-380 Helium Leak Detectors.

We offer wide range of ASM 380 leak detector spare parts

A&J Vacuum services and repairs Pfeiffer Adixen ASM 380, ASM 390 Helium Leak Detectors. We service wide range of turbo pumps and leak detector backing pumps, along with all other helium leak detectors available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.

Condition: Discontinued

Alcatel Adixen ATP 100 Turbo Pump, G13101

Item#: PN00376 Mfr Part#: G13101 Manufacturer: Adixen / Alcatel

This product has been discontinued and is no longer available for sale

Alcatel Adixen ATP 100 Turbomolecular Pump, G13101, DN100ISO, Natural Cooling

Alcatel Adixen ATP 100 Overview:

The reliable and strudy design of ATP pumps ensures performance suited to the fields of application concerned. In molecular operation, the gas molecules of the vacuum system arrive at the pump intake. They are trapped between the rotating disks of the rotor and the stationary disks of the stator and carried to the exhaust of the pump.

Applications for Alcatel ATP 100 Pump:

Industry: Cryogenics, Freeze drying, Vacuum drying, etc.
Instrumentation: Mass spectrometry, Surface analysis, etc.
Research and Development: Ultra-high vacuum systems, Particle accelerators, etc.

Main Characteristics of ATP 100 Turbo Pump:

Ceramic ball bearings lubricated with grease
Adjustable rotation speed between 6000 and 27000 rpm
Natural convection, air or water cooling
"C" version for corrosive application with nitrogen purge
"HPC" high pressure version for semiconductor applications

Alcatel Adixen ATP 100 Dimensions:

Alcatel Adixen ATP 100, G13101

Click Here for Alcatel/Adixen ATP Brochure

A&J Vacuum also repair / rebuild and service Alcatel ATP100 and Adixen ATP 100 Turbo Pumps along with all other Alcatel Vacuum pumps and Adizen Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Condition: Discontinued
