Pfeiffer OFM 125, Mechanical Oil Filter, PK Z90 340 A / PKZ90340A
Pfeiffer OFM 125 Features:
- Interposed in the oil circulation system of rotary vane pumps
- Filters out dust and particulate matter in the operation fluid stemming from production process
- Reduces pump wear
- Longer service life of operating fluid
Pfeiffer OFM 125 Mechanical Oil Filter / PK Z90 340 A Overview:
The OFM 125 mechanical oil filter purifies the operating fluid in rotary vane pumps by removing process-related contaminants such as dust and particulate matter. Employing an oil filter prolongs the lifespan of the operating fluid and minimizes wear on the pump. To maintain fluid flow in the event of severe filter contamination, a built-in bypass valve is included. A visual indicator displays the contamination level, while an optional electrical signal output enables remote monitoring. Additionally, a pressure switch can be optionally integrated for operational monitoring purposes.
Pfeiffer OFM125 Scope of Delivery:
- OFM 125 or OFM 255 pre-assembled:
- 1x mechanical filter cartridge
- Pollution indicator
- O-ring
- Fixing screws
- Operating instructions
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 95 and 135, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer OFM 125, Mechanical Oil Filter, PK Z90 340 A / PKZ90340A
Pfeiffer OFM 125 Technical Data:
- Capacity mech. filter: 2.2 l
- Contact: Two-way contact
- For pump: DuoVane 125
- For pumping speed up to: 135 m³/h | 79.46 cfm | 2,250 l/min
- Grade of filtration: 10 µm
- Protection degree: IP65
- Switch-point: 2000 hPa | 1,500 Torr | 2,000 mbar
- Switching current V AC: 5 A
- Switching voltage: 250 V AC
- Weight approx.: 4.5 kg | 9.92 lb
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 95 and 135, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.

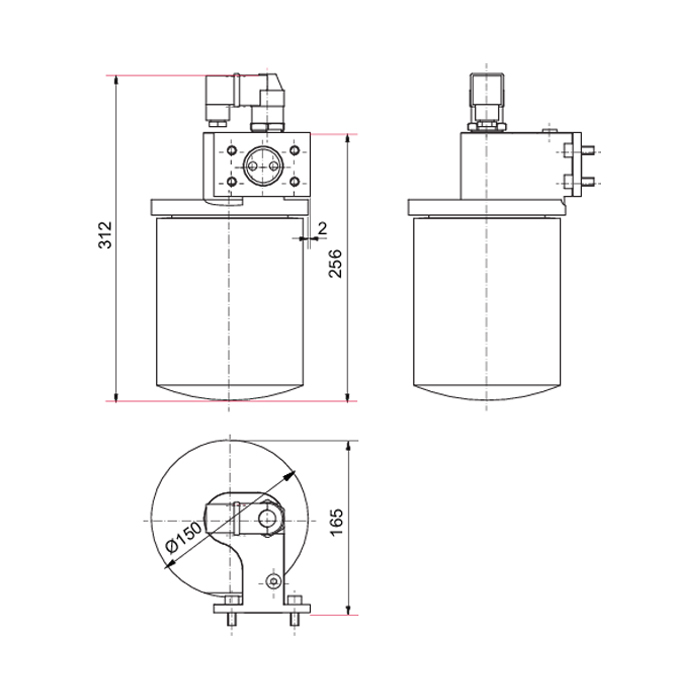

Pfeiffer OFM 125 Mechanical Oil Filter Data Sheet PKZ90340A
Pfeiffer OFM 125 Mechanical Oil Filter Data Sheet PKZ90340A
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Pfeiffer OFM 125, Mechanical Oil Filter, PK Z90 340 A / PKZ90340A
Pfeiffer OFM 125 Features:
- Interposed in the oil circulation system of rotary vane pumps
- Filters out dust and particulate matter in the operation fluid stemming from production process
- Reduces pump wear
- Longer service life of operating fluid
Pfeiffer OFM 125 Mechanical Oil Filter / PK Z90 340 A Overview:
The OFM 125 mechanical oil filter purifies the operating fluid in rotary vane pumps by removing process-related contaminants such as dust and particulate matter. Employing an oil filter prolongs the lifespan of the operating fluid and minimizes wear on the pump. To maintain fluid flow in the event of severe filter contamination, a built-in bypass valve is included. A visual indicator displays the contamination level, while an optional electrical signal output enables remote monitoring. Additionally, a pressure switch can be optionally integrated for operational monitoring purposes.
Pfeiffer OFM125 Scope of Delivery:
- OFM 125 or OFM 255 pre-assembled:
- 1x mechanical filter cartridge
- Pollution indicator
- O-ring
- Fixing screws
- Operating instructions
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 95 and 135, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Specifications
Pfeiffer OFM 125, Mechanical Oil Filter, PK Z90 340 A / PKZ90340A
Pfeiffer OFM 125 Technical Data:
- Capacity mech. filter: 2.2 l
- Contact: Two-way contact
- For pump: DuoVane 125
- For pumping speed up to: 135 m³/h | 79.46 cfm | 2,250 l/min
- Grade of filtration: 10 µm
- Protection degree: IP65
- Switch-point: 2000 hPa | 1,500 Torr | 2,000 mbar
- Switching current V AC: 5 A
- Switching voltage: 250 V AC
- Weight approx.: 4.5 kg | 9.92 lb
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 95 and 135, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
