- Inlet Flange: DN 200 ISO-F
- Outlet Flange: DN 40 ISO-KF
- Pumping Speed: N2: 1250 l/s
- Compression Ratio: N2: > 1 x 108
Pfeiffer Vacuum HiPace 1200 C Turbo Pump with TC 1200 Controller, Corrosive, AC, DN 200 ISO-F, 2000014207 / PM P06 021 / PMP06021
Pfeiffer HiPace 1200 C Features:
- Powerful turbopump with a pumping speed of up to 1250 l/s for N2
- DN 200 ISO-F flange
- Integrated TC 1200 drive electronics with power supply
- Cooling: Water cooling
- Integrated sealing gas system with electric sealing gas valve 24 V DC
- Corrosive gas version
- Protection Class: IP54
- Interfaces: RS-485, Remote (Profibus/DeviceNet on request)
- Extensive accessories expand the range of applications
HiPace 1200 C / PM P06 021 Overview:
The Pfeiffer HiPace 1200 C / PMP06021 Series is a complete line of compact yet powerful turbo pumps featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
HiPace1200C Scope of Delivery:
- Turbopump with electronic drive unit and integrated power supply pack
- Protective cover for the high vacuum connection
- Protective cover for the fore-vacuum connection
- Mating plug for the "remote" connection on the TC 1200 (type-dependent)
- Mating plug for the "E74" connection on the TC 1200 (type-dependent)
- Mains power socket HAN 3A for mains connection of the turbopump
- Sealing gas valve (enclosed)
- Operating fluid F3 (50 ml) with syringe
- 2 eye bolts for transport
- 2 threaded hose nozzles with sealing ring for cooling water connection, G 1/4"
- Operating instructions
HiPace1200C Applications:
- Automotive and Transport
- Fish farming
- Medical
- Metallurgy
- R&D
- Semiconductor
- Thin Film Coating
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum HiPace 1200 C Turbo Pump with TC 1200 Controller, Corrosive, AC, DN 200 ISO-F, 2000014207 / PM P06 021 / PMP06021

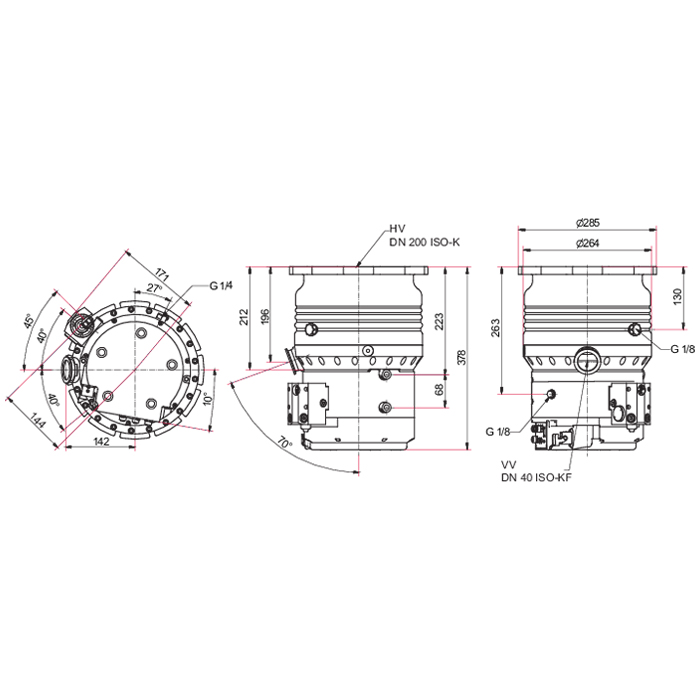

Pfeiffer HiPace 1200 C Technical Data:
| Bearing | Hybrid |
| Certification | Semi S2 compatible CSA UL TÜV |
| Compression ratio for Ar | 1 · 108 |
| Compression ratio for CF4 | 1 · 108 |
| Compression ratio for H2 | 6 · 103 |
| Compression ratio for He | 6 · 104 |
| Compression ratio for N2 | 1 · 108 |
| Connection flange | DN 200 ISO-F / DN 40 ISO-KF |
| Connection flange (in) | DN 200 ISO-F |
| Connection flange (out) | DN 40 ISO-KF |
| Cooling method | Water |
| Cooling water connection | In/Out: G 1/4'' |
| Cooling water flow | 100 l/h |
| Cooling water temperature | 15 – 35 °C | 59 – 95 °F | 288.15 – 308.15 K |
| Corrosive gas version | Yes |
| Current, max. | 10 A |
| Electronic drive unit | TC 1200 |
| Emission sound pressure level (EN ISO 2151) | 50 dB(A) |
| Fore-vacuum max. for N2 | 2 hPa | 1.5 Torr | 2 mbar |
| Gas throughput at 0.1 hPa HV pressure for Ar | 26 hPa·l/s |
| Gas throughput at 0.1 hPa HV pressure for CF4 | 30 hPa·l/s |
| Gas throughput at 0.1 hPa HV pressure for H2 | 8 hPa·l/s |
| Gas throughput at 0.1 hPa HV pressure for He | 15 hPa·l/s |
| Gas throughput at 0.1 hPa HV pressure for N2 | 26 hPa·l/s |
| Gas throughput at final rotational speed for Ar | 11 hPa·l/s |
| Gas throughput at final rotational speed for H2 | > 30 hPa·l/s |
| Gas throughput at final rotational speed for He | > 30 hPa·l/s |
| Gas throughput at final rotational speed for N2 | 20 hPa·l/s |
| Gas throughput at maximum rotation speed for CF4 | 12 hPa·l/s |
| I/O interfaces | RS-485, Remote |
| Input voltage(s) | 100 – 120 / 200 – 240 V AC (±10 %), 50/60 Hz |
| Integral leak rate | 1 · 10-8 Pa m³/s | 7.5 · 10-8 Torr l/s | 1 · 10-7 mbar l/s |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Mounting orientation | 0° (HV flange top) - 90° |
| Particle intake | Yes |
| Permissible radial magnetic field max. | 6 mT |
| Position of power supply pack | Integrated power supply pack |
| Power consumption max. | 1350 VA |
| Protection degree | IP54 |
| Pumping principle | Dry |
| Pumping speed | 3960 – 4500 m³/h | 2,330.86 – 2,648.7 cfm | 66,000.13 – 75,000.15 l/min |
| Pumping speed for Ar | 1200 l/s |
| Pumping speed for CF4 | 950 l/s |
| Pumping speed for H2 | 1100 l/s |
| Pumping speed for He | 1300 l/s |
| Pumping speed for N2 | 1250 l/s |
| Rotation speed ± 2 % | 37800 rpm | 37,800 min-1 |
| Rotation speed variable | 50 – 100 % |
| Run-up time | 2.5 min |
| Type of electronic drive unit installation | Integrated electronic drive unit |
| Ultimate pressure | 1 · 10-7 hPa | 7.5 · 10-8 Torr | 1 · 10-7 mbar |
| Venting connection | G 1/8" |
| Weight | 30.5 kg | 67.24 lb |
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum Hipace 1200 C PM P06 021 Data Sheet
Pfeiffer Vacuum Hipace 1200 C Turbo Pump Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
