Pfeiffer Adixen ASM 340 W, Helium Leak Detector Wet Version, Configurable I/O Interface Board, 100-130 V, 50/60 Hz JSVA00A2ML9A
Item#: PN19754 Mfr Part#: JSVA00A2ML9A Manufacturer: Pfeiffer Vacuum
Condition: Discontinued
Discontinued Pfeiffer Adixen ASM 340 W, Helium Leak Detector Wet Version with Configurable I/O Interface Board, 100-130 V, 50/60 Hz JSVA00A2ML9A

Features:
  • Detectable Gases: 4He, 3He, H2
  • Backing Pump Capacity: 250 l/min
  • Pumping Speed for Helium: 2.5 l/s
  • Utilizes DN 25 ISO-KF Inlet Flange

This product has been discontinued and is no longer available for sale
Item#: PN19754 Mfr Part#: JSVA00A2ML9A
Pfeiffer Adixen ASM 340 W, Helium Leak Detector Wet Version, Configurable I/O Interface Board, 100-130 V, 50/60 Hz JSVA00A2ML9A
Item#: PN19754 Mfr Part#: JSVA00A2ML9A Manufacturer: Pfeiffer Vacuum 24 months warranty

Pfeiffer Adixen ASM340Wet, Helium Leak Detector Wet Version with Configurable I/O Interface Board, 100-130 V, 50/60 Hz JSVA00A2ML9A



Adixen/Pfeiffer ASM340 Wet-Version Helium Leak Detector - Product Overview:


The Pfeiffer ASM 340 Wet Leak Detector is a high performance and very easy operation. Pfeiffer ASM 340 W guarantees high performance in a vacuum and sniffing leak detection. Adixen ASM 340W has various applications in small production environments for maintenance. The ASM 340-W has an effective pumping system and is available in two different versions dry or conventional. ASM 340 Wet is ultra-fast response time, short recovery time, easy operation. Pfeiffer ASM 340 W is the ideal solution for testing every day.

The Pfeiffer Adixen ASM 340W is a fully automatic, multi-purpose, compact tabletop helium/hydrogen wet (oil-lubricated pump) leak detector. The product consists of a Pfeiffer hybrid turbomolecular drag high-vacuum pump and a large integrated 11 CFM rotary vane roughing/backing pump. It is ideally suited for rapid repetitive and non-repetitive sequential testing applications requiring high-performance operation for both inboard vacuum testing and outboard sniffer testing.



Pfeiffer Adixen ASM 340 leak detector comes with the following parts:


  • Leak Detector
  • Tool Kit
  • Cover
  • Power Cable 115V
  • Oil A200
  • ASM Software
  • Funnel
  • Oil Drain Fitting
  • Manuals
  • Brochure

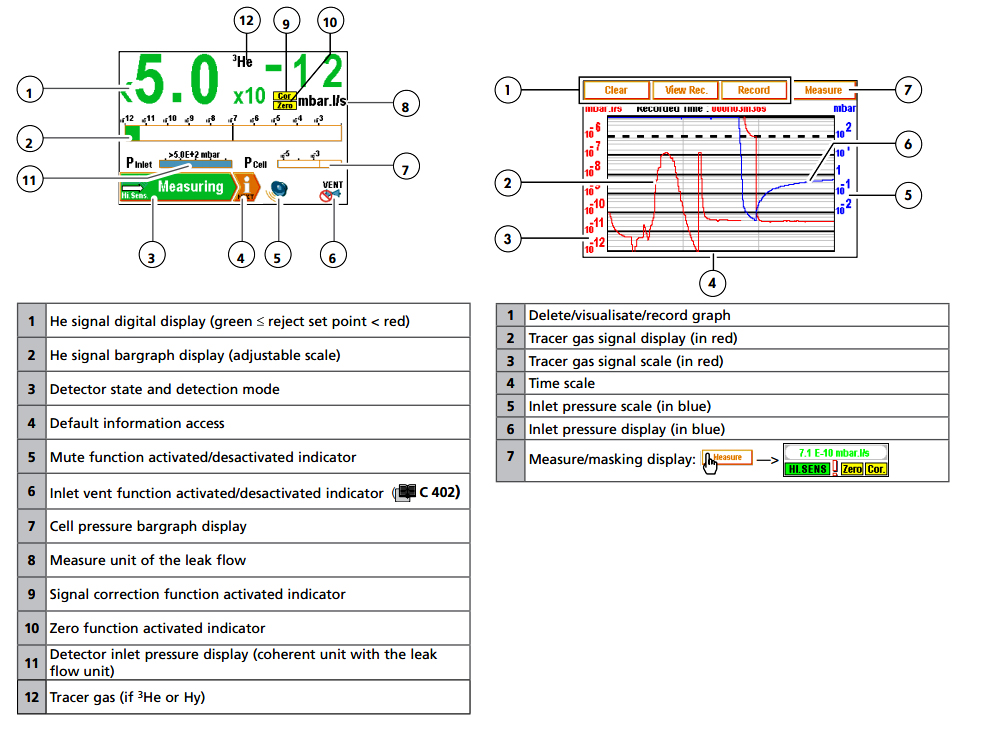

Pfeiffer/Adixen ASM 340 Control panel:


Pfeiffer/Adixen ASM 340 W Front panel, JSVA00A2ML9A



Adixen/Pfeiffer ASM340 W Features:


  • High sensitivity of 5*E-12 atm. cc/sec. helium for inboard vacuum testing and 5E-9 atm. cc/sec. helium for outboard sniffer testing.
  • Quantitative inlet port test pressure of up to 25 mbar (18,750 microns) and 100 mbar (75,000 microns) qualitative testing for massive leak identification.
  • High helium pumping speed at inlet of 2.5 L/S He. for quick response and recovery time.
  • High-resolution 3-mass (He4, He3, H2) 180-degree deflection mass spectrometer with VHS preamplifier (multi-channel electron multiplier) for added sensitivity, stability and repeatability.
  • Large, detachable color touch screen control/display panel with SD card for recording capability and user-friendly interface.
  • Pump Details: High-performance 53 L/S Pfeiffer hybrid turbo molecular drag pump with added superior compression ratio and low maintenance requirements.
  • Independent ramped dual yttria-coated iridium filaments concealed within analyzer, to enhance durability and reliability while lowering maintenance.
  • High roughing capacity of 11 CFM with reliable low RPM rotary vane mechanical pump for added performance and continuous long life operation.
  • Integrated helium-calibrated leak for fully automatic calibration with temperature and age compensation.
  • Wired or wireless remote control and sniffer probes available as accessories
  • Integrated selectable languages with digital voice for worldwide recognition. Available languages include: English, French, German, Italian, Spanish, Russian, Japanese, Chinese, Korean.



This ASM 340W system, as well as all other Pfeiffer Adixen helium leak detectors, is fully protected against power failure, air in-rushes, and incorrect operations/user error. Access to the 24-hour extended support program (ESP) is fully included and readily available to the user.



A Brief Description of the Science and Processes Involved in Helium Leak Detection:


Leak detection utilizing helium has a complex history dating back to the first half of the twentieth century and is used in a variety of processes and industries. Helium is used as the preferred tracer gas for eliminating leaks for a variety of reasons, including its non-flammability, non-toxicity, and inexpensiveness relative to other gases. Likewise, its inert state and small atomic size (helium has an atomic mass unit of 4 - second only to hydrogen, which has an AMU of 2) allows the gas to pass through leaks with ease. Unlike hydrogen however, helium is stable and non-explosive, providing a better alternative to be used in leak detection processes.

Utilizing the beneficial qualities of helium, a Helium Leak Detector pumps molecules of the gas into the device's analyzer cell through the use of vacuum pumps. The analyzer cell works on the principle of mass spectroscopy and measures the gas's partial pressure, displayed on the device's spectrometer. A higher reading indicates that a leak may be present, as represented by the quantity and concentration of helium molecules that have passed through a given space, as analyzed by the device. The leak detector converts this partial pressure of molecules into a flow rate. Helium leak detectors are known to be extremely precise and exhibit unparalleled accuracy in detecting leaks.

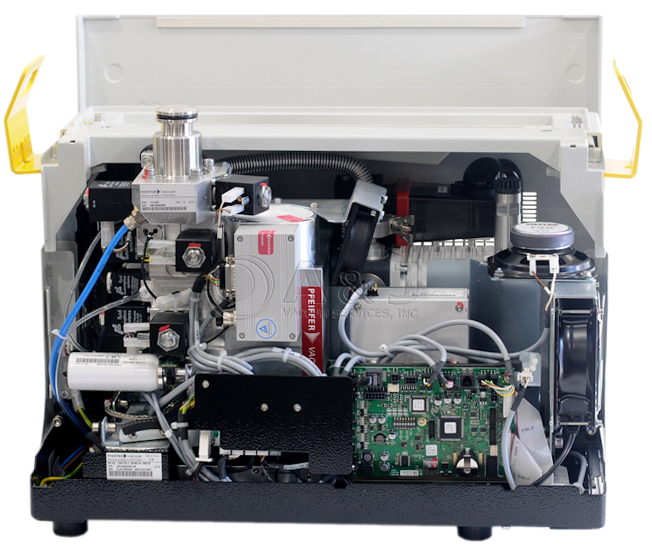

Adixen/Pfeiffer ASM 340 W Inside:


Adixen/Pfeiffer ASM 340 Wet Inside, JSVA00A2ML9A



Adixen/Pfeiffer ASM 340 W Dimensions:


Adixen/Pfeiffer ASM 340 Wet Dimension, JSVA00A2ML9A




Click Here for Pfeiffer/Adixen ASM 340 ASM340 ASM-340 W Operating


A&J Vacuum Services offers full repair/service of Pfeiffer Adixen 340W (Wet Version) Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

Pfeiffer Adixen ASM340Wet, Helium Leak Detector Wet Version, 100-130 V, 50/60 Hz JSVA00A2ML9A



Adixen/Pfeiffer ASM340 W Technical Data:


Backing Pump Capacity 15 m³/h | 8.83 cfm | 250 l/min
Detectable Gases 4He, 3He, H2
Dimensions (L x W x H) 547 x 375 x 393 mm | 21.54 x 14.76 x 15.47 inch
Flange Model (Inlet) DN 25 ISO-KF
I/O Interfaces Configurable 37 Pins I/O
Minimum Detectable Leak Rate for Helium (Sniffing Leak Detection) 5 * 10^[-10] Pa m³/s | 3.75 * 10^[-9] Torr l/s | 5 * 10^[-9] mbar l/s
Minimum Detectable Leak Rate for Helium (Vacuum Leak Detection) 5 * 10^[-13] Pa m³/s
Noise Level 54 dB(A)
Operating Temperature (Hard Vacuum Test) 0 – 45 °C
Operating Temperature (Sniffing Test) 0 – 35 °C
Power Consumption Max. 850 W
Protection Category IP20
Pumping Speed for He 2.5 l/s
Sound Pressure Level 54 dB(A)
Start-Up Time (20°C) Without Calibration ~ 3 min
Supply 110 – 130 V, 50/60 Hz
Test Method Vacuum and Sniffing Leak Detection
Warranty: Year(s) 2
Weight 56 kg | 123.46 lb

Click Here for Pfeiffer/Adixen ASM 340 ASM340 ASM-340 W Operating


A&J Vacuum Services offers full repair/service of Pfeiffer Adixen 340W (Wet Version) Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
