- Standardized DN 25 Inlet & Outlet Flanges
- Pumping speed at 60 Hz: 6 m³/h | 3.8 cfm
- Anti-Suckback System to Ensure Stability During Shutdowns
- Electrically-Insulated Handle to Facilitate Carrying
-
Overview
-
Specifications
-
Manuals
-
MFR Brochures
-
AJVS Brochures
-
Videos
-
Spare Parts
-
Accessories
-
Service & Repair
Pfeiffer Adixen 2005 SD Vacuum Pump Pascal Rotary Vane Single Phase, 90-132 V, 50/60 Hz, 205SDMLAM, 2005SD
Pfeiffer Adixen 2005 SD / 205SDMLAM Pascal Vacuum Pump - Product Overview:
The Pfeiffer Adixen 2005 SD Pascal Rotary Vane Pump incorporates a direct drive motor, creating a highly effective, compact machine. An electrically-insulated fold-away handle is attached for facility when carrying. The 2005 SD Pump anti-suck-back system ensures enhanced tightness of the pump during accidental or voluntary shutdowns. Additionally, the universal single-phase motor can be disassembled independently of the remainder of the pump, without the need to drain the oil case. With regard to the case, a vertical sight glass can be used to inspect the oil level easily while filling the tank, as well as during the operation of the pump. A 2005 SD gas ballast enables the pumping of condensable vapors.
The inlet and exhaust fittings of the Pfeiffer Adixen 2005 SD Vacuum Pump are standardized. They are fitted vertically on the pump; however, they can be re-positioned onto the horizontal openings if required to do so by operating conditions. The main replacement parts for Adixen Pascal 2005 SD are interchangeable. This enables faster assembly, disassembly, and replacement without altering the performance of the pump. Various accessories can be utilized and incorporated to adapt the pump to meet the requirements of your application.
Pfeiffer Vacuum 2005 SD Vacuum Pump Features:
- A direct drive motor, making them very compact.
- An electrically insulated fold away handle is used for easy carrying.
- An anti-suckback system ensures the tightness of the pump during accidental orvoluntary shutdowns.
- The universal three-phase or single phase motor can be disassembled independently of the rest of the pump, without the need to drain the oil case.
- On the oil case, a vertical sight glass can be used to inspect the oil level easily when filling the tank and during the operation of the pump.
- A gas ballast enables the pumping of condensable vapours
(except for C2 series). - A neutral gas purge is used to degas oil and dilute pumped gases on C2 series models.
- Second inlet port is available for instrumentation needs (model SDI).
Typical Applications for Pfeiffer Adixen 2005 SD Pump:
- Standard Vacuum Pump designed for wide range of applications
- R&D (Non Corrosive)
- Metallurgy, Centrifuges, etc.
- Electronics
Pfeiffer Rotary Vane Pumps - Technical Information:
Pfeiffer Vacuum manufactures some of the most widely-utilized varieties of advanced rotary vane used in a variety of industrial applications in the twenty-first century, including laboratory processes, chemical and process engineering, among others. These products are ideally utilized for the low-to-medium intensity vacuum range. Pfeiffer vacuum pumps are especially known for their durability and wide range of application.
A rotary vane pump functions as a displacement pump, creating a low-pulsation suction volume flow. Rotary vane pumps include an eccentrically-supported rotor with two rotating vanes, encased and revolving within a housing. The Pfeiffer Rotary Vane Pumps offered to our clients are oil-lubricated (wet-version pumps); these operating fluids help to enhance the insulation of pump components and ensure maximum durability and efficiency of the product.
We offer both single-stage and dual-stage Pfeiffer Rotary Vane Vacuum Pumps on our website. Single-stage pumps are the preferred choice for low-intensity vacuum applications, while dual-stage pumps are the recommended choices for the medium and upper intensity range of vacuum applications.
Product Dimensions:
L: 228 mm
A&J Vacuum services and repairs Pfeiffer Adixen 2005 SD Pascal, along with all other Pfeiffer Vacuum Rotary Vane Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum Adixen 2005SD Pascal Rotary Vane Pump, Single Phase, 90-132 V, 50/60 Hz, 205SDMLAM
Product Technical Data:
| Flange (in) | DN 25 ISO-KF |
| Flange (out) | DN 25 ISO-KF |
| Pumping speed at 50 Hz | 5 m³/h | 2.94 cfm | 83.33 l/min |
| Pumping speed at 60 Hz | 6 m³/h | 3.53 cfm | 100 l/min |
| Ultimate pressure | 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar |
| Ultimate pressure with gas ballast | 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2mbar |
| Ultimate pressure without gas ballast | 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar |
| Motor version | 1-ph motor |
| Mains requirement: voltage 50 Hz | 90 – 132 V |
| Mains requirement: voltage 60 Hz | 90 – 132 V |

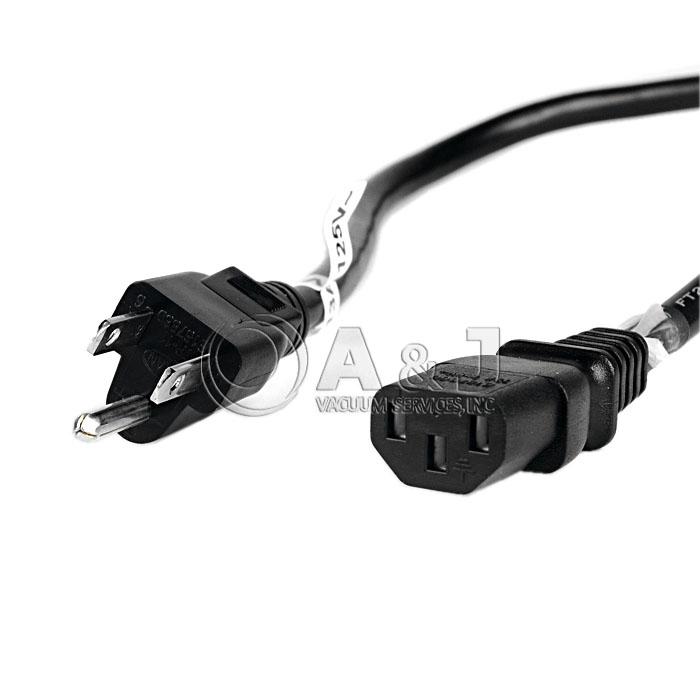

| Mains cable | Yes, US power cable |
| Operating fluid | Mineral oil |
| Rated power 50 Hz | 0.45 kW |
| Rated power 60 Hz | 0.55 kW |
| Protection category | IP43 |
| Weight | 25 kg | 55.12 lb |
A&J Vacuum services and repairs Pfeiffer Adixen 2005 SD Pascal, along with all other Pfeiffer Vacuum Rotary Vane Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Adixen Operating Instructions Pascal Series 2005, 2010, 2015, 2021 I SD 5-21m3/h
Pfeiffer Adixen Manual Instruction Pascal Series 2005, 2010, 2015, 2021 I, SD 5-21
AJVS_Vacuum_Pump_Turbo_Pump_Service_and_Repair.pdf
AJVS_Pfeiffer_Adixen_Pascal_2005_SD_Rotary_Vane_Pump_Service_and_Repair.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
